GE VOLUSON
i / VOLUSON
e
D
IRECTION KTI106052, REVISION 10 SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-53
8-19-9 Replacement of the Mounting Platform
8-19-9-1 Manpower
One person, 20 minutes
8-19-9-2 Tools
Phillips screwdriver 1
Torx screwdriver TX8
8-19-9-3 Preparation
1.) Power OFF/Shutdown the system as described in Section 3-6-3 on page 3-72.
2.) Disconnect and remove the Voluson i / Voluson e.
3.) Remove the Cover Bottom as described in Section 8-19-4 on page 8-48.
4.) Remove the Back Column Cover as described in Section 8-19-5 on page 8-49.
8-19-9-4 Mounting Platform - Removal Procedure
1.) Screw off the screw.
2.) Screw off the 4 Torx screws.
8-19-9-5 Mounting Platform - Installation Procedure
1.) Place the new Mounting Platform and fasten it with the screws.
2.) Mount the Back Column Cover as described in Section 8-19-5-5 on page 8-49.
3.) Mount the Cover Bottom as described in Section 8-19-4-5 on page 8-48.

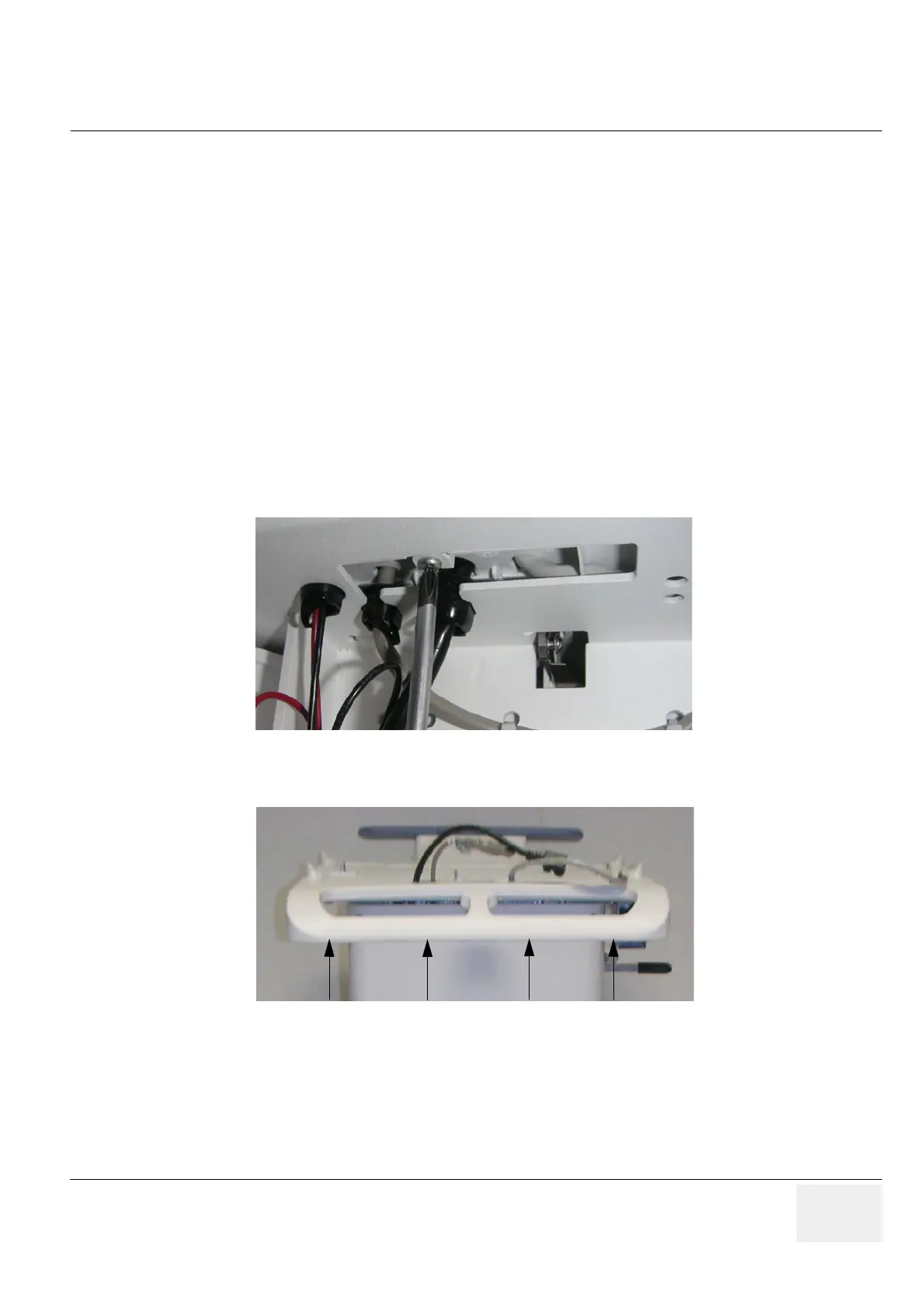

Figure 8-72 unscrew the screw
Figure 8-73 unscrew the Torx screws
