12-22

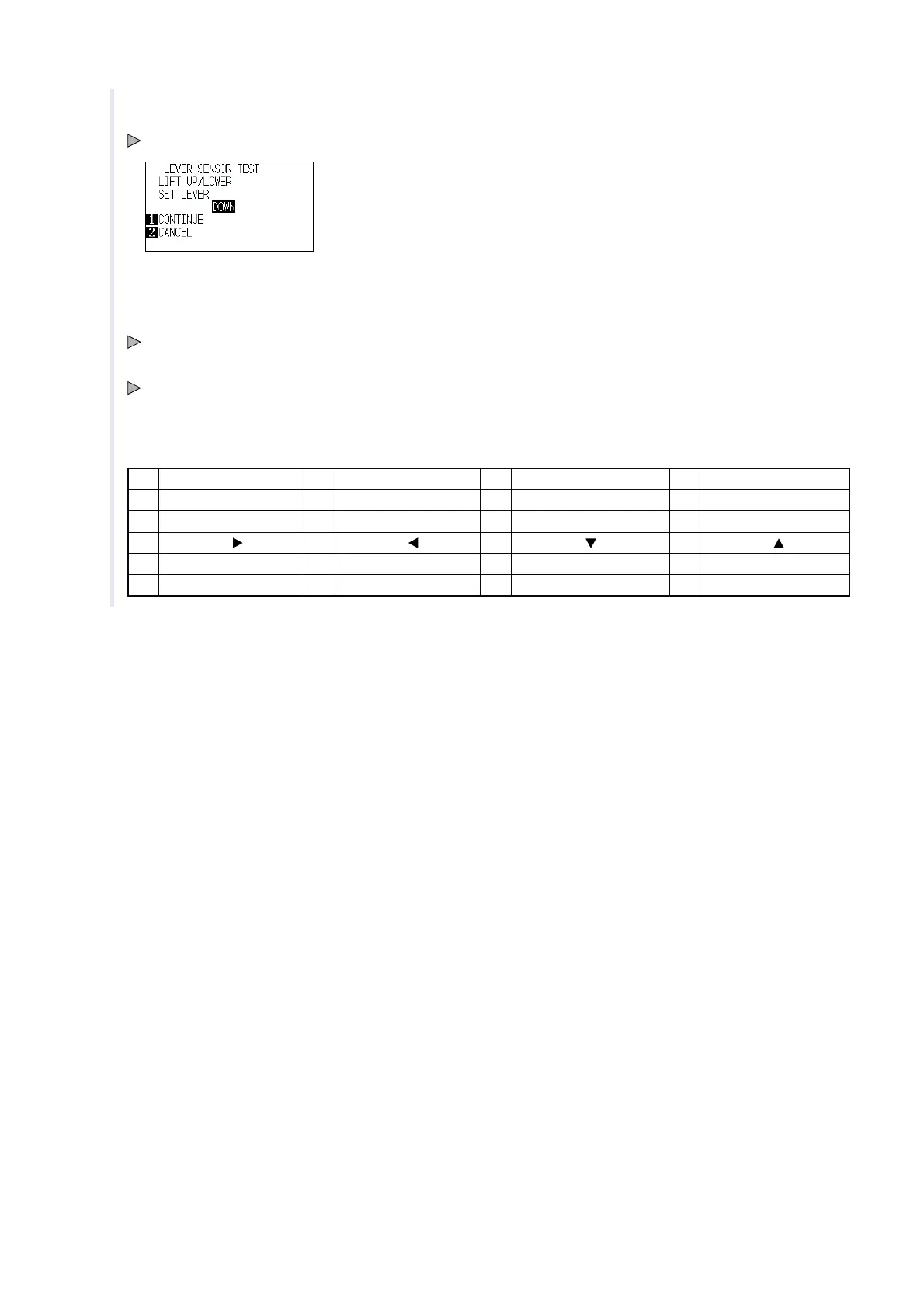

7 Press the [1] key (DONE).
Messages for testing are displayed on the screen.
8 Operate switches and sensors following the instructions on
the screen.
"NORMAL" will be displayed if the operation is detected correctly, and
next test will start.
It will return to TEST menu screen once all the test items are completed.
Test items are as following.
1Set lever sensor 2Home sensor 3Push roller sensor 4-X media sensor
5 +X media sensor 6 X motor signal 7 Y motor signal 8 Tool height signal
9 [1] key 10 [2] key 11 [3] key 12 [4] key
13 POSITION [
] key 14 POSITION [ ] key 15 POSITION [ ] key 16 POSITION [ ] key
17 [ENTER] key 18 [COND/TEST] key 19 [ORIGIN] key 20 [FAST] key
21 [SIMPLE] key 22 [COPY] key 23 [PAUSE/MENU] key
