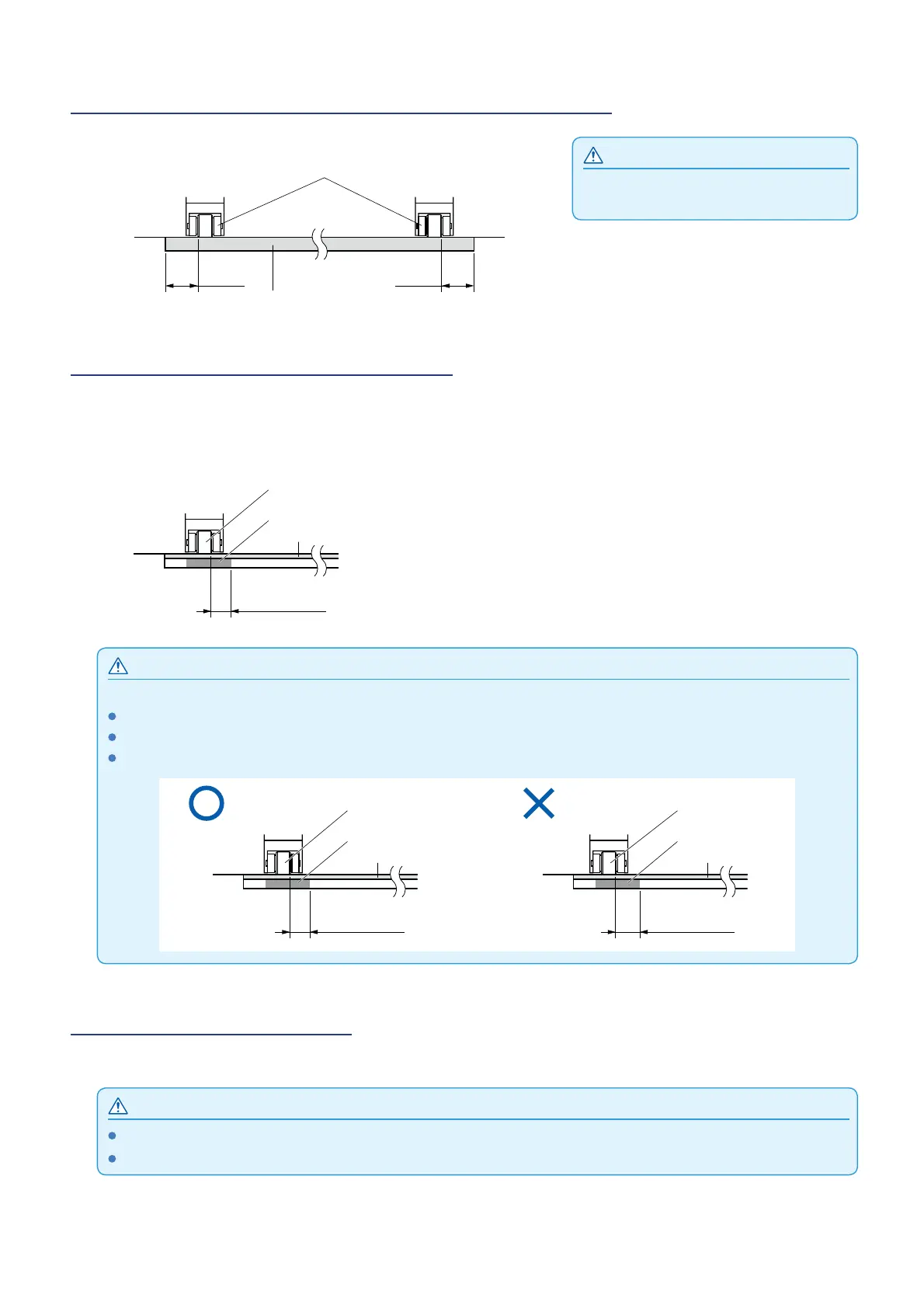

When Feeding Long-axis Media (at least 2 meters)
CAUTION
When setting on inside more than 30mm, cut
cross is not available.
Position the push rollers at least 5 mm inside the edges of the media.
Push roller
Media
5 mm 5 mm
To use a paper wider than 1,119 mm
Carefully set the position of the left edge of the push roller.
Set the right edge of the grit roller between 2 mm and 8 mm.
It's not possible to set the right edge of the grit roller to a size greater than 8 mm. (There is a stopper.)
Push roller
Grit roller
2 mm to 8 mm
Media
CAUTION
Notes on the left grit roller
The left grit roller is not available in all locations.
It's not possible to set the right edge of the grit roller to a size greater than 8 mm. (There is a stopper.)
Please set the push roller to the position between 2 mm and 8 mm from the right edge of the grit roller.
Push roller
Grit roller
8 mm or more
Media
Push roller
Grit roller
2 mm to 8 mm
Media
OK NG
For minimum width media
The CE6000-120AP can take media of 594 mm (A1 size) or more.
CAUTION
The media must be at least 125 mm in length in media feed direction.
The media must always be positioned over the media sensor.
