8. TROUBLESHOOTING
8.5.3 Printing the Test Pattern
Printaself-testpatterntochecktheoperationoftheplotter.
Operation
(1) SetapaperlargerthanA3size.
(2) Setthepentooltothetoolcarriageandselecttheconditionwherethepentoolisset.

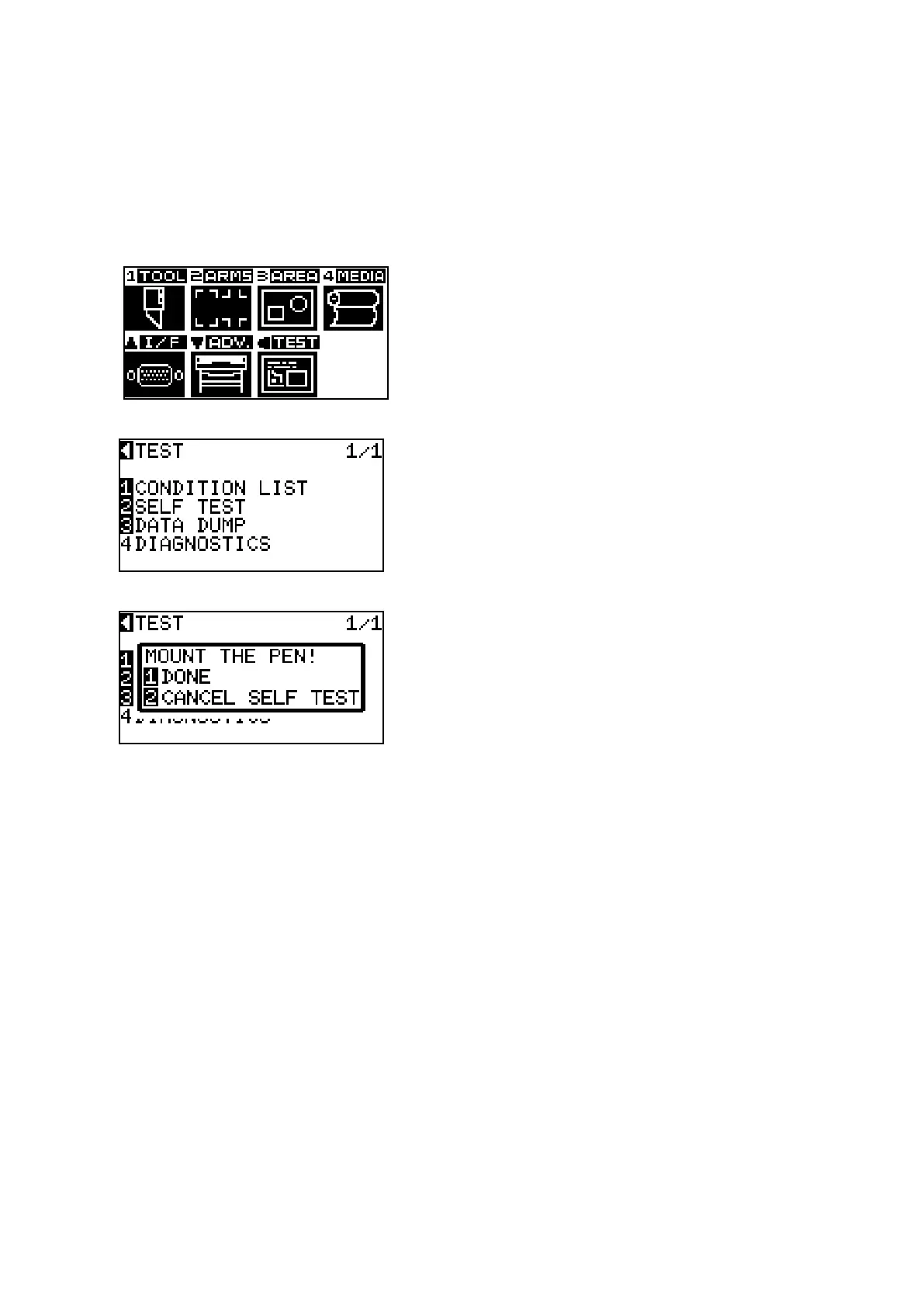

(3) Pressthe[MENU]keytodisplaythemenubelow
.
(4) PressthePOSITION(t)key(TEST)todisplaythemenubelow.
(5) Pressthe[2]key(SELFTEST)todisplaythemenubelow.
(6) Conrmthatthepentoolisset.
(7) Pressthe[1]key(DONE)toprintthetestpattern.
(8) Turnthepowerofftostoptheprinting.
