2. PARTS NAMES and FUNCTIONS
2.2 Assembling

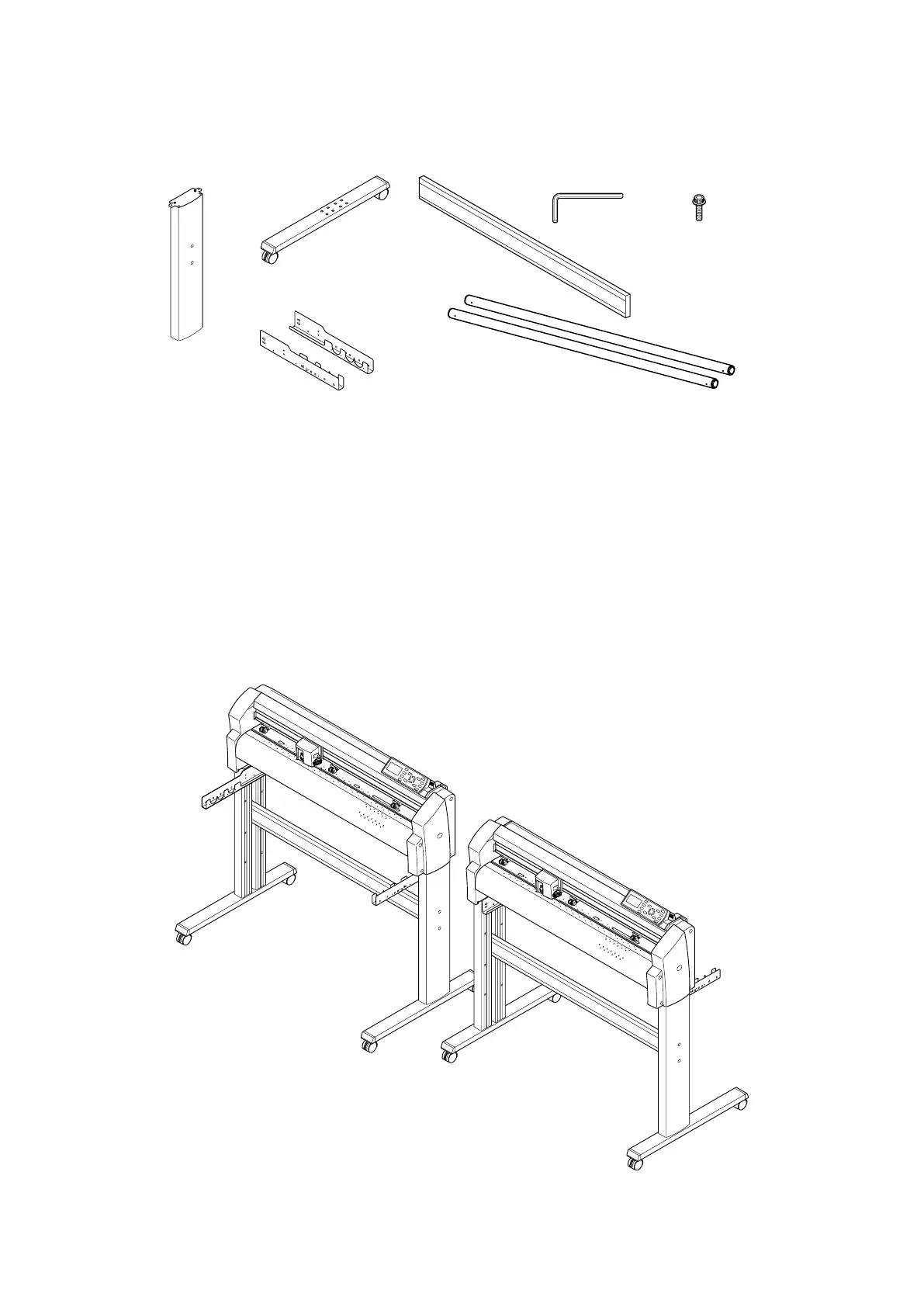

Assemblethestand.
Stand side bar x 2 Base assembly x 2 Center bar x 1 Allen wrench
(for M5 screws) x 1
Socket head cap screw
(M5) x 20
Media stocker x 2
Stock roller x 2
Front Loading and Rear Loading
Itisnecessarytosettheloadingsettingsfromtheplottercontrolpaneldependingontheattachment
direction.
Defaultfactorysetupissetasrearloading.
Itisrecommendedtouseasrearloading.
Ifyoudesiretoloadthematerialfromthefront,itisalsopossibletousethefrontloading.
Usetheplotterwithenoughspacebehindinthiscase.
Also,beawarethatcontinuouscuttingwithcrosscutisnotpossible.
Assembling the Stand
Themountingdirectionisdifferentforthefrontloadingandtherearloadingmodels.
<Front loading>
<Rear loading>
