GRAPHTEC FC8000-75 - X-Drive Belt Tension Adjustment

FC8000-UM-251-9370 7-4
7. ADJUSTMENT
7.2.3 X-Drive Belt Tension Adjustment
How to adjust the X-Drive belt tension
(1) Detachtherightsidecover(seeSubsection6.1.1).
(2) LoosenthethreeM3L6bindingheadscrewsthatholdtheX-motor.

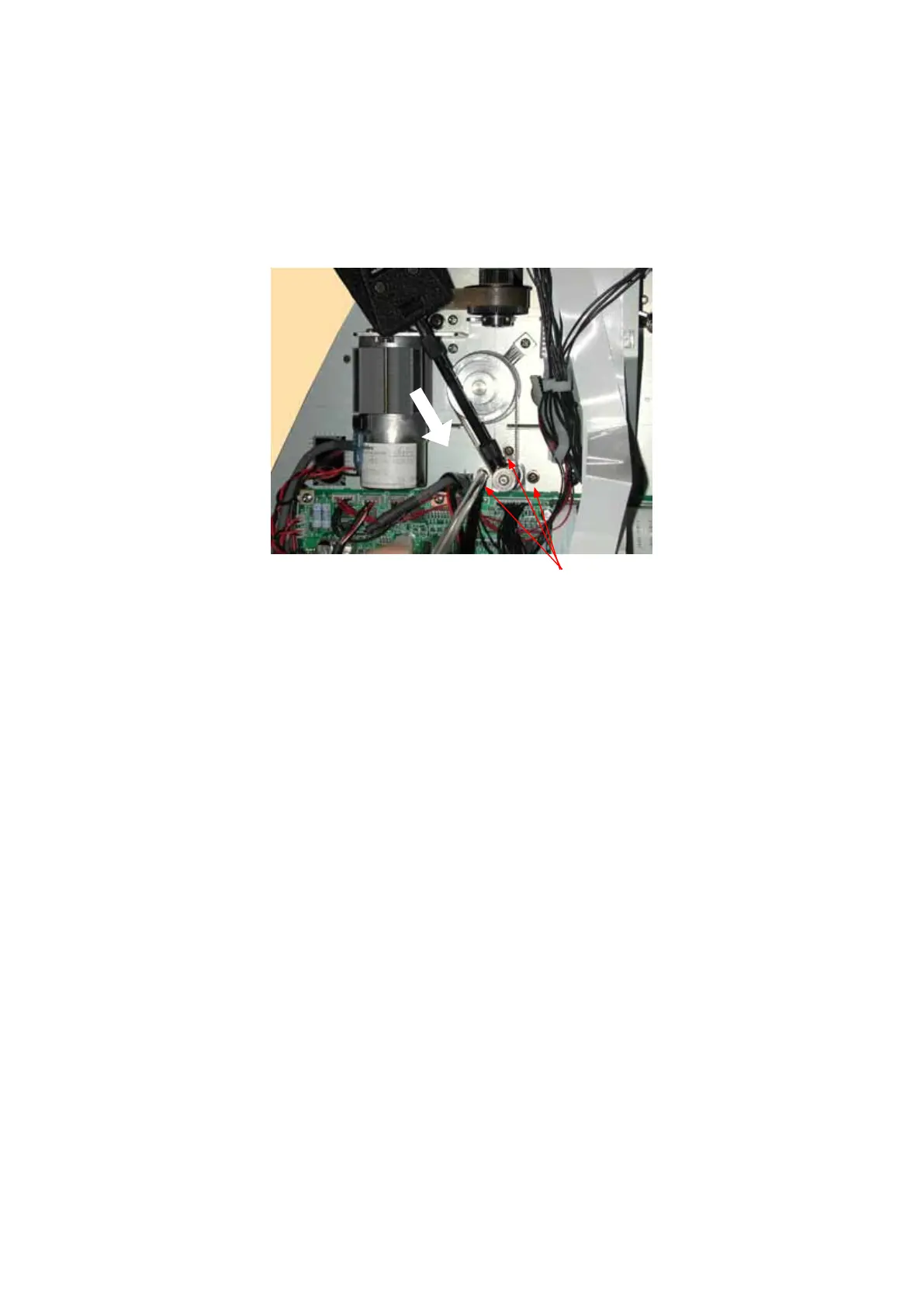

(3) UsetheforcegaugetopushtheX-drivemotorpulleyangewitha800gforceasshowninthegure
below.
M3L6bindingheadscrew
(4) TightenthemountingscrewsthatholdtheX-motor.
(5) SpreadasuitablequantityoftheShinetusilicongreaseG501ontheX-motorpulley.
(6) MovetheX-drivepulleyandcheckthetensionoftheX-drivebelt.
(7) Reattachtherightsidecover.
