GRAPHTEC FC8000-75 - Cross Cutter

FC8000-UM-251-9370 9-7
9. PARTS LIST
9.5 Cross Cutter
No. PartNo. Description Q’ty Remarks Rank
1 621403110 Bracket,CrossCutter 1 D
2 621263453 Shaft,CrossCutter 1 D
3 621263460 Latch,TL-294 1 B
4 621403120 Arm,Catch 1 D
5 621403100 CrossCutterBase 1 D
6 380265331 Spring,E-533 1 C
7 621113591 ThumbScrew,L10 1 B
8 CT01H CrossCutterBlade,StandardType 1 Consumptiongoods D
CT02U CrossCutterBlade,HighdurabilityType 1 Consumptiongoods D

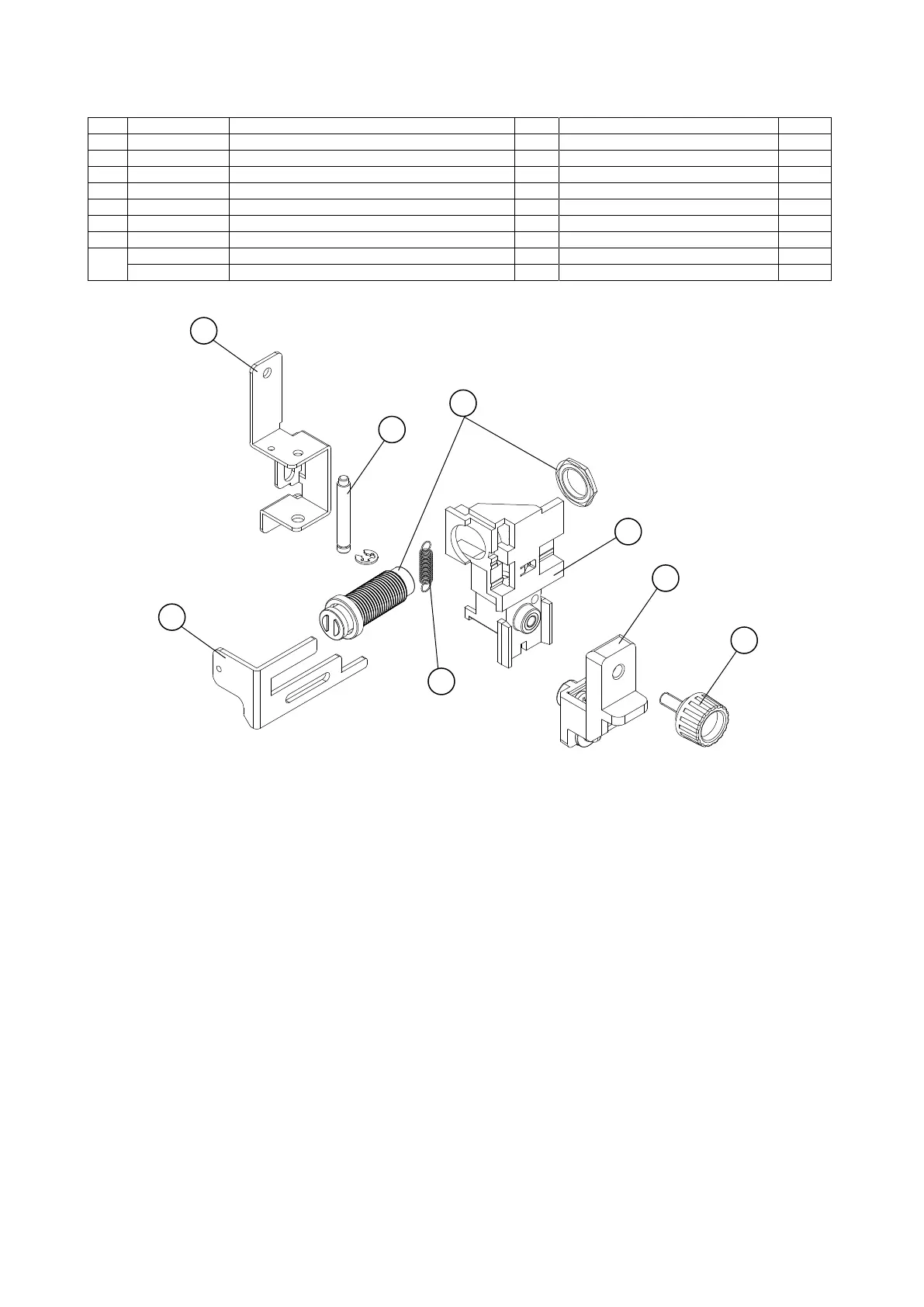

Cross Cutter
1
4
2
7
5
8
6
3
