7. ADJUSTMENT
7.3.10 Adjusting the Offset of the Auto-Registration Mark Sensor
IfyoureplacetheAuto-registrationmarksensororthemainboard,youneedtoadjusttheoffset.
How to adjust the auto-registration mark sensor
(1) Entertheadjustmentmenu(seeSection7.3.4).
(2) LoadanA2orlargersizesheetofpaperintheplotter.Thepapercolormustbewhite,anditis
recommendedthathigh-qualitypapermadeforink-jetprintersbeused.
(3) Mountabertippeninthepenholder.

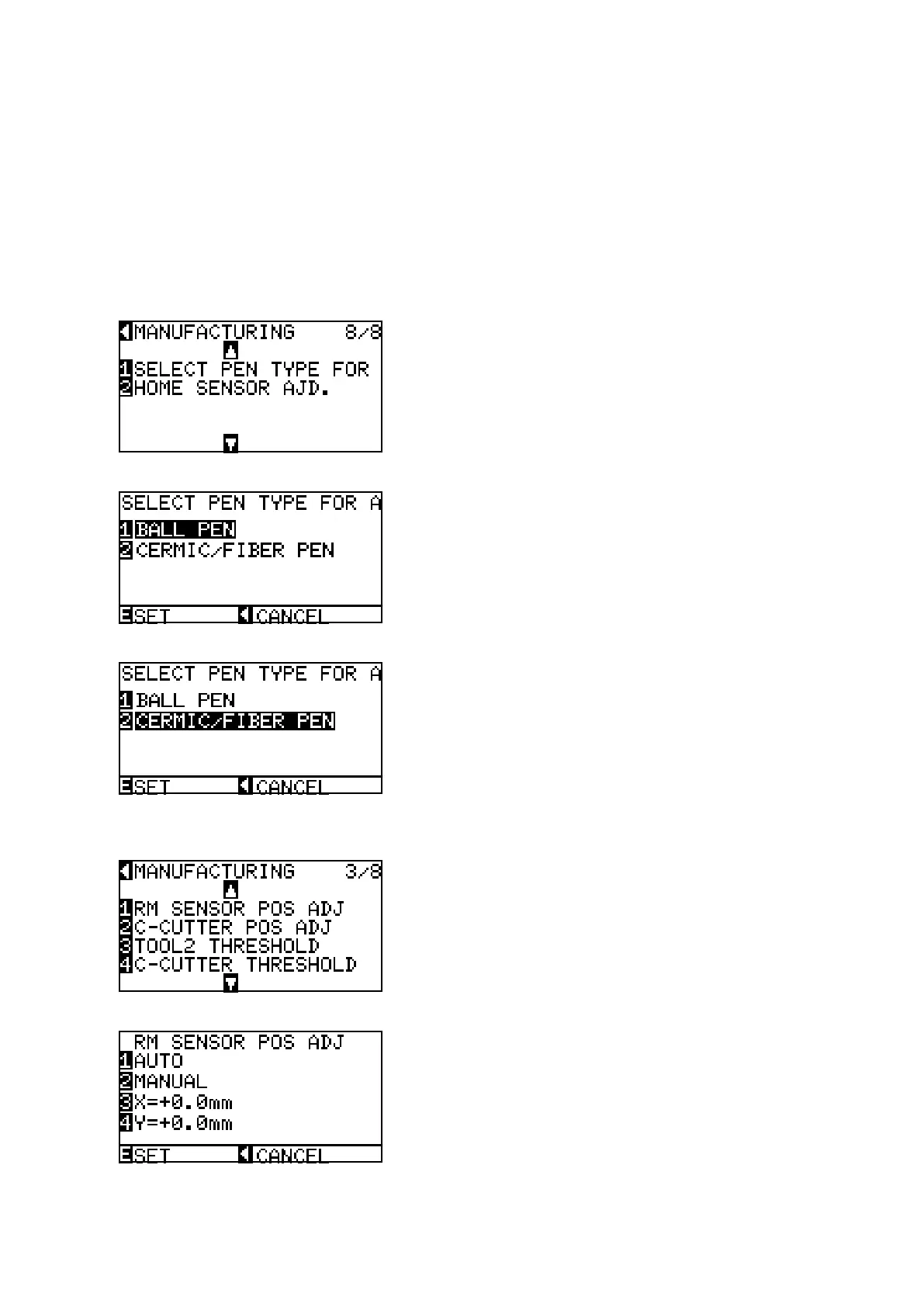

(4) PresstheUParroworDownarrowkeyuntilthemenushownbelowisdisplayed.
(5) PresstheF1keytodisplaythemenushownbelow.
(6) PresstheF2keytoselectthebertippen.
(7) PresstheENTERkeytosetthebertippen.
(8) PresstheUParroworDownarrowkeyuntilthemenushownbelowisdisplayed.
(9) PresstheF1keytodisplaythemenushownbelow.
