GRAPHTEC FC8000-75 - Y Slider

FC8000-UM-251-9370 9-12
9. PARTS LIST

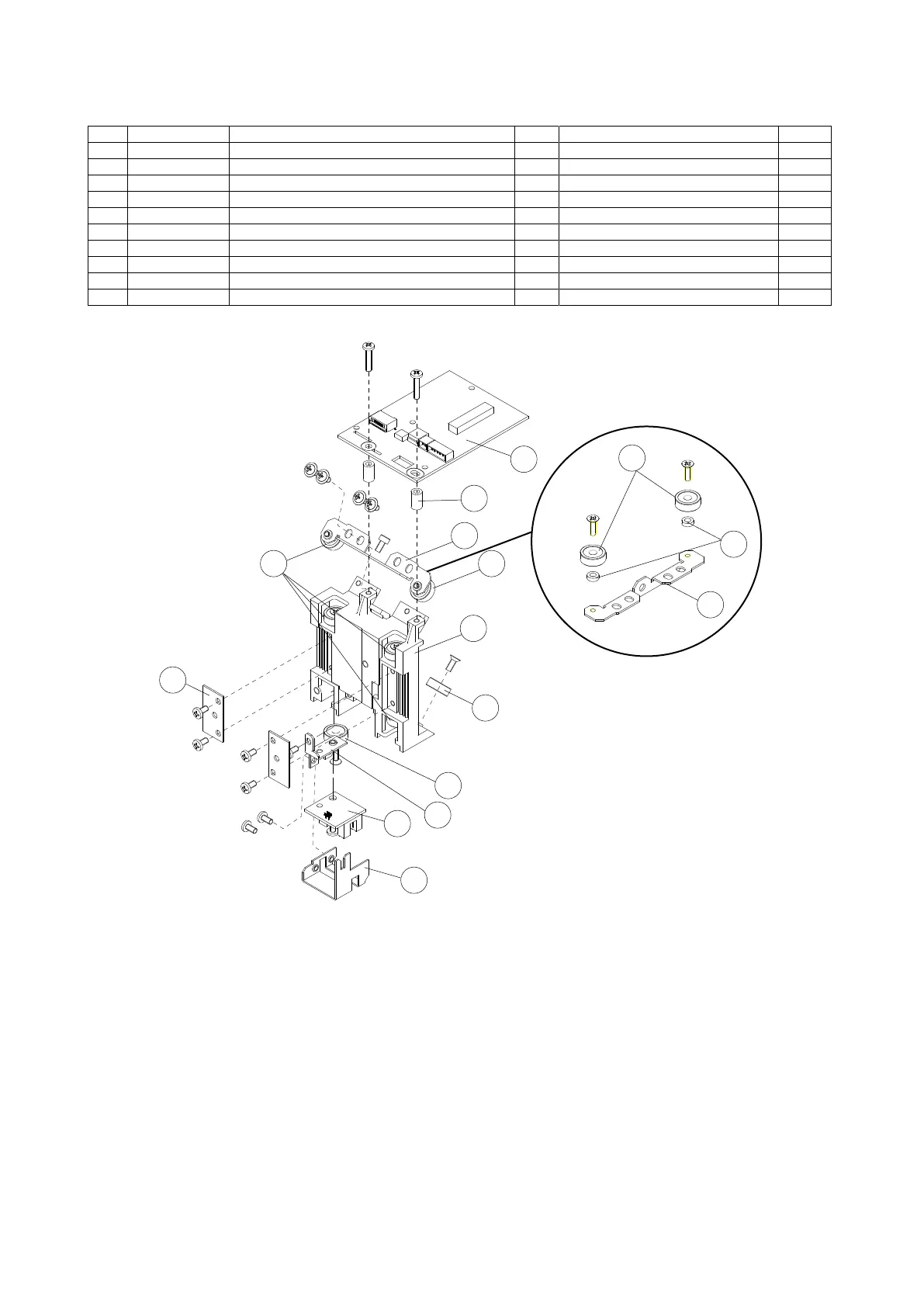

9.8 Y Slider
No. PartNo. Description Q’ty Remarks Rank
1 621173160 YSensorGuard 1 C
2 792800703 PinchRollerSensorBoard 1 A
3 621173150 YSensorBracketB 1 C
4 095013010 RollerB13 8 C
5 621403300 YSlider 1 C
6 621183410 RollerTensionPlateL 1 C
7 392330200 SpacerC320 2 ForFC8000-130,160only C
8 792800702 PenRelayBoard 1 C
9 692123320 YBeltFixingPlateL-51 2 C
10 392230020 SpacerCE302 2 C
Y Slider
1
2
3
4
4
9
5
4
4
6
6
10
7
8
4
