GRAPHTEC FC8000-75 - Adjusting the Distance Accuracy

FC8000-UM-251-9370 7-16
7. ADJUSTMENT
7.3.8 Adjusting the Distance Accuracy
Thisadjustmentwillsetthedistanceaccuracy.
Ifyoureplacethemainboard,usethefollowingproceduretoinputtherecordedadjustmentvalues.
Ifyoureplacethedriveroller,youmustadjustthedistanceaccuracyusingthefollowingprocedure.
How to adjust the distance accuracy
(1) Entertheadjustmentmenu(seeSection7.3.4).
(2) LoadanA2orlargersizesheetofpaperintheplotter.
(3) Mountabertippeninthepenholder.

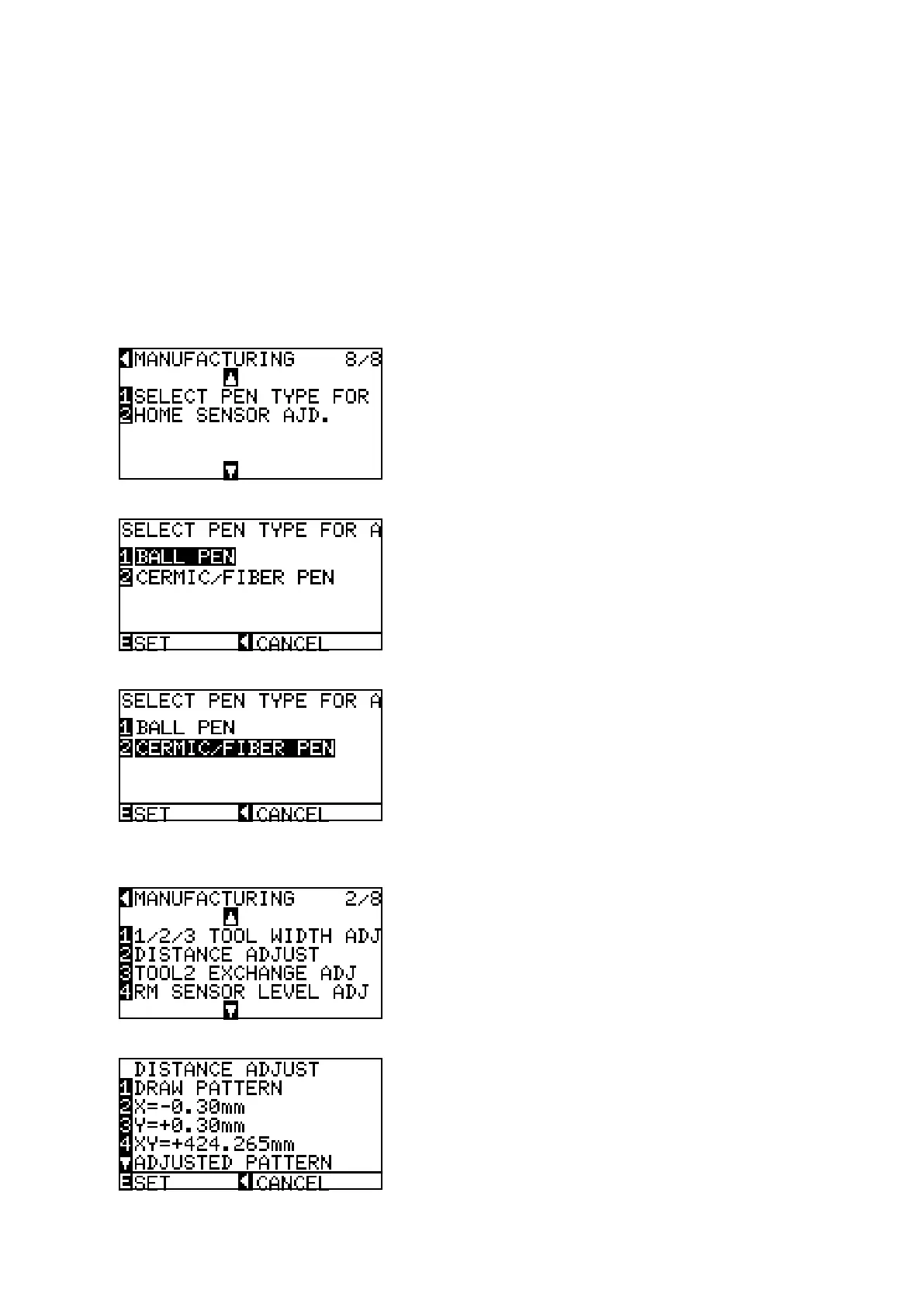

(4) PresstheUParroworDownarrowkeyuntilthemenushownbelowisdisplayed.
(5) PresstheF1keytodisplaythemenushownbelow.
(6) PresstheF2keytoselectthebertippenthemenushownbelow.
(7) PresstheENTERkeytosetthebertippen.
(8) PresstheUParroworDownarrowkeyuntilthemenushownbelowisdisplayed.
(9) PresstheF2keytodisplaythemenushownbelow.
