GRAPHTEC FC8000-75 - How to Replace the Front Media Sensor

FC8000-UM-251-9370 6-10
6. DISASSEMBLY AND REASSEMBLY
6.2.2 How to Replace the Front Media Sensor
How to detach the front media sensor
(1) Detachthefrontwritingpanel(seeSubsection6.1.8).

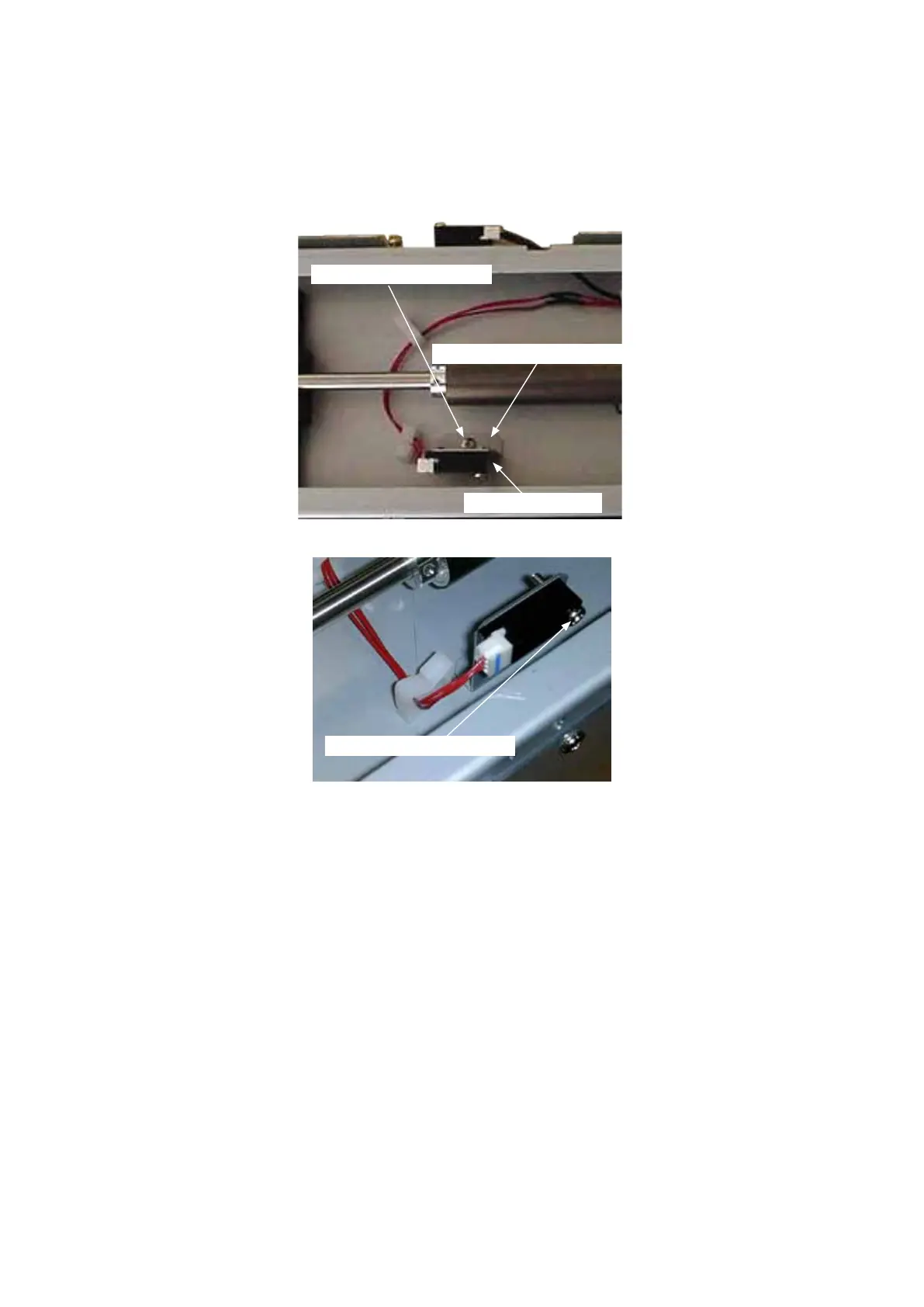

(2) RemovetheM3L6bindingheadscrewattachingthefrontmediasensorbracket.
Frontmediasensorbracket
M3L6bindingheadscrew
Frontmediasensor
(3) RemovetheM3L10bindingheadscrewattachingthefrontmediasensor.
M3L10bindingheadscrew
(4) Disconnectthesensorfromtheconnector.
How to reinstall the front media sensor
(1) Reattachthefrontmediasensorinthereverseorderinwhichitwasdetached.
