GRAPHTEC FC8000-75 - Y-Drive Belt Tension Adjustment

FC8000-UM-251-9370 7-3
7. ADJUSTMENT
7.2.2 Y-Drive Belt Tension Adjustment
How to adjust the Y-Drive belt tension
(1) Detachtherightsidecover(seeSubsection6.1.1).
(2) LoosenthefourM3L6bindingheadscrewsthatholdtheY-motor.

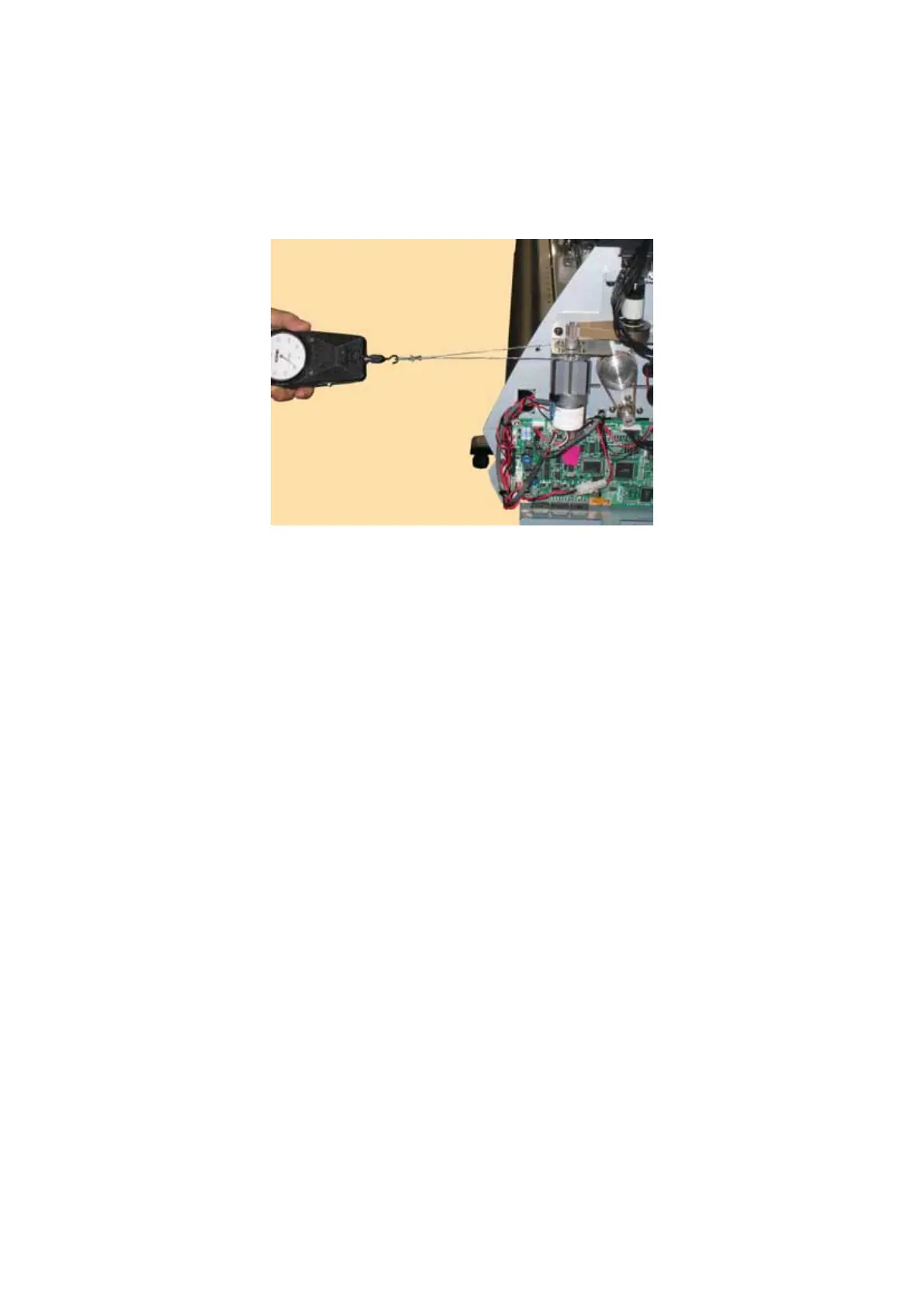

(3) UsetheforcegaugetopulltheY-drivemotorpulleyangewitha2.25kgforce.
(4) TightenthefourM3L6bindingheadscrewsthatholdtheY-motor.
(5) SpreadasuitablequantityoftheShinetusilicongreaseG501ontheY-motorpulley.
(6) MovethepenblockandcheckthetensionoftheY-drivebelt.
(7) Reattachtherightsidecover.
