GRAPHTEC FC8000-75 - Adjusting the Cross Cutter Home Position

FC8000-UM-251-9370 7-22
7. ADJUSTMENT
7.3.11 Adjusting the Cross Cutter Home Position
Thisadjustmentwillsetthecrosscutterhomepositionvalue.
Ifyoureplacethemainboard,usethefollowingproceduretoinputtherecordedadjustmentvalues.
How to adjust the cross cutter home position
(1) Entertheadjustmentmenu(seeSection7.3.4).
(2) LoadanA3orlargersizesheetofpaperintheplotter.Thepapermustcoverthefrontandrearmedia
sensors.
(3) Lowerthemediasetlevertoraisethepinchrollers,andthenraisethemediasetlevertodetectthe
papersize.

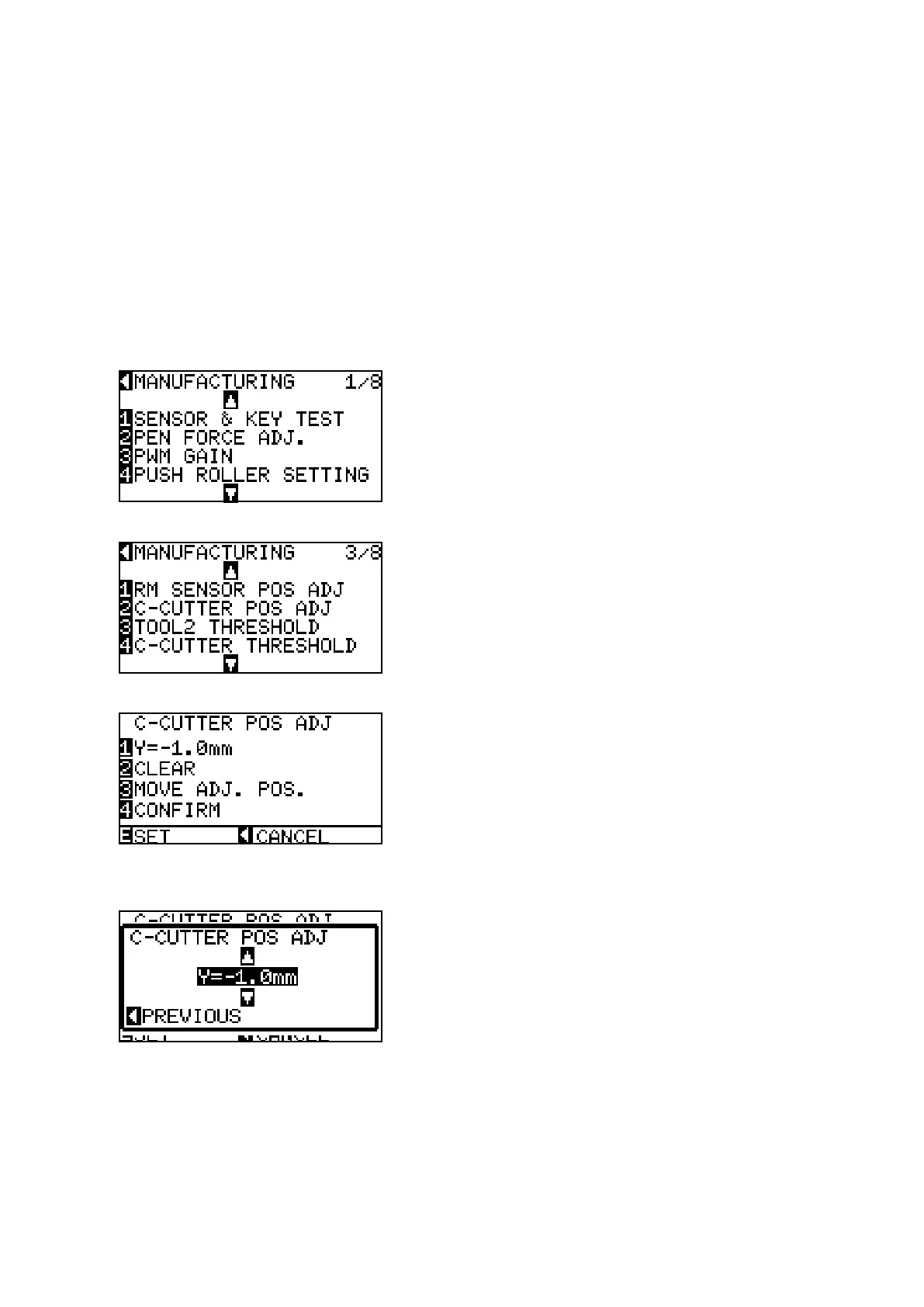

Themenushownbelowisdisplayedafterthemediasetleverisraised.
(4) Pressthedownarrowkeyuntilthemenushownbelowisdisplayed.
(5) PresstheF2keytodisplaythemenushownbelow.
(6) PresstheF1keytodisplaythemenushownbelow.
Thepenheadmovestotheleftsideofthecrosscutterhomeposition.
(7) Conrmthegapbetweenthecrosscutterdogandthecrosscutterreleaseplate.
