GRAPHTEC FC8000-75 - Page 126

FC8000-UM-251-9370 9-11

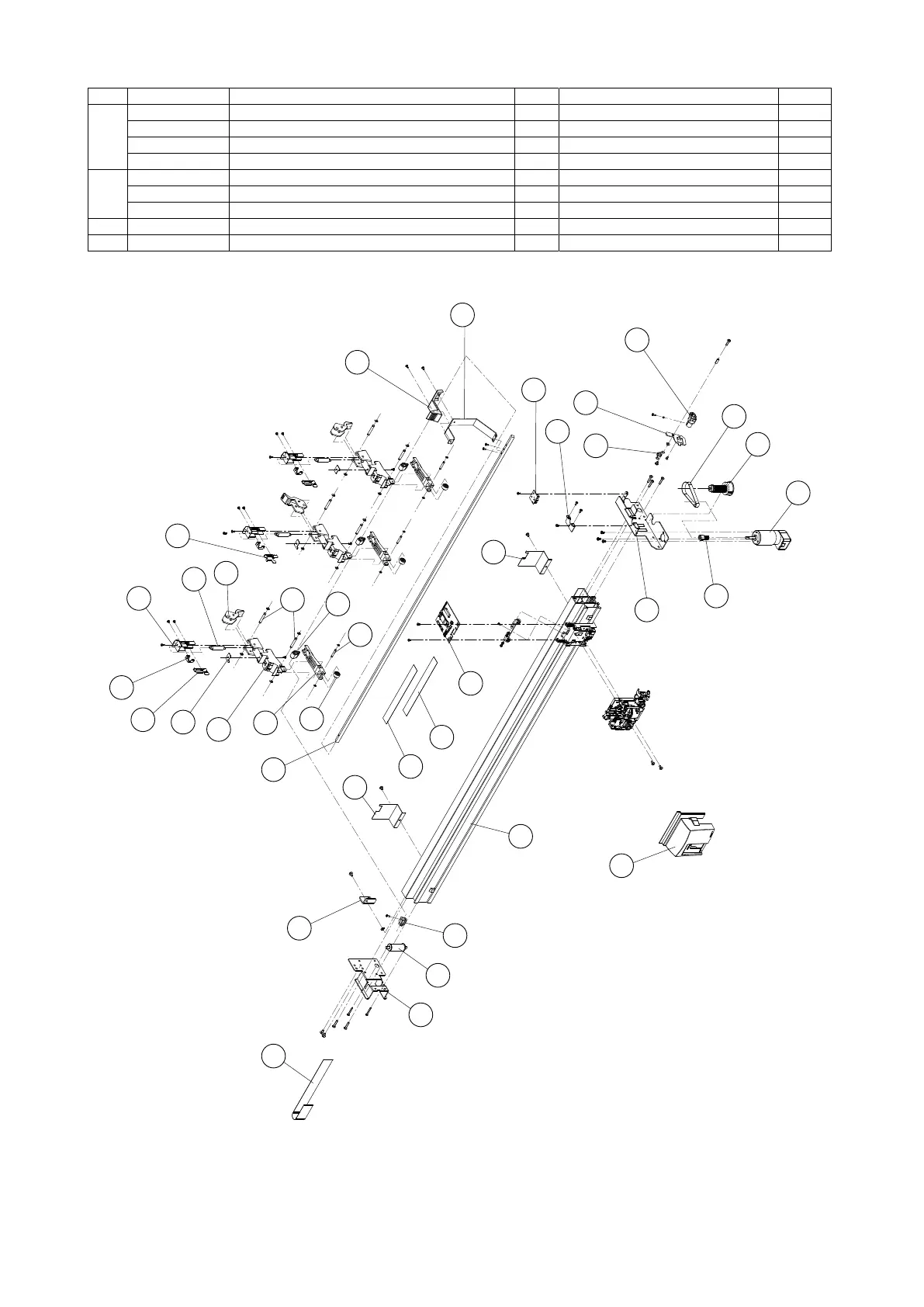

9. PARTS LIST
No. PartNo. Description Q’ty Remarks Rank
34 692140330 YFlexibleCable,FPC707103 1 FC8000-60/75 A
692140340 YFlexibleCable,FPC707104 1 FC8000-100 A
692140350 YFlexibleCable,FPC707105 1 FC8000-130 A
692140360 YFlexibleCable,FPC707106 1 FC8000-160 A
35 621271250 FlexibleCableReinforcementBracket100 1 FC8000-100 C
621281250 FlexibleCableReinforcementBracket130 1 FC8000-130 C
621291250 FlexibleCableReinforcementBracket160 1 FC8000-160 C
36 792800702 PenRelayBoard 1 A
37 621403090 PenCarriageCover 1 C
Y Rail
1
3
4
5
13
6
9
10
12
7
11
11
8
14
28
29
30
31
32
33
37
34
35
36
17
20
21
26
25
15
16
18
22
23
27
24
19
2
