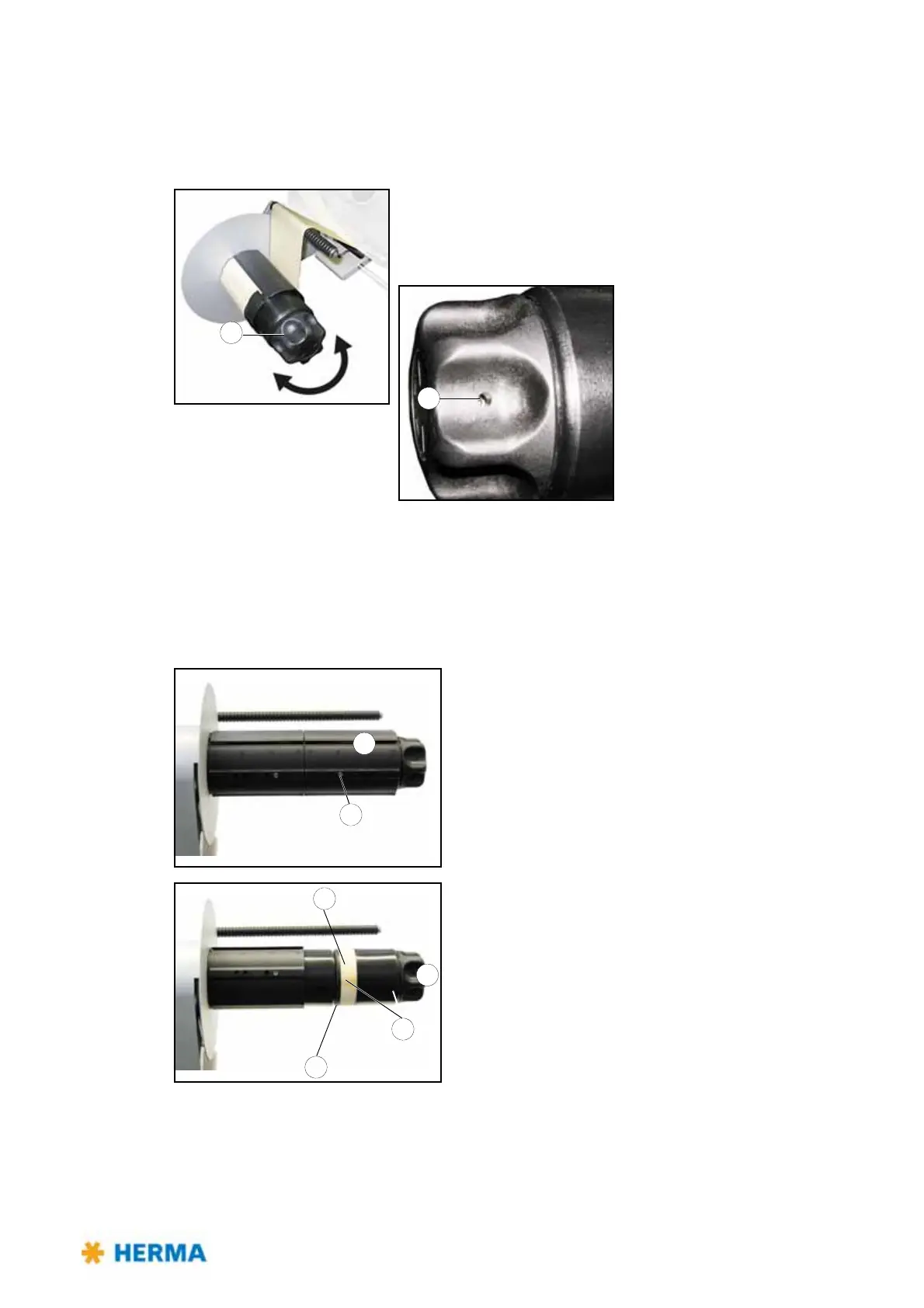

Replacing the handle
1
If after a very long time of use clamping of the backing paper with handle 1 does not function properly
anymore proceed as follows when preplacing a worn handle:
> Turn handle 1
completely to the left (maximum of five steps) to
unclamp the unit and make screw 10 accessible.
Loosen screw 10 (do not remove!), retract the handle, insert new
handle and fasten screw 10 afterwards.
Replacing the tension rings
2
12
If after a very long time of use tension rings 11 are worn proceed as follows when preplacing the worn
rings (example with constructional width 24):
> Remove sleeve 2
after removing screw 12.
13
1
11
15
> Remove handle 1 as described above („Replacing the
handle“).
> Pull off parts 13.
10
