7.4 Saving Operations
107
89
7

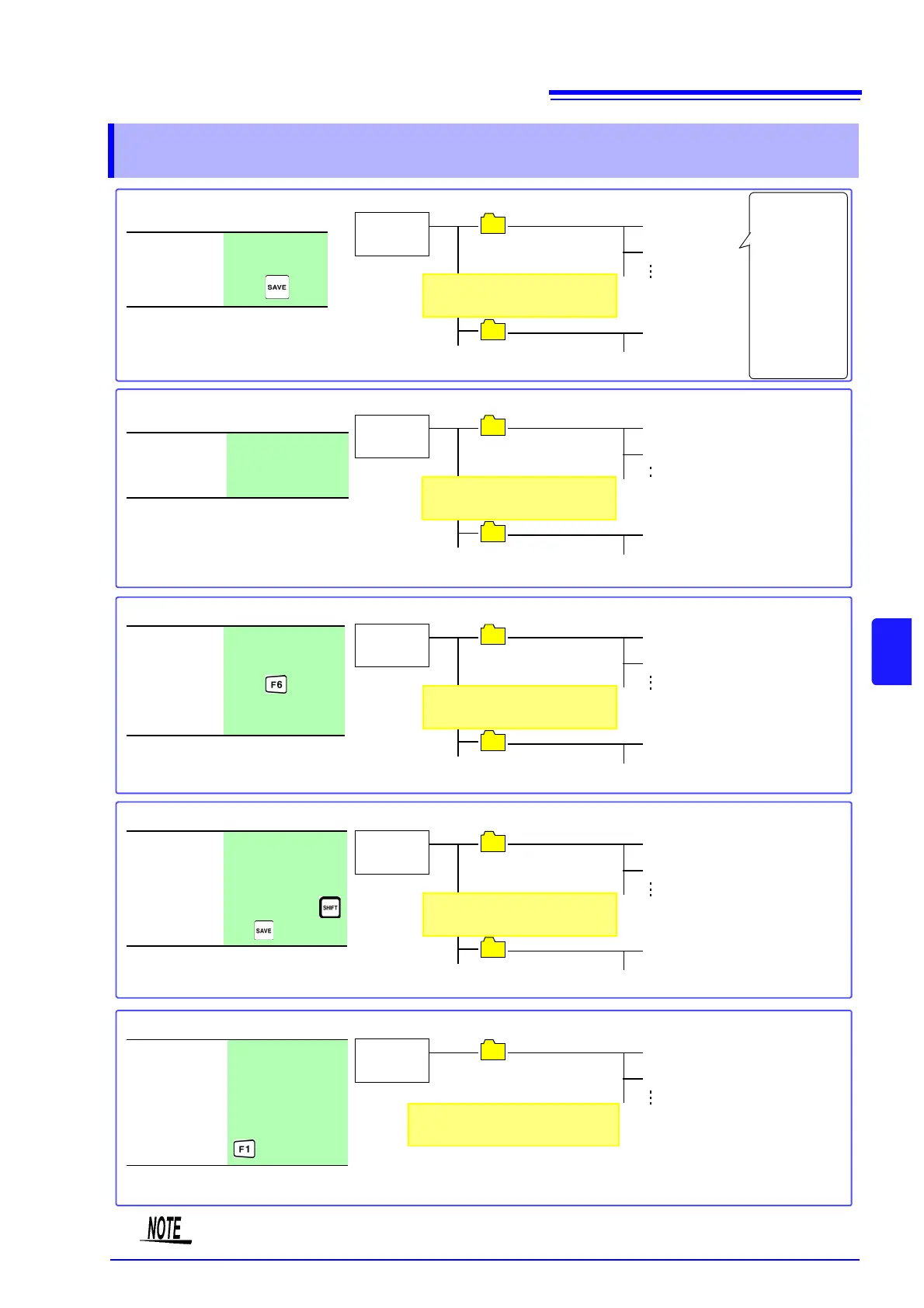

Chapter 7 Data Saving and File Operations
7.4 Saving Operations
Save destination CF card
USB flash drive
Saving method
Press .
HI3390
(or any other folder)
M3390000.CSV
M3390001.CSV
When 1,000 files have
been created, a new folder is created.
Up to 1,000 files
Manual Saving (p. 108)
M3390000.CSV
• When the storage media is full, saving stops.
Storage me-
dia root folder
Files are named M3390000 to
M3390999.
A new file is cre-
ated when any
of the following
are changed:
Save
destination
folder
Wiring mode
Measurement
objects to be
saved
Save destination CF card
Saving method
Automatically,
according to timing
control settings
HI3390
(or any other folder)
11190000.CSV
11190100.CSV
When saving more than 100
files in a day, a new folder is created.
Up to 100 files per day (the file name
is changed each day, so continuous
saving is supported)
Auto-saving (p. 110)
11190000.CSV
• When an auto-saved file exceeds 100 MB, a new file is
created and saving continues.
• Up to 100 files per day can also be saved to the root folder.
• When the storage media is full, saving stops.
Files are named MMDD0000 to
MMDD9900.
CF card root
Save destination CF card
USB flash drive
Saving method
Press on the
[Wave + Noise] page
of the Setting screen
HI3390
(or any other folder)
W3390000.CSV
W3390001.CSV
When 1,000 files have
been created, a new folder is created.
Up to 1,000 files
Waveform Data Saving (p. 114)
W3390000.CSV
• When the storage media is full, saving stops.
Files are named W3390000 to
W3390999.
Storage me-
dia root folder
Save destination CF card
USB flash drive
Saving method
Display the screen to
save, and press
and .
HI3390
(or any other folder)
When 1,000 files have
been created, a new folder is created.
Up to 1,000 files
Screen Capture Image Saving (p. 114)
W3390000.CSV
• When the storage media is full, saving stops.
Files are named H3390000 to
H3390999.
Storage me-
dia root folder
Save destination CF card
USB flash drive
Saving method
Move to a folder on
the File Operations
screen, and press
.
HI3390
(or any other folder)
SETTING1.SET
SETTING2.SET
until the storage media is full
Saving Setting Configurations (p. 115)
• Files can also be saved to the root folder.
• When the storage media is full, saving stops.
The user-specified file name may
be up to 8 characters.
Storage me-
dia root folder
The maximum number of files to save in the root for manual save, waveform and screen copy
is 512 files in FAT16 format and 1000 files in FAT32 format.
