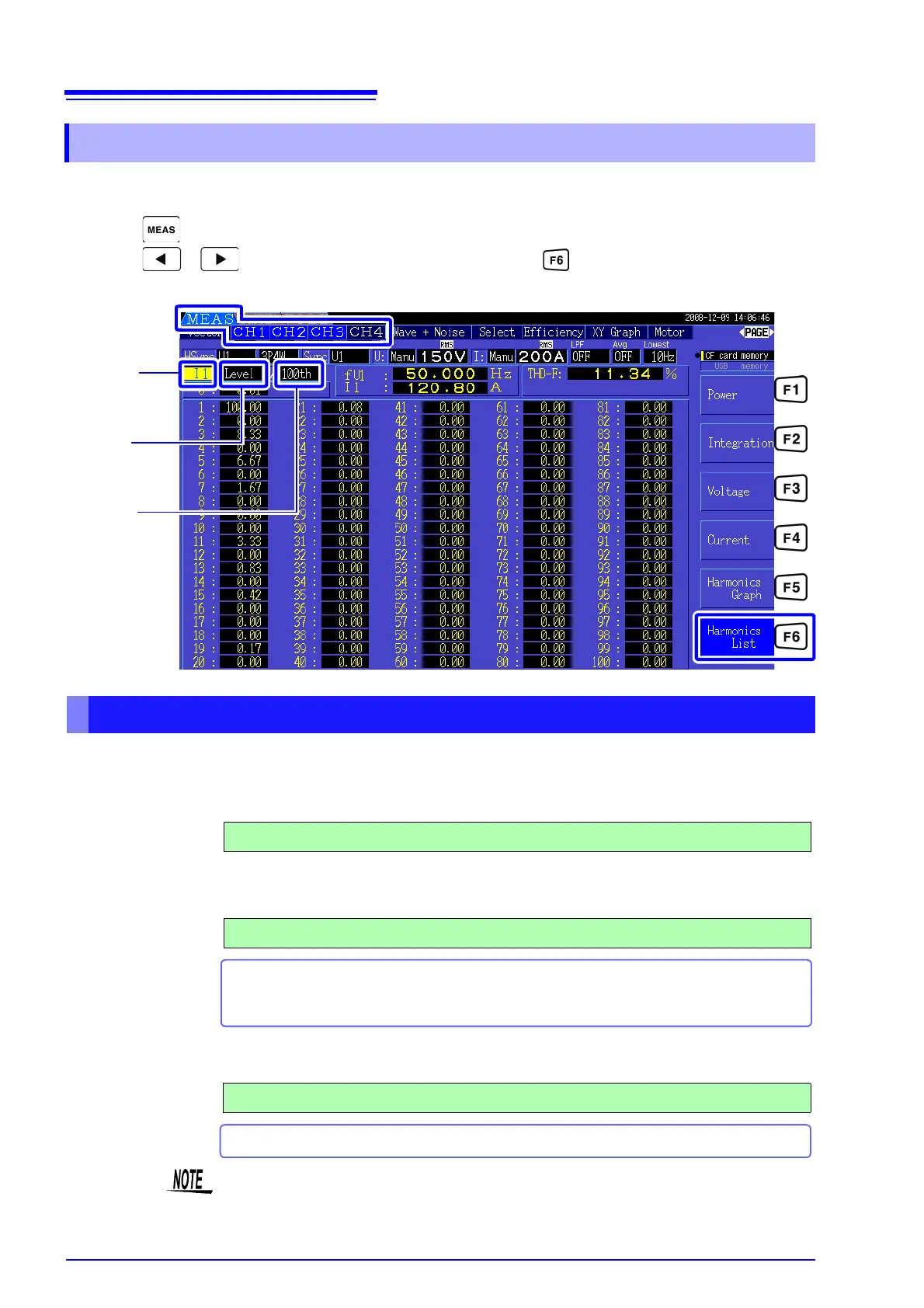

4.4 Viewing Harmonic Measurement Values
64
The results of harmonic analysis of voltage, current and active power on the same channel can be
displayed as a list. Numerical data for the cursor-selected order is also displayed.
Press to display the Measurement screen.
Press to select the desired [CH] page, and press .
See P.63 for the procedures to change the display settings.
4.4.2 Displaying the Harmonic List
Displayed
Item
Display
Contents
Highest
Displayed
Order
Changing Display Settings
Displayed
Item
Changes item (physical quantity) to be displayed.
(Example) In the 3P4W wiring
U1, I1, P1, U2, I2, P2, U3, I3, P3, P123
Display
Contents
Changes the highest order displayed
Amplitude, content (%) and phase angle
• The phase angle of harmonic active power is equivalent to the harmonic voltage-
current phase difference.
• This selection is the same as on the Harmonic Bar Graph screen.
Highest
Displayed
Order
Changes the highest order displayed
100th order, 50h order, 25th order
This selection is the same as on the Harmonic Bar Graph screen.
Depending on the sync frequency used for measurement, the specified maximum
order may not be displayable.
See "Highest order analysis" (p. 152)
To Next Page
