4.5 Viewing Waveforms
71
4
Chapter 4 Viewing Measurement Values
Waveforms can be reduced and enlarged for convenient viewing, and to confirm details. Make this setting
using the cursor keys on the [Wave + Noise] page.
See "4.5.1 Displaying Waveforms" (p. 69)
Voltage and current waveforms can be vertically resized (magnification is the same for all channels).

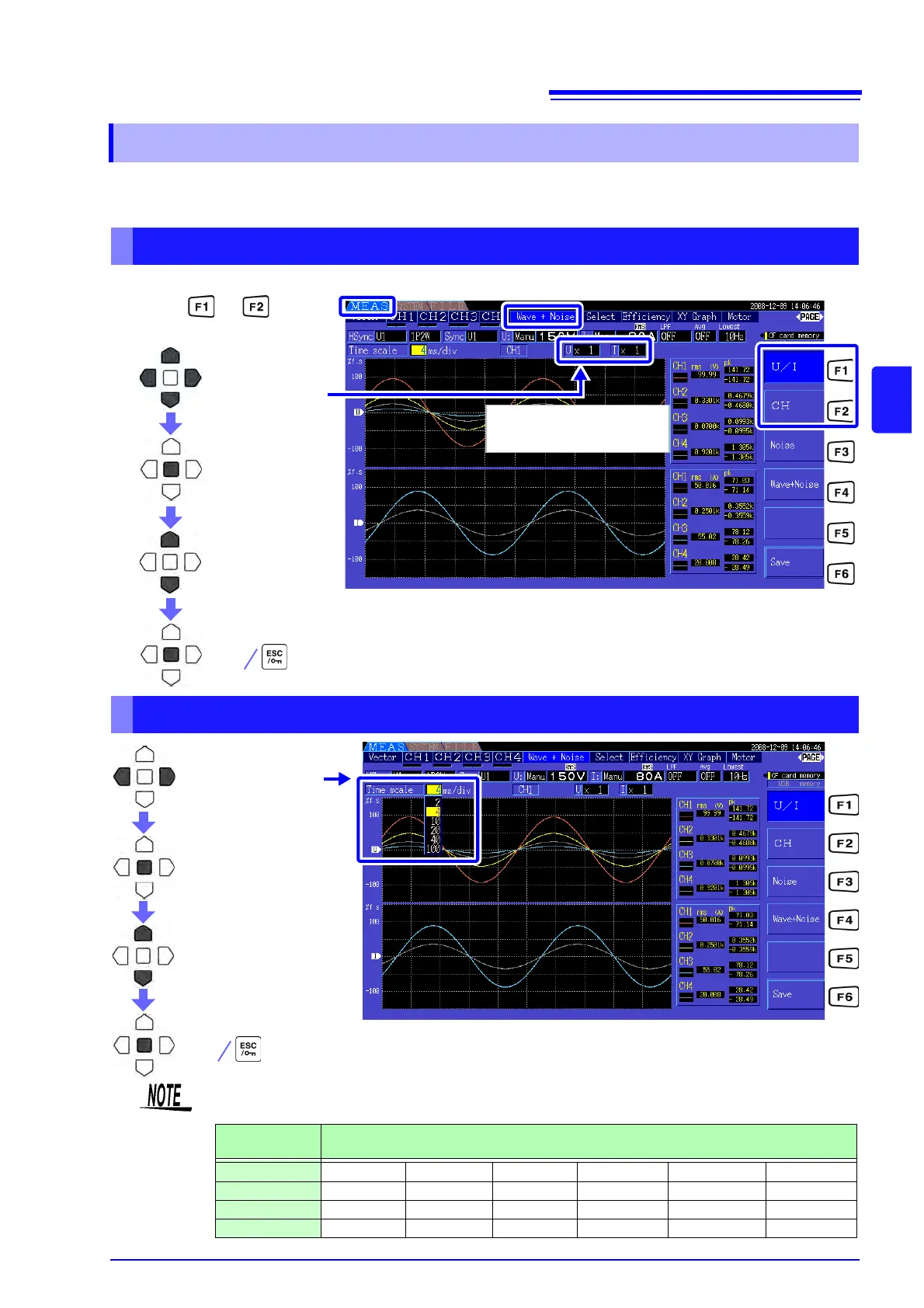

4.5.2 Resizing Waveforms
Changing Vertical Axis Magnification
1
1
2
Press or
3
2
Selects from the
pull-down menu
Displays the pull-
down menu
Enter
Cancel
Select the desired magnifi-
cation from 1/4× to 100×
Select U (voltage)
or I (current)
for resizing
Changing Horizontal Axis Magnification (Timebase)
Selects from the
pull-down menu
See Chart in below.
Displays the pull-down
menu
Select [Time scale]
Enter Cancel
• The waveform sampling rate is fixed at 500 kS/s.
• Available timebase selections depend on the selected number of noise analysis points, as follows.
Selected No. of
Points
Timebase Selections
1000 0.2 ms/div 0.4 ms/div 1 ms/div 2 ms/div 4 ms/div 10 ms/div
5000 1 ms/div 2 ms/div 5 ms/div 10 ms/div 20 ms/div 50 ms/div
10000 2 ms/div 4 ms/div 10 ms/div 20 ms/div 40 ms/div 100 ms/div
50000 10 ms/div 20 ms/div 50 ms/div 100 ms/div 200 ms/div 500 ms/div
