8.1 Connecting a Printer (to print captured screen images)
126
See the instruction manual supplied with the printer for details.
To capture and print an image of the screen:
Model 9670 Printer Settings
• Following are setting examples for the printer to be used with the instrument.
• Factory default settings include Japanese (language), 9600 bps (baud rate), and auto power
off (after 90 minutes).
• When executing printer auto-setup (p. 125), the language, baud rate and auto power off set-
tings are automatically made from the instrument.
• Be aware that changing other settings may prevent printing screen captures.
BL-80RS II/RSII [VX.XX] XXXX/XX/XX
SANEI ELECTRIC INC.
*********
Data input = Serial
International char = U.S.A
Print mode = Graphic
Character set = 24Dot ANK Gothic type
Select switch = Available (ON)
Baud rate = 19200bps
Bit length = 8 bit
Parity= Non
Data control = SBUSY
Paper selection = Normal paper
Upright/inverted = Upright printing
Auto Power Off = Invalidity (OFF)
Battery mode= Invalidity (OFF)
Interface = RS232C
shr=0119 temp=026 shvp=718

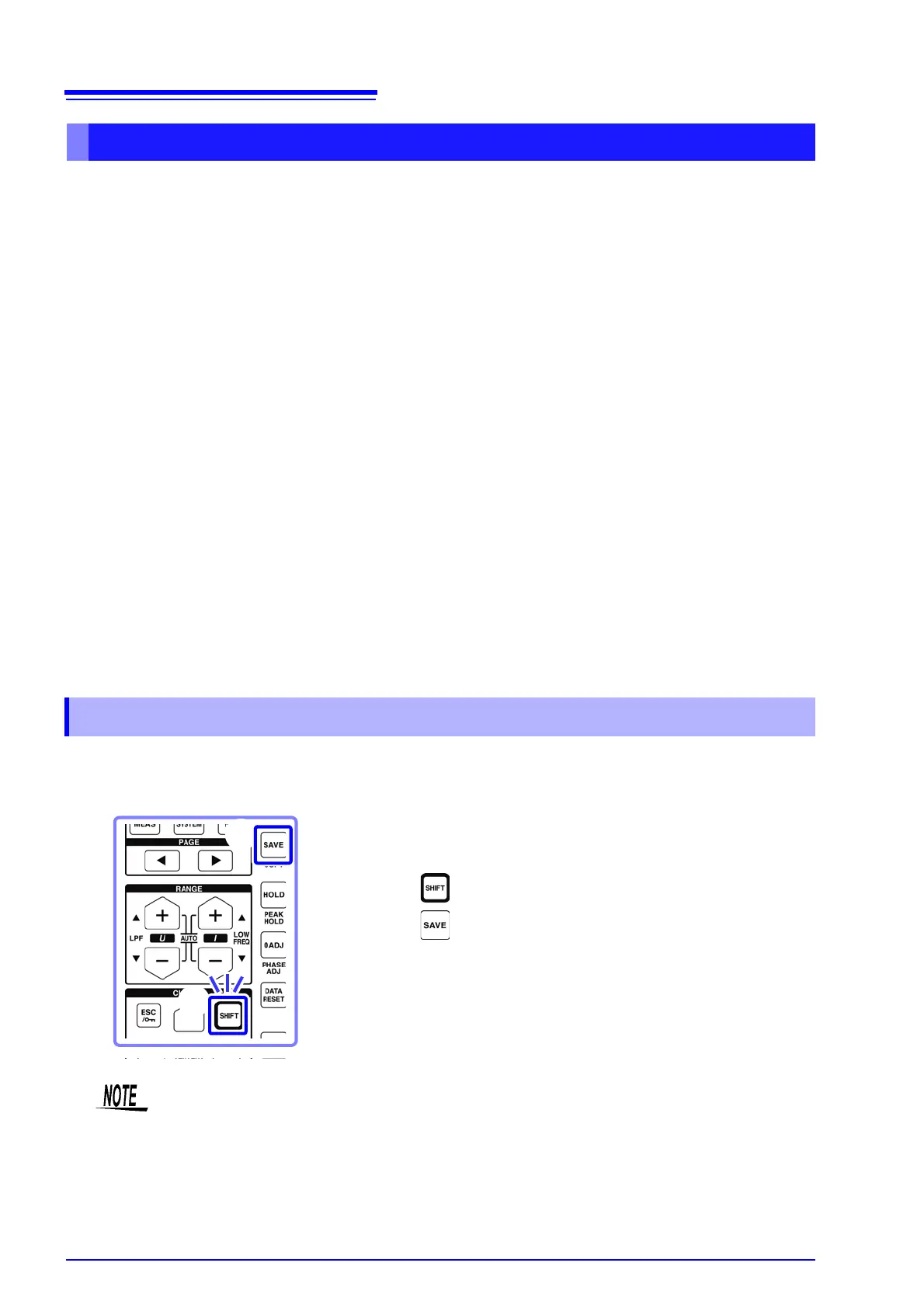

8.1.3 Printing Screen Captures
1. Display the screen to be printed.
2. Press (blue key)
3. Press .
An image of the screen (as it appears when the key is pressed) is printed out.
3
2
Procedure
• Screen capture images can be saved as image files to a CF card or USB flash drive (p. 114),
instead of sending to the printer. To do this, set the [RS connection] (p. 125) to any setting
other than Printer.
• Screen capture is disabled during printing. Wait for printing to finish before capturing another
screen.
• Do not change the settings of [RS connection] and "RS com speed" as well as do not exe-
cute "Printer auto set" while printing.
