Hioki 3390 - Connecting a Thermometer (to Acquire Temperature Data)

8.2 Connecting a Thermometer (to acquire temperature data)
127
8
Chapter 8 Connecting External Devices
Temperature data can be acquired from a thermometer connected to the instrument’s RS-232C interface.
Acquired data can be displayed and saved to CF card together with other measurement data.
We recommend using the following models with known compatibility:
• 3444 Temperature HiTester+3909 Interface Pack+9637 RS-232C Cable
• 3445 Temperature HiTester+3909 Interface Pack+9637 RS-232C Cable
Required items: Hioki 9637 RS-232C Cable, 3444 Temperature HiTester (or 3445 Temperature HiTester),
3909 Interface Pack, AC Adapter (AC10, accessories for Models 3444 and 3445)
8.2 Connecting a Thermometer
(to acquire temperature data)

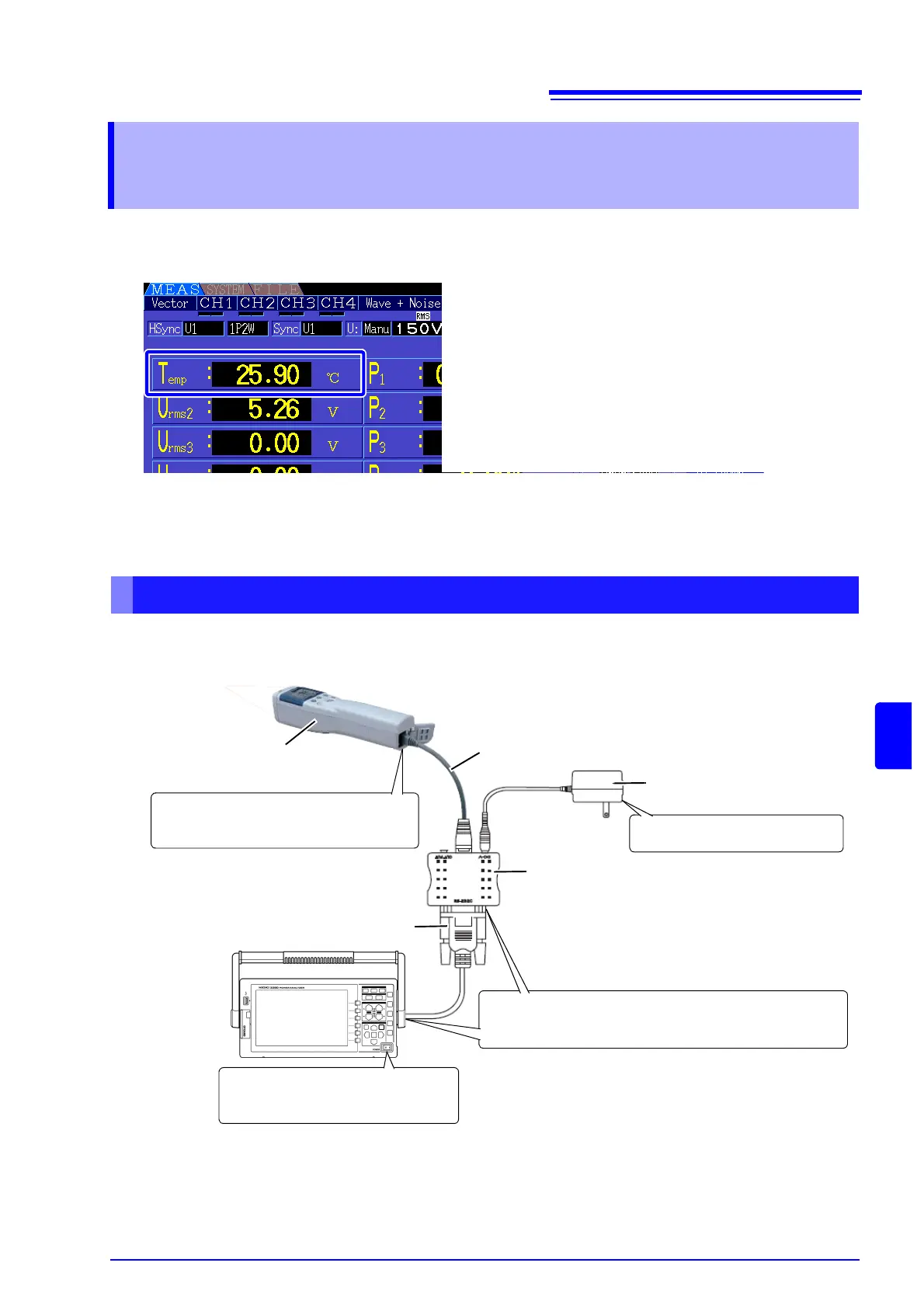

Connecting a Thermometer to the Instrument
1
Confirm that the instrument
is turned off.
3444/3445
Temperature HiTester
Modular Cable
AC Adapter (AC10)
3909 Interface Pack
(Expansion Box + Modular Cable)
9637 RS-232C Cable
2
Connect the thermometer to the
3909 using the modular cable.
Procedure
3
Connect the instrument to the RS-232C on the
3909’s Expansion Box with the RS-232C cable.
4
Plug into an outlet.
