Chapter 4 Viewing Measurement Values
Waveforms of voltage and current measured on up to four channels can be displayed separately accord-
ing to voltage, current, or channel.
Waveforms are sampled at 500 kS/s, with the displayed time span per screen determined by the timing of
the harmonic sync source.
The waveform span displayed on one screen is determined by the [Time scale] setting.
4.5 Viewing Waveforms

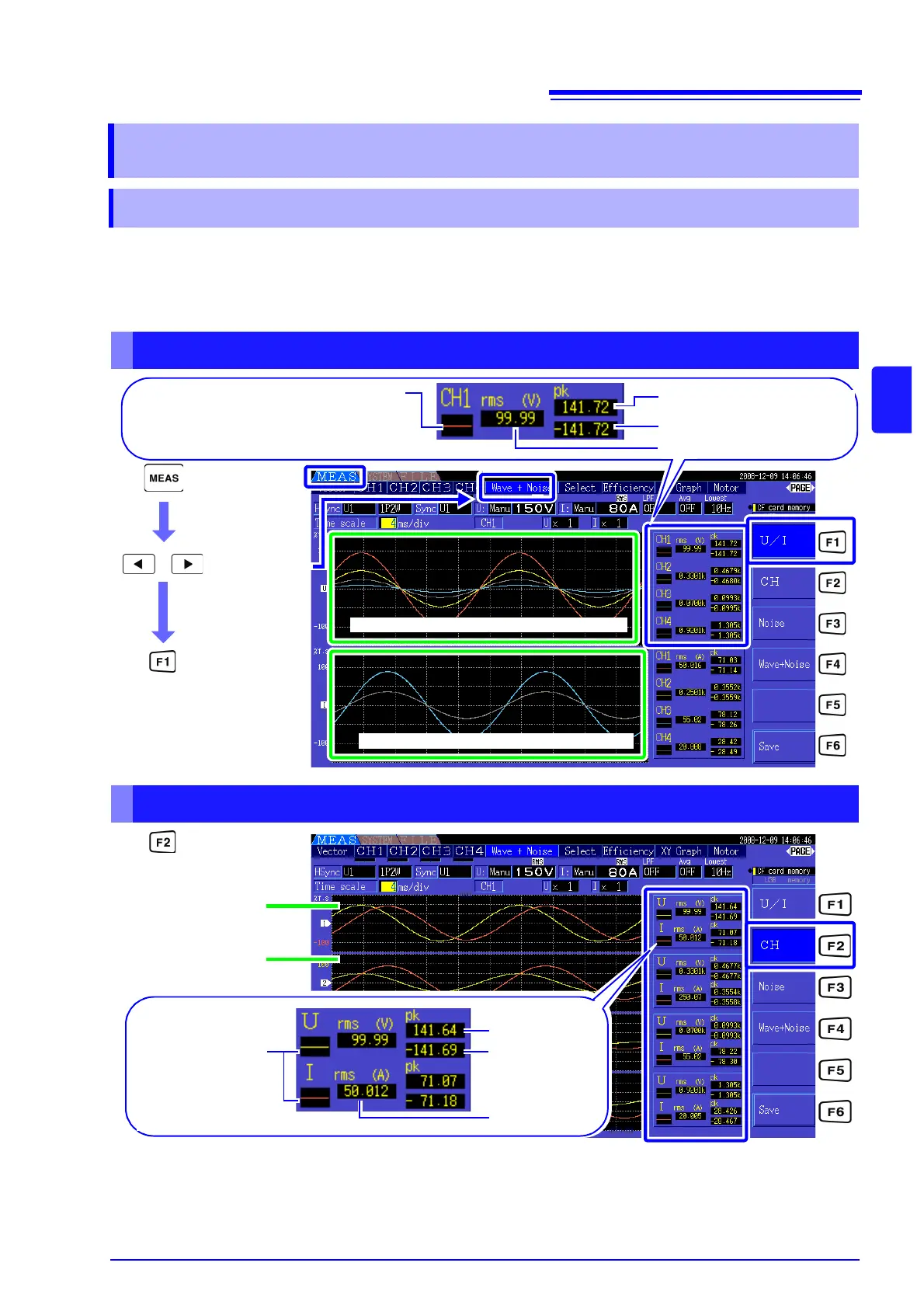

4.5.1 Displaying Waveforms
Displaying Voltage and Current Waveforms Separately
Displaying Separate Channel Waveforms
Display the
[Wave + Noise]
page
Select [U/I]
(Current/Voltage)
Displays four overlapping voltage waveforms
Displays four overlapping current waveforms
Negative Peak Value (pk-)
Positive Peak Value (pk+)
Waveform color appears when enabled (ON).
Waveform Display Enable/Disable (p. 70)
RMS (rms)
Select [CH]
(Separate Channel)
RMS (rms)
Waveform Display En-
able/Disable (p. 70)
Negative Peak
Value (pk-)
Positive Peak
Value (pk+)
Voltage Scale
(Positive-only display)
Current Scale
(Negative-only display)
Waveform color ap-
pears when enabled
(ON).
