4.5 Viewing Waveforms
70
Select whether to display or not display waveforms.
Available settings are [U/I] and [CH].
• Waveforms and numerical measurement values displayed at the right are not synchronized
with measurement timing.
• Displayed waveform values are not the calculated RMS and peak numerical values.
• The vertical axis of the waveform is displayed as a percentage of the full-scale range of each
channel, so the amplitudes of different channels are not directly comparable.
• To display waveforms starting from zero amplitude, see "Zero-Crossing Filter Setting Proce-
dure" (p. 48).
• The waveform and noise display cannot be updated by pressing the HOLD key when the unit
is under HOLD condition.

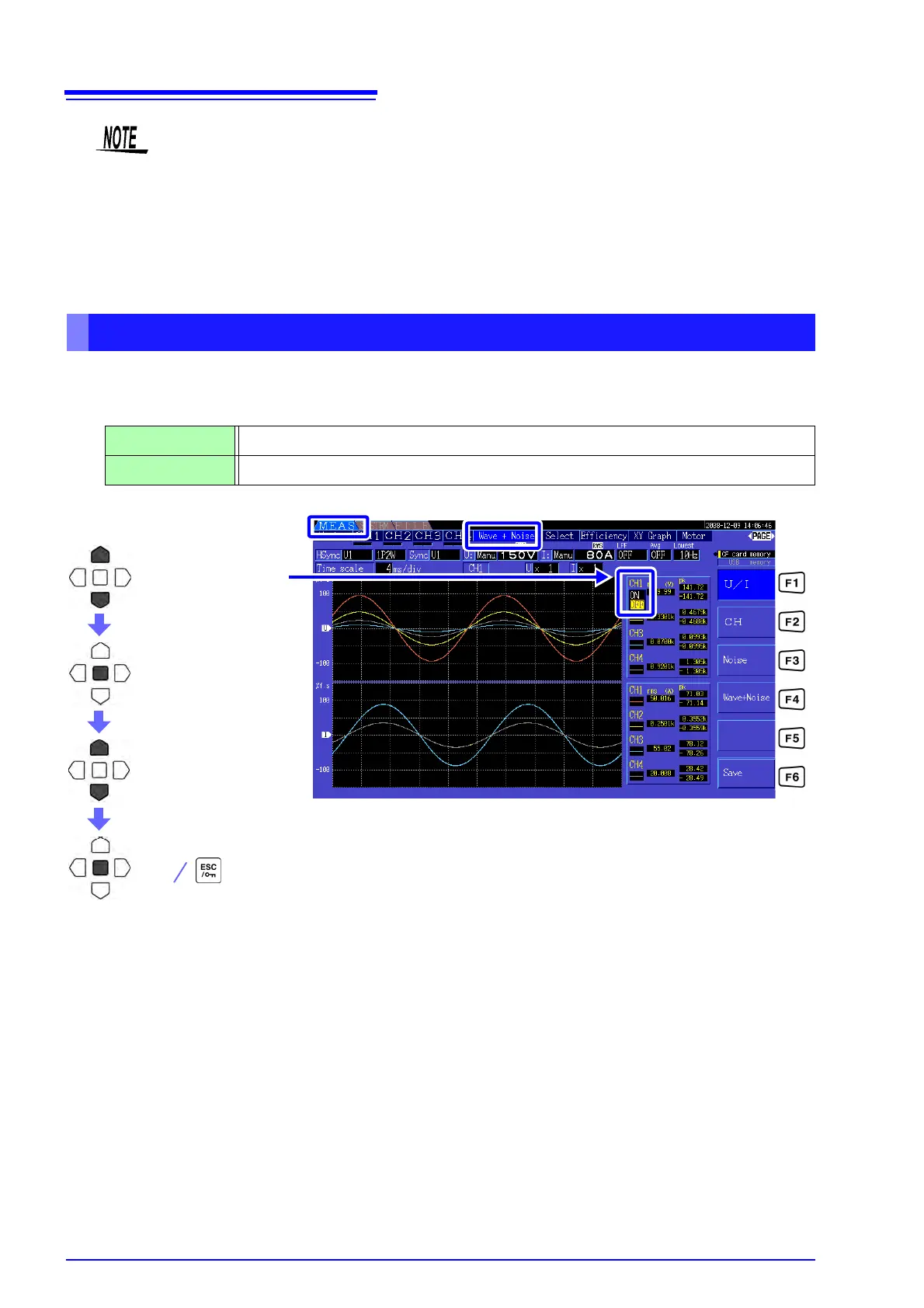

Hiding and Displaying Waveforms
ON Display waveforms
OFF Do not display waveforms
Selects from the
pull-down menu
Displays the pull-down
menu
Select the channel to
change
Enter Cancel
