Hioki 3390 - Setting Scaling (When Using VT(PT) or CT)

4.2 Viewing Power Measurements, and Changing the Measurement Configuration
51
4
Chapter 4 Viewing Measurement Values
Set the VT or CT ratio when using an external VT(PT) or CT.
When a ratio has been set, [VT] or [CT] is displayed above each range setting on the [CH] pages.
The settable range is as follows.

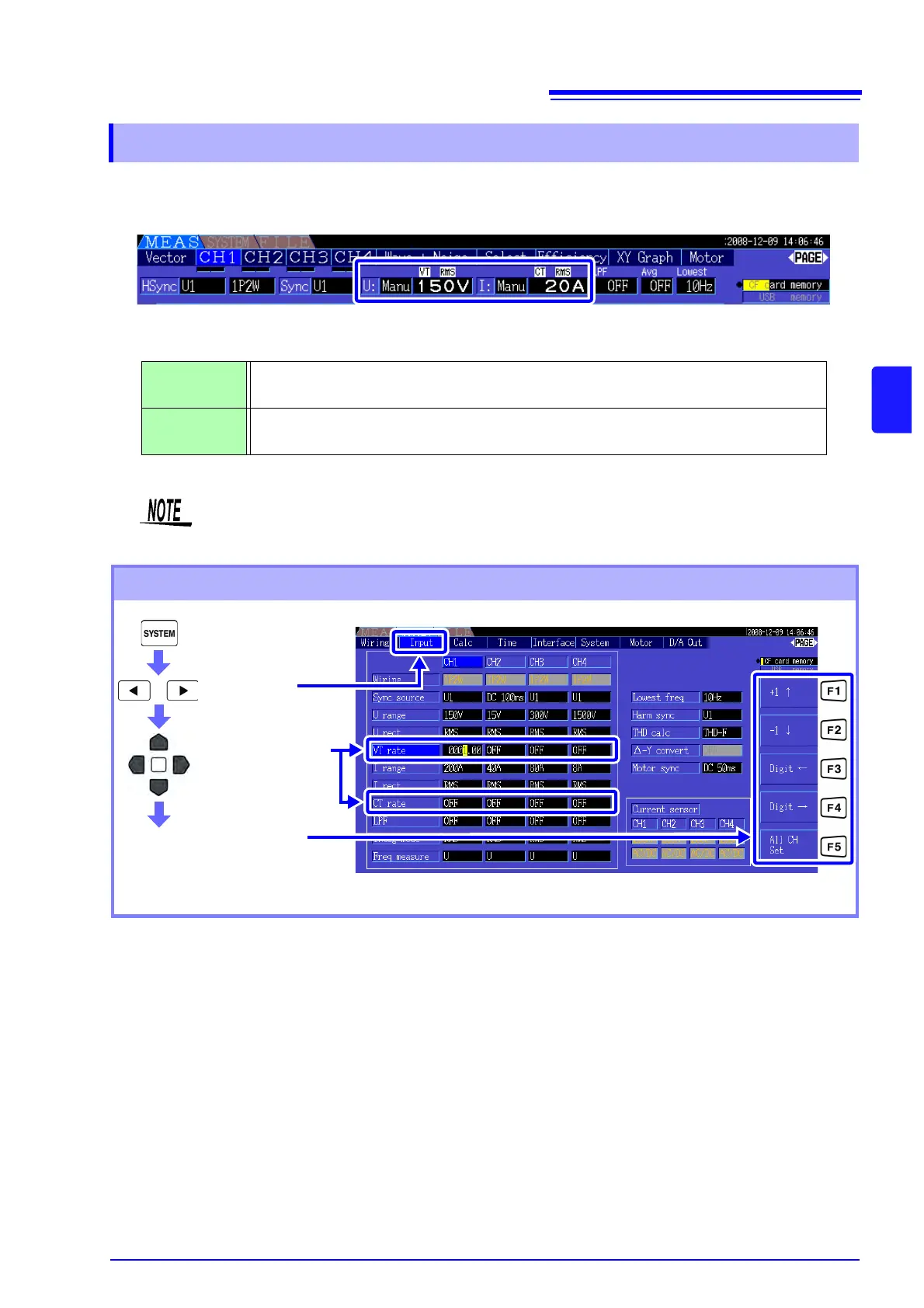

4.2.6 Setting Scaling (when using VT(PT) or CT)
VT rate
OFF/ 0.01 to 9999.99
(Setting is not available when VT × CT exceeds 1.0E+06.)
CT rate
OFF/ 0.01 to 9999.99
(Setting is not available when VT × CT exceeds 1.0E+06.)
When [OFF] is selected, VT and CT ratios are both 1.00.
Setting Procedure
Select with the F keys
Select a [VT rate]
and [CT rate] for
the channel being
set.
Display the
[Input] page
See About [All CH Set].
"2.2 Basic Operations" (p. 16)
