4.3 Integration Value Observation
53
4
Chapter 4 Viewing Measurement Values
Current (I) and active power (P) are integrated on all channels simultaneously. Positive, negative and
total values are displayed.
4.3 Integration Value Observation

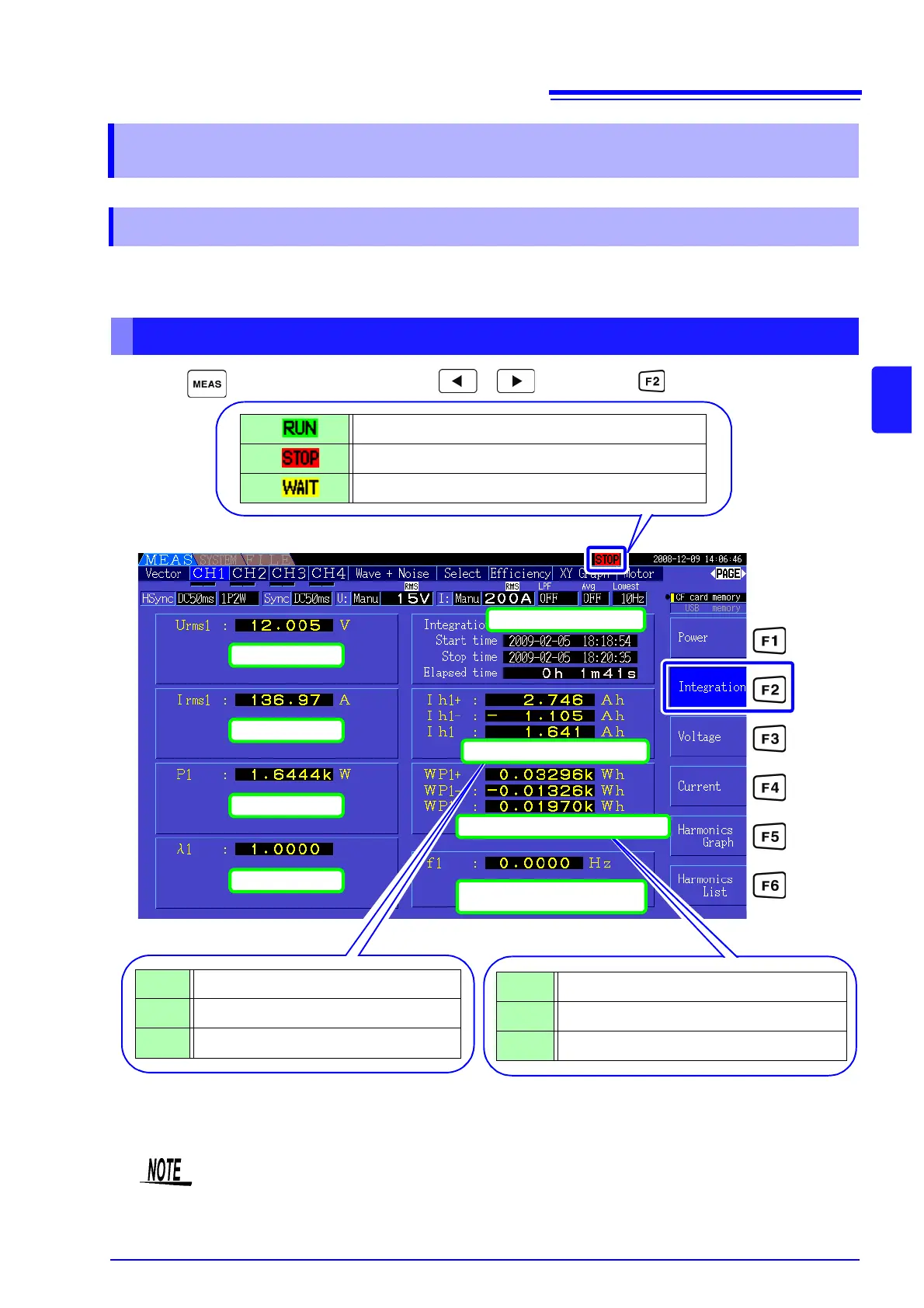

4.3.1 Displaying Integration Values
Displaying Integration Contents
Press , select a channel [CH] with , then press .
RMS Voltage
RMS Current
Active Power
Power Factor
Integration Time Items
Frequency Measurement
Source Frequency
* Displayed only for DC integration mode
Current Integration Values
Ih2+ CH 2 positive current integration value*
Ih2- CH 2 negative current integration value*
Ih2 CH 2 total current integration value
Example. With 1P2W Wiring mode selected, and DC integration mode
WP2+ CH 2 positive active power integration value
WP2- CH 2 negative active power integration value
WP2 CH 2 total active power integration value
Active Power Integration Values
Integration in progress
Integration stopped
Waiting for integration to start by real-time clock control
Items that can be integrated depend on the selected wiring and integration mode.
See "3.9 Selecting the Wiring Mode" (p. 30), "4.3.2 Setting the Integration Mode" (p. 56)
