2.3 Display Items and Screen Types
17
2
Chapter 2 Names and Functions of Parts, Basic Operations & Screens
These items are displayed on every screen.
2.3 Display Items and Screen Types

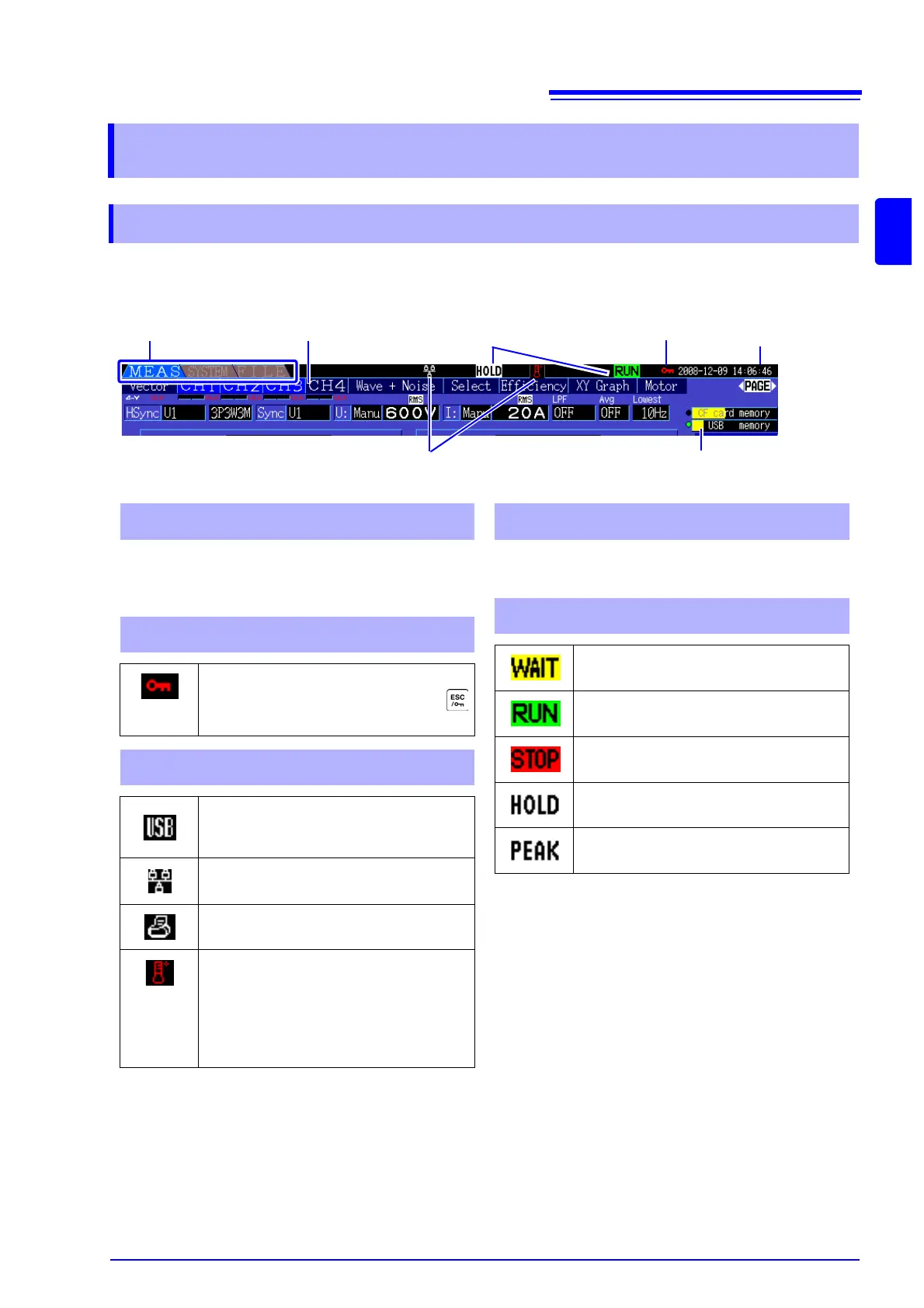

2.3.1 Common Display Items
Displayed Screen
Real-Time Clock
Operating State Indicators
Interface Indicators
Media-Busy Indicator
13
45
Key-Lock Indicator
2
Level indicators for the CF card and USB memory
stick. The used storage space is indicated in yel-
low, and it turns to red when the media is 95% full.
1 Storage Media Indicators
2 Key-Lock Indicator
Lights to indicate Key Lock is active
(keys are locked), after holding the
key for three seconds.
3 Interface Indicators
Lights when the instrument is con-
nected to a computer by USB cable
(and the computer is on).
Lights when the instrument is con-
nected to a LAN.
Indicates a printer is connected to the
RS-232 interface.
Indicates a thermometer is connected
to the RS-232 interface.
Red: Temperature data has not been
acquired.
Blue: Temperature data has been
acquired.
Displays the current date and time.
To set the Clock: (p. 101)
4 Real-time clock
5 Operating State Indicators
Lights during integration and record-
ing.
Indicates integration is in progress.
Indicates integration is stopped.
Indicates Data Hold is active.
Indicates Peak Hold is active.
Displayed Page
