7.6 Saving Waveform Data
114
This operation saves the waveform displayed on the [Wave + Noise] page as a CSV file.
The currently displayed screen can be saved as a 256-color bmp bitmap file (BMP file name extension).
If a printer is connected, monochrome printing is available. (p. 123)
Press and to save a bitmap image of the current screen to the specified media.

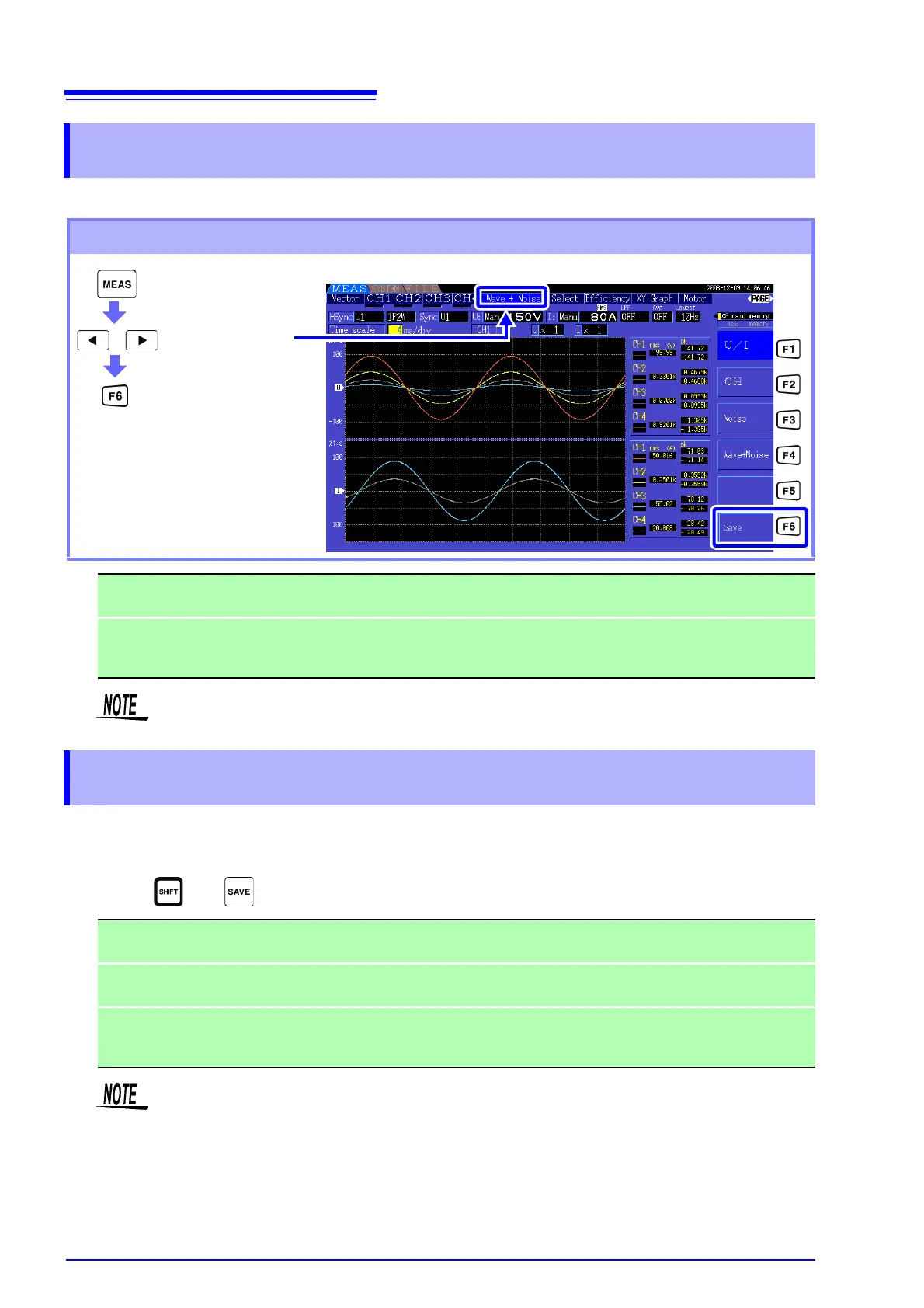

7.6 Saving Waveform Data
Setting Procedure
Display the
[Wave + Noise] page
(saves the waveform at this moment)
Save destination: CF card, USB flash drive
(Save destination setting is the same as for Manual saving, (p. 108))
File names: Auto generated, with CSV extension
W3390nnn.CSV ("nnn" is serial number 000 to 999 within the same folder)
Example: W3390000.CSV
Waveform saving is not possible when auto-saving is enabled.
7.7 Saving Screen Capture Images
Save destination:
CF card, USB flash drive
(Save destination setting is the same as for Manual saving, (p. 108))
RS Connection:
Printer
See "8.1 Connecting a Printer (to print captured screen images)" (p. 123)
File names:
Auto generated, with CSV extension
H3390nnn.CSV ("nnn" is serial number 000 to 999 within the same folder)
Example: H3390000.CSV
• Screen capture is not available when auto-saving is enabled.
• To save screen images to a CF card or USB flash drive, confirm that the [RS connection] on
the [Interface] page of the Setting screen is not set to [Printer]. Otherwise, data is output
only to the printer.
See"Making Printer Settings on the Instrument" (p. 125)
