8.4 Using Analog and Waveform D/A Output Options (must be factory installed before
134
Select the items for D/A output. Up to 16 items can be selected.
Make the settings on the [D/A Out] page of the Setting screen.
Freq f.s. Set this to output frequency in the analog output.
When a motor analysis option is installed, this is the same as the maximum motor mea-
surement frequency setting. ("Max frequency" (p. 88))
Integ f.s. Set for analog outputs. ("About Full-Scale Integration" (p. 135))

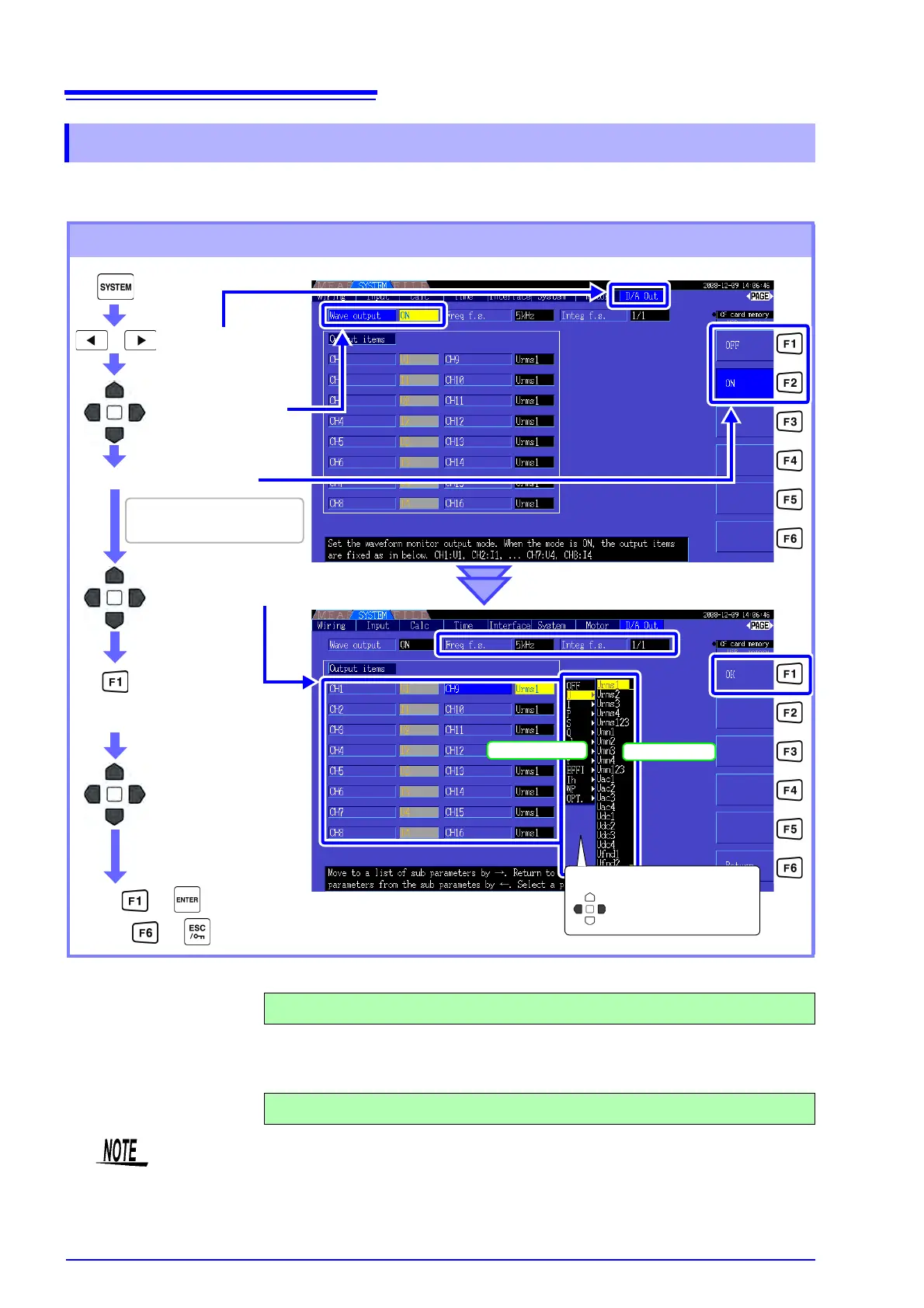

8.4.2 Output Item Selection
Setting Procedure
(the pull-down menu appears)
Display the [D/A Out]
page
Select [Wave output]
ON: Enable waveform output
OFF: Disable waveform output
Select a channel to be
set.
Select parameter items
(sub parameter last)
Enter: or
Cancel: or
Main parameter
Sub parameter
Pull-Down Menu
Select the sub parameter.
Select with the F keys
100 Hz, 500 Hz, 1 kHz, 5 kHz
1/10, 1/2, 1/1, 5, 10, 50, 100, 500, 1000, 5000, 10000
• Waveform output can be selected only for channels D/A1 to D/A8. Channels D/A9 to D/A16
are for analog output only.
• Items selected on the MEAS, SYSTEM or FILE screen are always output.
To Next Page
