4.2 Viewing Power Measurements, and Changing the Measurement Configuration
42

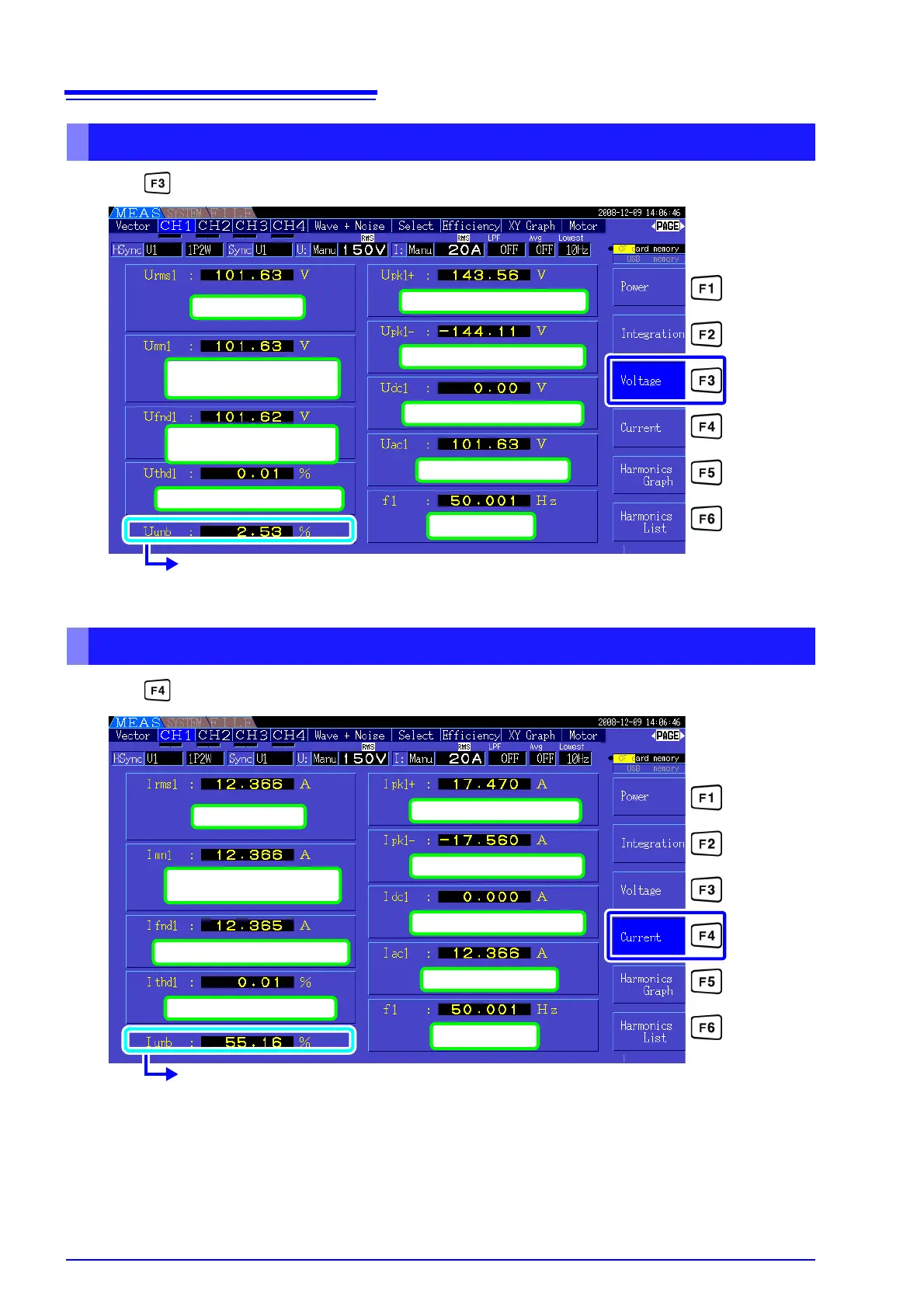

Press . (The screen shows values for Wiring mode 1, four 1P2W systems.)
Press . (The screen shows values for Wiring mode 1, four 1P2W systems.)
Displaying Voltage
Displaying Current
RMS Voltage
Rectified Mean Value of
RMS Conversion
THD Voltage Percentage
Fundamental Voltage
Content
Voltage Waveform Peak+
AC Voltage Content
Frequency
Simple Averaged Voltage
Voltage Waveform Peak-
When the Wiring mode is 3P3W3M or 3P4W, voltage unbalance Uunb [%] is displayed.
RMS Current
Rectified Mean Value of
RMS Conversion
THD Current Percentage
Fundamental Current Content
Current Waveform Peak+
AC Current Content
Simple Averaged Current
Current Waveform Peak-
When the Wiring mode is 3P3W3M or 3P4W, current unbalance Iunb [%] is displayed.
Frequency
