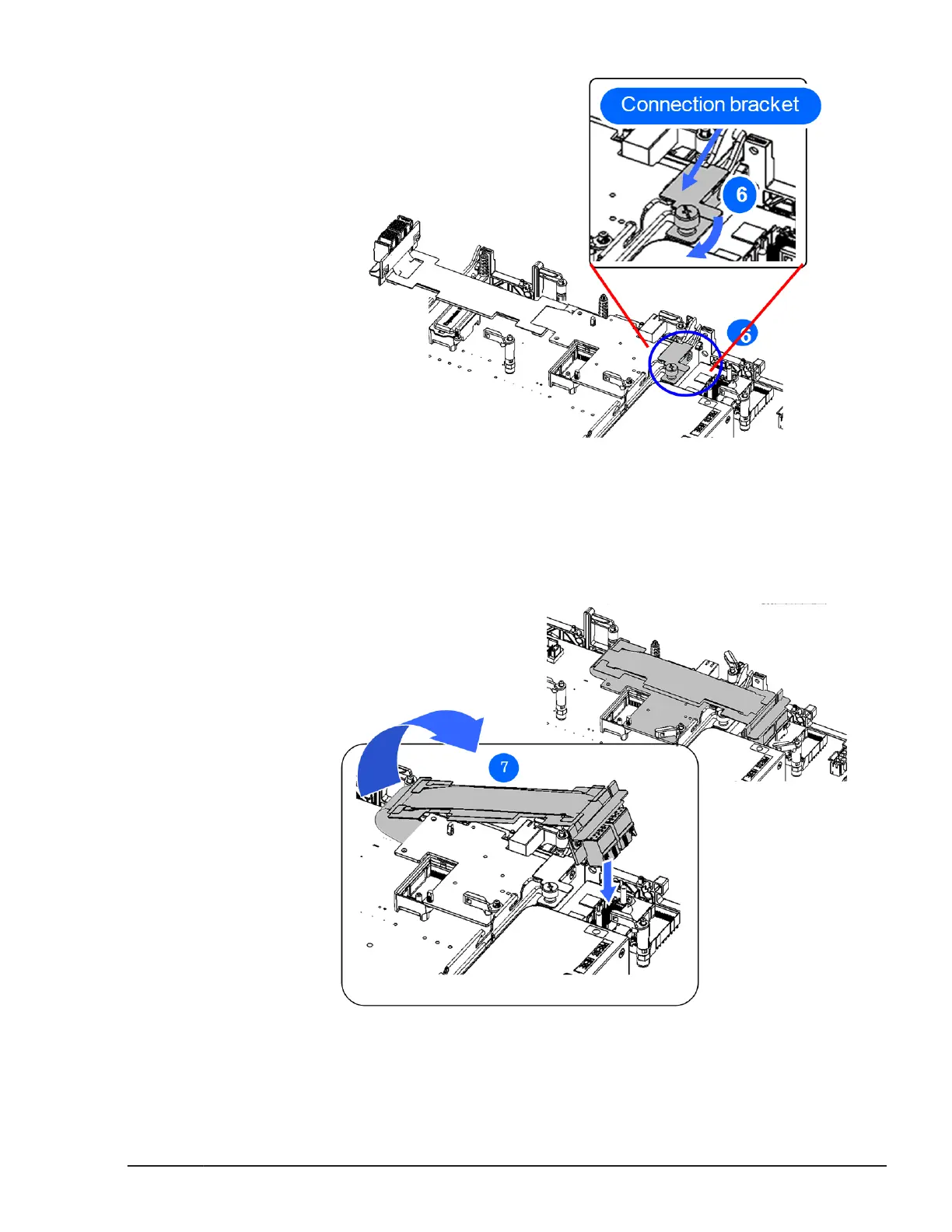

Figure 5-29 Installing the connection bracket
7. (Skip this step when the connection kit L/P is not installed.)
Turn over the connector of the connection kit L/P toward PCI expansion
blade, align the connector with the male connector on the main board of
the PCI expansion blade, and then push in the connector.
Figure 5-30 Installing the connection kit L/P
Replacing parts
5-27
Hitachi Compute Blade 500 Series System Service Manual
