Ethernet gateway
You can change the IP and MAC values of your Getaway here by clicking the button Change.
BMS conguration
Modbus Conguration
CSNET WEB allows to congure the BMS system by setting the ID for each indoor unit. This conguration will link the BMS
with the H-LINK.
To open the BMS conguration click on the change button. After clicking the button a dialog will appear and you could start
to set the conguration.
BMS Conguration for Packaged

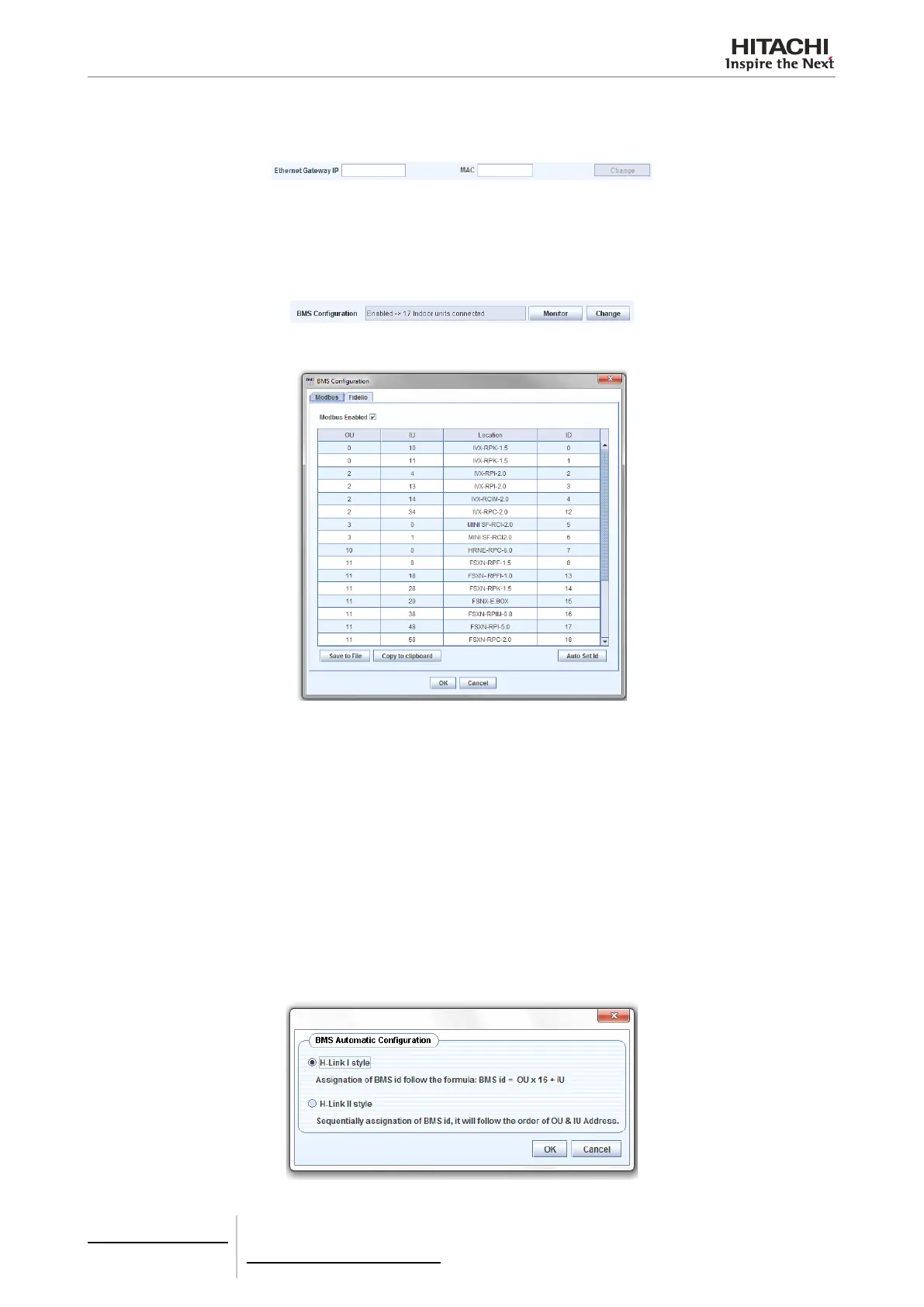

In this dialogue you can enable the BMS to activate this option, and after this, set in each row the unit information.
- OU is the outdoor unit number.
- IU is the indoor unit number.
- Location is the location eld of the unit. This eld is only editable from the unit setting tab.
- ID eld is automatically set and is not modiable.
CSNETWEB automatically assigns an ID for each found unit. You can change this ID on the table.
The ID eld can not be repeated, if it will occurs, CSNET WEB will ask you to change the repeated ID.
In case of Packaged, “Auto Set Id” button will be available. This button open a new window when user could automatically
assign the ID to the units. This assignation could be done in two ways:
- H-LINK I: BMS ID = OU x 16 + IU.
- H-LINK II: BMS ID is assigned following the order of OU & IU.
