6 Building air conditioning controls
CSNET WEB (PSC-A160WEB1)
TCGB0106 rev.0 - 12/2014
492492

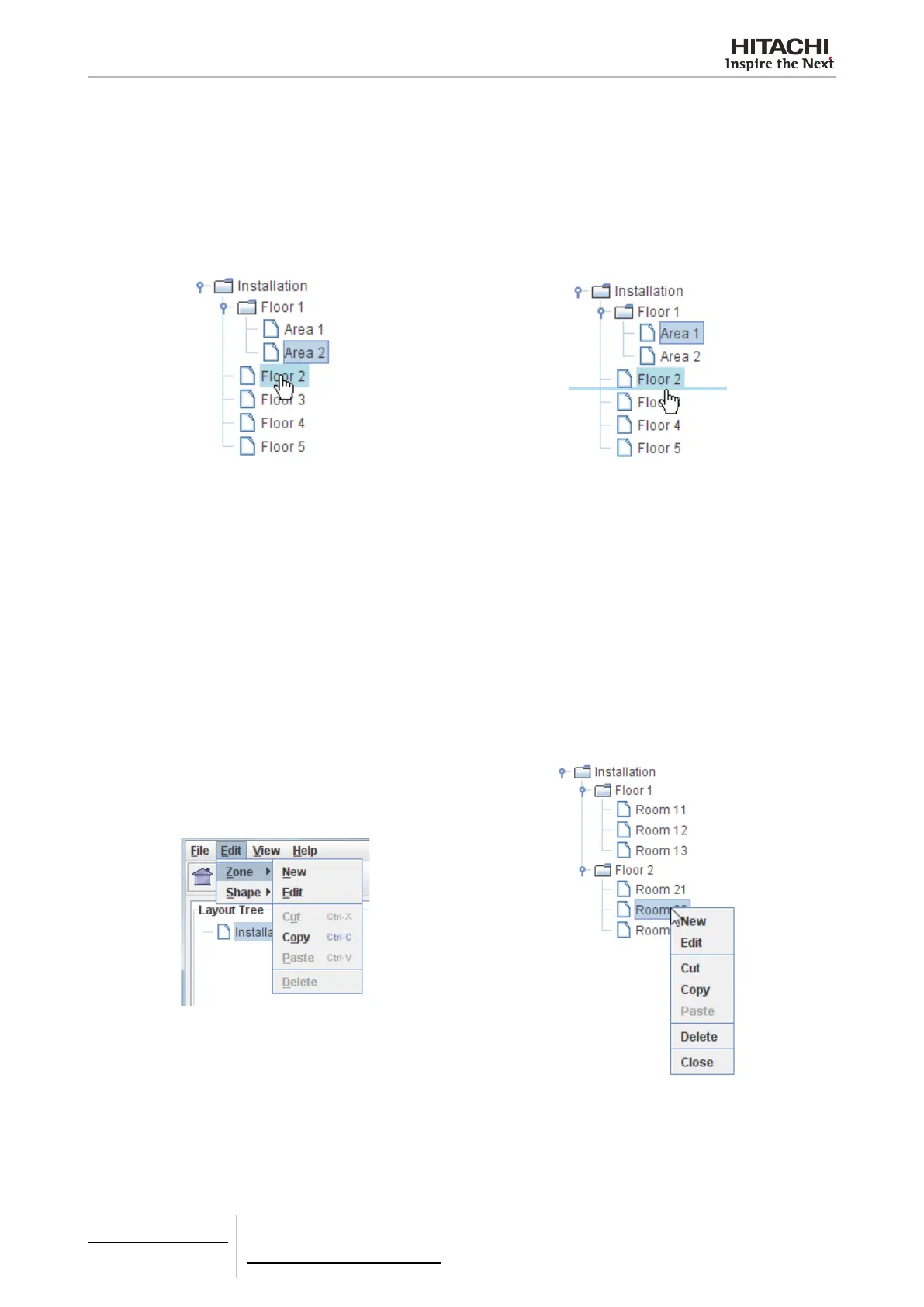

Layout tree
The layout tree shows you the topology of your installation. It is helpfully to îš¿nd the zones of your installation and it is easy
a very good tool to organise your installation.
Using the tree you can select which zone you want to see on the display zone.
Dragging a zone to another one this will be moved as a child of destination zone.
To specify concrete order we move zone to bottom of destination zone, a line will appear. On release mouse button original
zone will go after destination zone.
Create zones
You can îš¿nd Zone in Edit menu. Zone options can also be found using the right button on a zone inside the installation tree.
A zone is a slide where we can add all shapes that we want. On a zone we can choose a background image and edit this.
Zone has different options:
• New: create new zone. This zone will be child of selected zone on tree.
• Edit: modify selected zone.
• Cut: copy to clipboard selected zone. When we paste this zone will disappear from original parent.
• Copy: clone the zone to allow you to paste where you want.
• Paste: copy the zone stored on clipboard as a child of the selected zone. Remember that root zone is not allowed to
be deleted.
• Delete: delete current zone. When you choose this option a dialogue will appear where you can choose between delete
all children from selected zone or move children to parent of the selected zone.
