Creating new zone or editing an existing one will appear the zone dialogue to set the information of the zone. Each zone
must to have a speciîš¿c information to identify the zone. The name of the zone must to be unique.

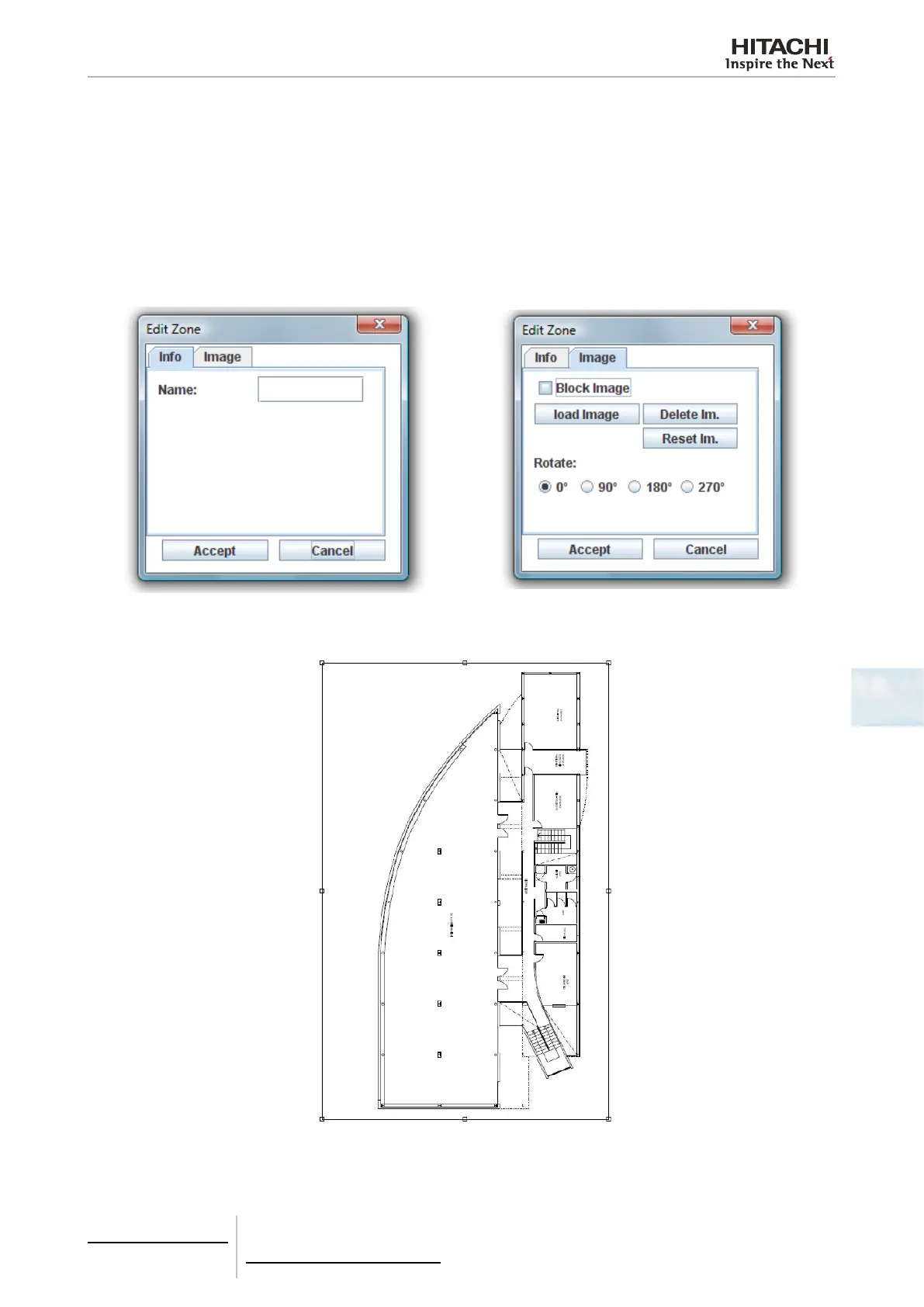

In each zone you can insert one background image. In the image tab are different buttons that allows you to modify the
background image:
• Block image: block transformations to your image to ban the possibility of transform without want it.
• Load image: open le dialogue to choose an image.
• Delete image: delete current background image.
• Reset image: restart all the transformations of the image.
• Rotate: rotate the current image.
When transforming an image, you will see transformation squares around the image. Each square transforms the image
îš¿xing the opposite one. Central square will shift the image.
