BMS conguration
Modbus Conguration
CSNET Manager allows to congure the BMS system in CSNET WEB devices by setting the ID for each indoor unit. This
conguration will link the BMS with the H-LINK.

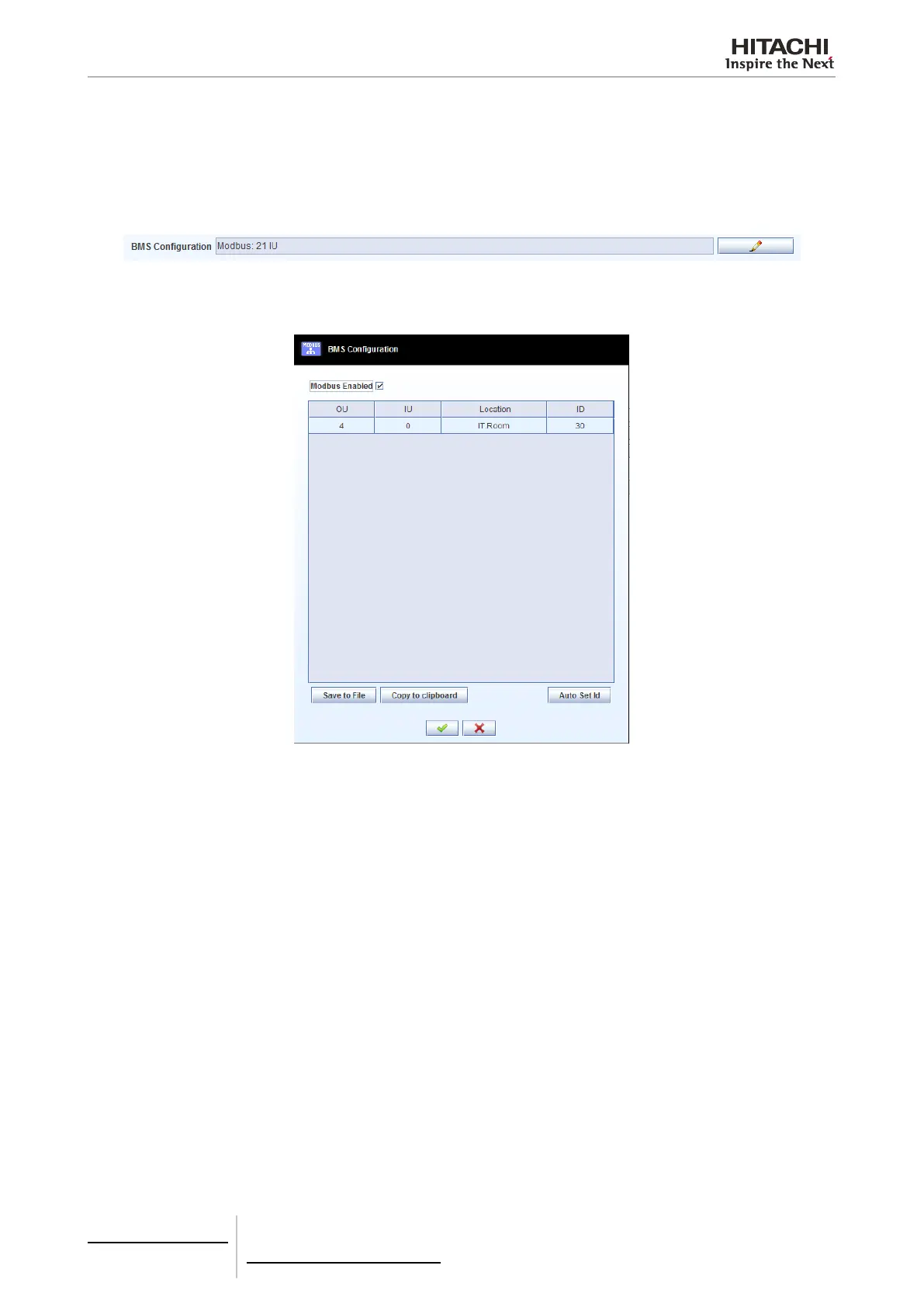

To open the BMS conguration click on the change button. After clicking the button a dialogue will appear and you could
start to set the conguration.
BMS Conguration for Packaged
In this dialogue you can enable the BMS to activate this option, and after this, set in each row the unit information.
- OU is the outdoor unit number.
- IU is the indoor unit number.
- Location is the location eld of the unit. This eld is only editable from the unit setting tab.
- ID eld is automatically set and is not modiable.
CSNET Manager automatically assigns an ID for each found unit. You can change this ID on the table.
The ID eld can not be repeated, if it will occurs, CSNET WEB will ask you to change the repeated ID.
In case of Packaged, “Auto Set Id” button will be available. This button open a new window when user could automatically
assign the ID to the units. This assignation could be done in two ways:
- H-LINK I: BMS ID = OU x 16 + IU.
- H-LINK II: BMS ID is assigned following the order of OU & IU.
Export buttons
Save to le button writes in a selected comma-separated values le the content of the table.
Copy to clipboard button will set in your clipboard the content of the table, separating the information by tabs.
In both cases the information of the table is ready to create an easy view of the information and an easier exportation to
other programs like Excel.
