7 Gateways for building management systems
KNX001
TCGB0106 rev.0 - 12/2014
660660

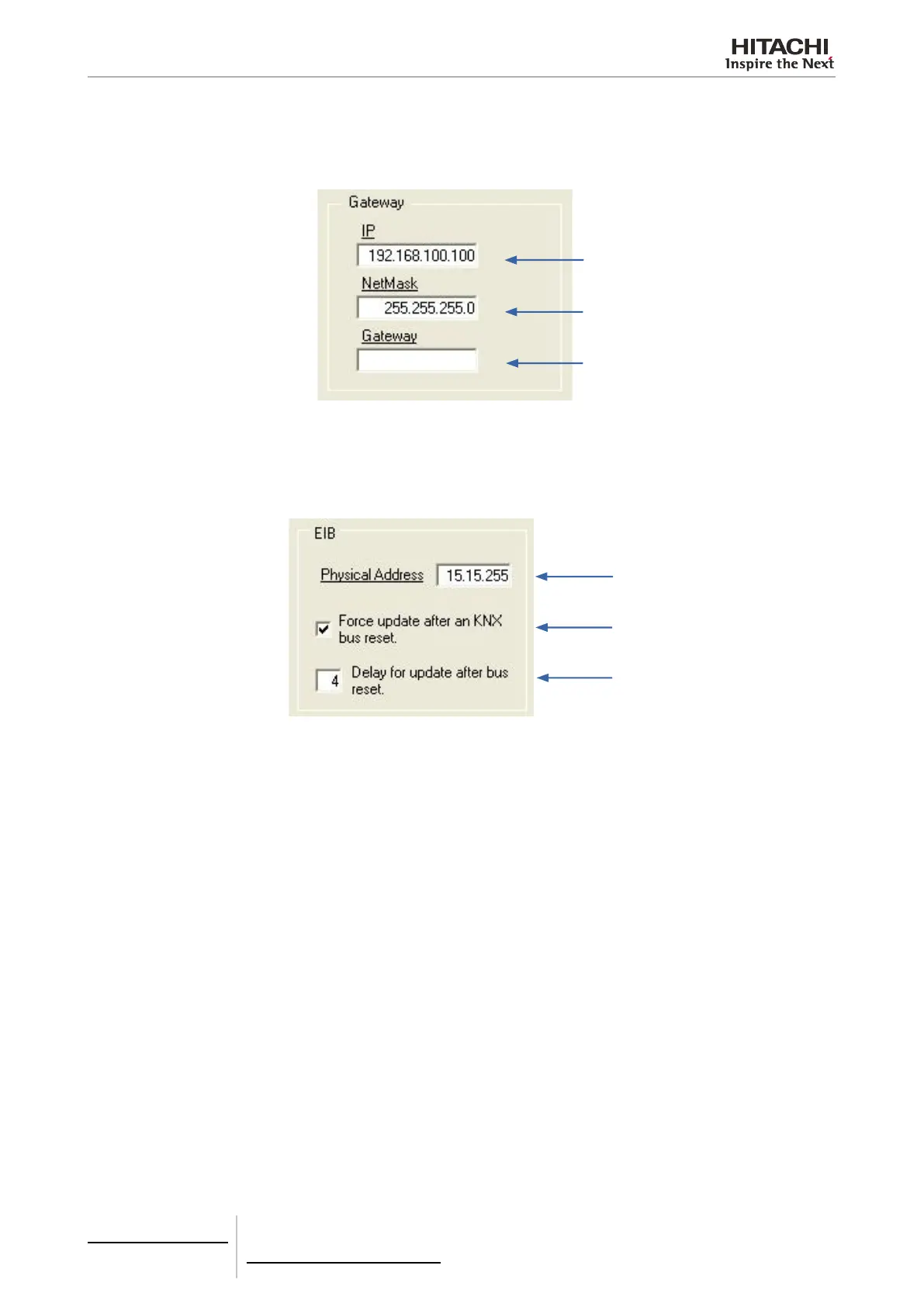

Connection settings
In this window 3 types of information are congured, the KNX001 TCP/IP conguration, the KNX connection conguration
and the CSNET WEB connection conguration.
2
3
1
KNX001 TCP/IP conguration
1 KNX001 IP address. It must be in the same network segment as CSNET WEB if it does not use the IP gateway.
2 Network mask. Determine the network segment.
3 If KNX001 is in another network segment different from CSNET WEB, enter the IP address of the router,
without leaving it blank.
2
3
1
KNX conguration
1 Selection of the physical address of the KNX device that KNX001 will have.
2 Indicates whether, after a reset of KNX001 or recovery of the KNX bus, read requests will be made
to the KNX bus for the group addresses with ag U or U2 enabled.
