89

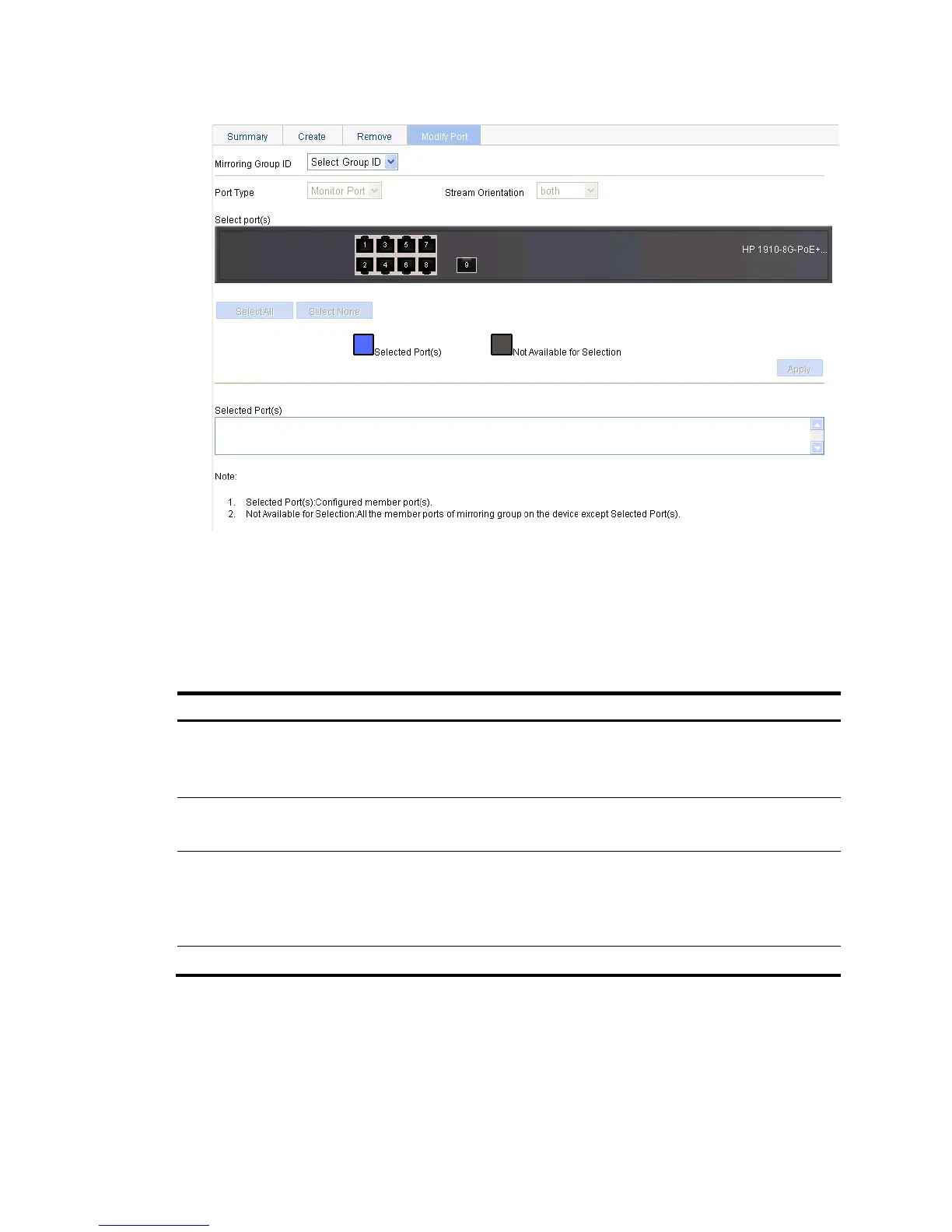

Figure 70 Modifing ports
3. Configure ports for the mirroring group as described in Table 15.
4. Click Apply.
A progress dialog box appears.
5. After the success notification appears, click Close.
Table 15 Configuration items
Item Descri
tion
Mirroring
Group ID
ID of the mirroring group to be configured.
The available groups were added previously.
Select a Local mirroring group ID to configure ports for the local mirroring group.
Port Type
Monitor Port
—
Configures the monitor ports for the local mirroring group.
Mirror Port
—
Configures mirroring ports for the local mirroring group.
Stream
Orientation
Set the direction of the traffic monitored by the monitor port of the mirroring group.
• both—Mirrors both received and sent packets on mirroring ports.
• inbound—Mirrors only packets received by mirroring port.
• outbound—Mirrors only packets sent by mirroring ports.
Select port(s)
Click the ports to be configured on the chassis front panel.
