The operation parameter settings of the selected port are displayed on the lower part of the page.
Whether the parameter takes effect is displayed in the square brackets.

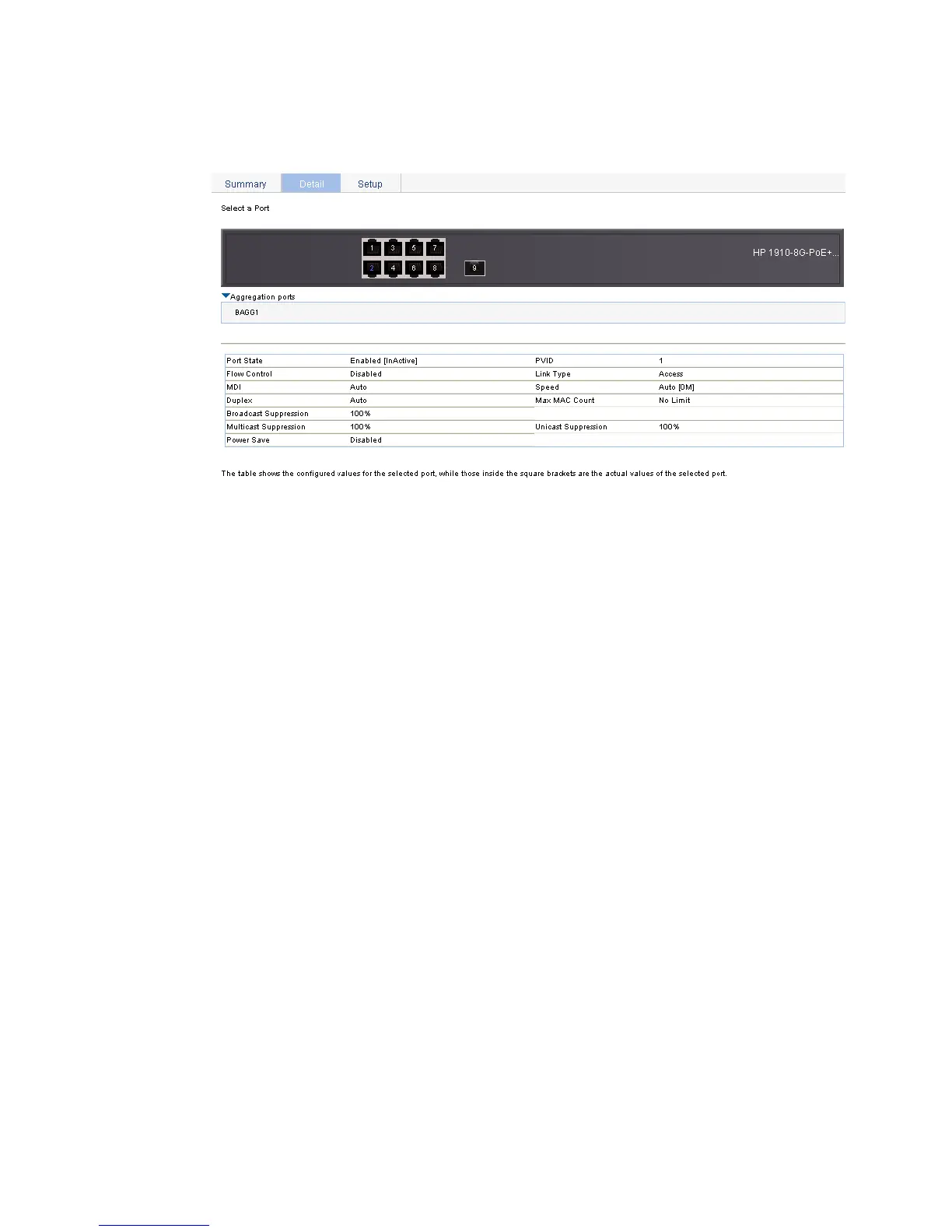

Figure 63 The Detail tab
Port management configuration example
Network requirements
As shown in Figure 64:
• Server A, Server B, and Server C are connected to GigabitEthernet 1/0/1, GigabitEthernet 1/0/2,
and GigabitEthernet 1/0/3 on the switch, respectively. The rates of the network adapters of these
servers are all 1000 Mbps.
• The switch connects to the external network through GigabitEthernet 1/0/4 whose rate is 1000
Mbps.
To avoid congestion at the egress port, GigabitEthernet 1/0/4, configure the autonegotiation rate range
on GigabitEthernet 1/0/1, GigabitEthernet 1/0/2, and GigabitEthernet 1/0/3 as 100 Mbps.
