HP 1910 - Configuring LLDP Globally

241
3. Click Modify Selected to enter the page for modifying these ports in batch.

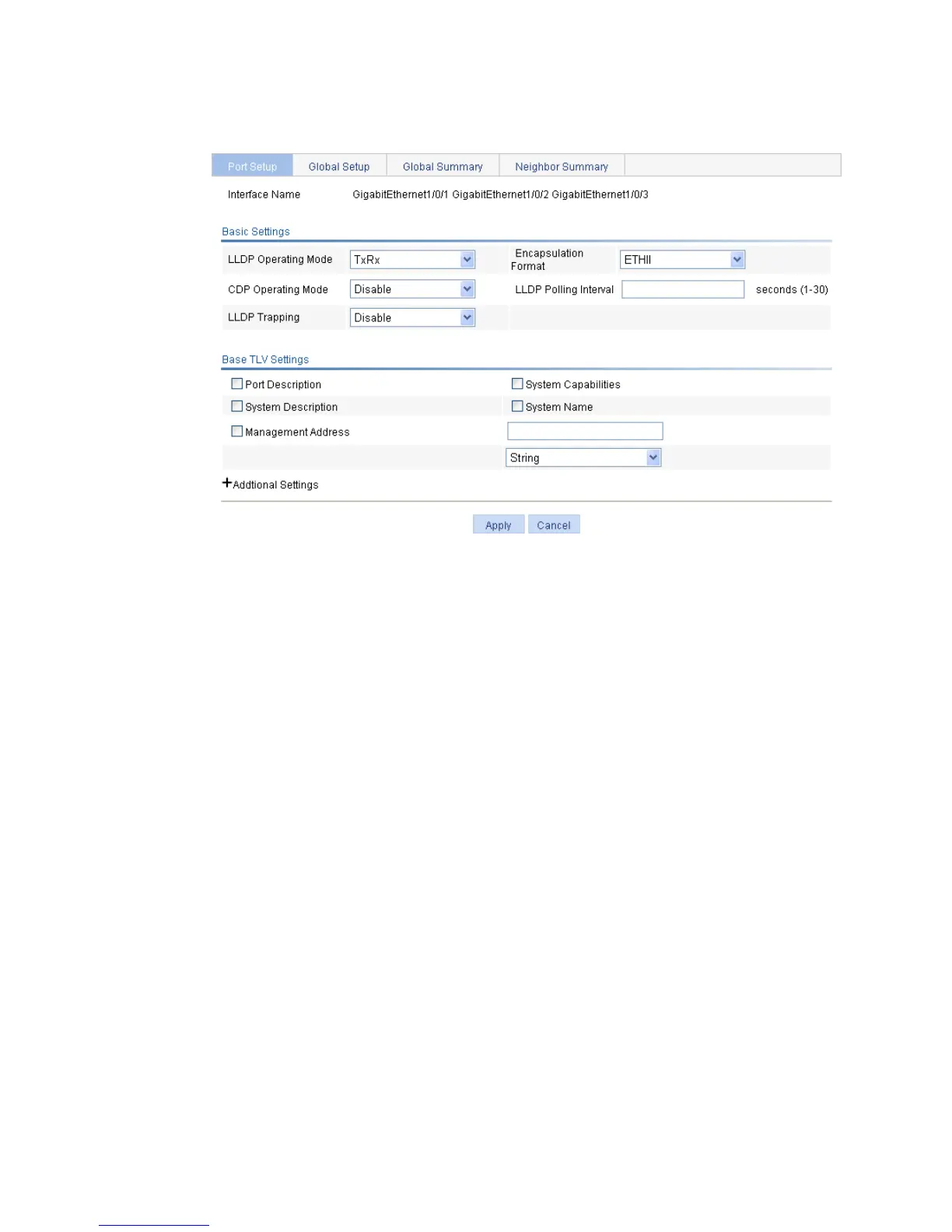

Figure 206 Modifying LLDP settings on ports in batch
4. Set the LLDP settings for these ports as described in Table 76.
5. Click Apply.
A progress dialog box appears.
6. Click Close on the progress dialog box when the progress dialog box prompts that the
configuration succeeds.
Configuring LLDP globally
1. Select Network > LLDP from the navigation tree.
2. Click the Global Setup tab.
