Configuration procedure
Configuring Router A
Enable IP multicast routing, enable PIM-DM on each interface, and enable IGMP on Ethernet 1/1.
(Details not shown.)
Configuring Switch A
1. Create VLAN 100:
a. Select Network > VLAN from the navigation tree.
b. Click the Create tab.
c. Enter 100 as the VLAN ID.
d. Click Apply.

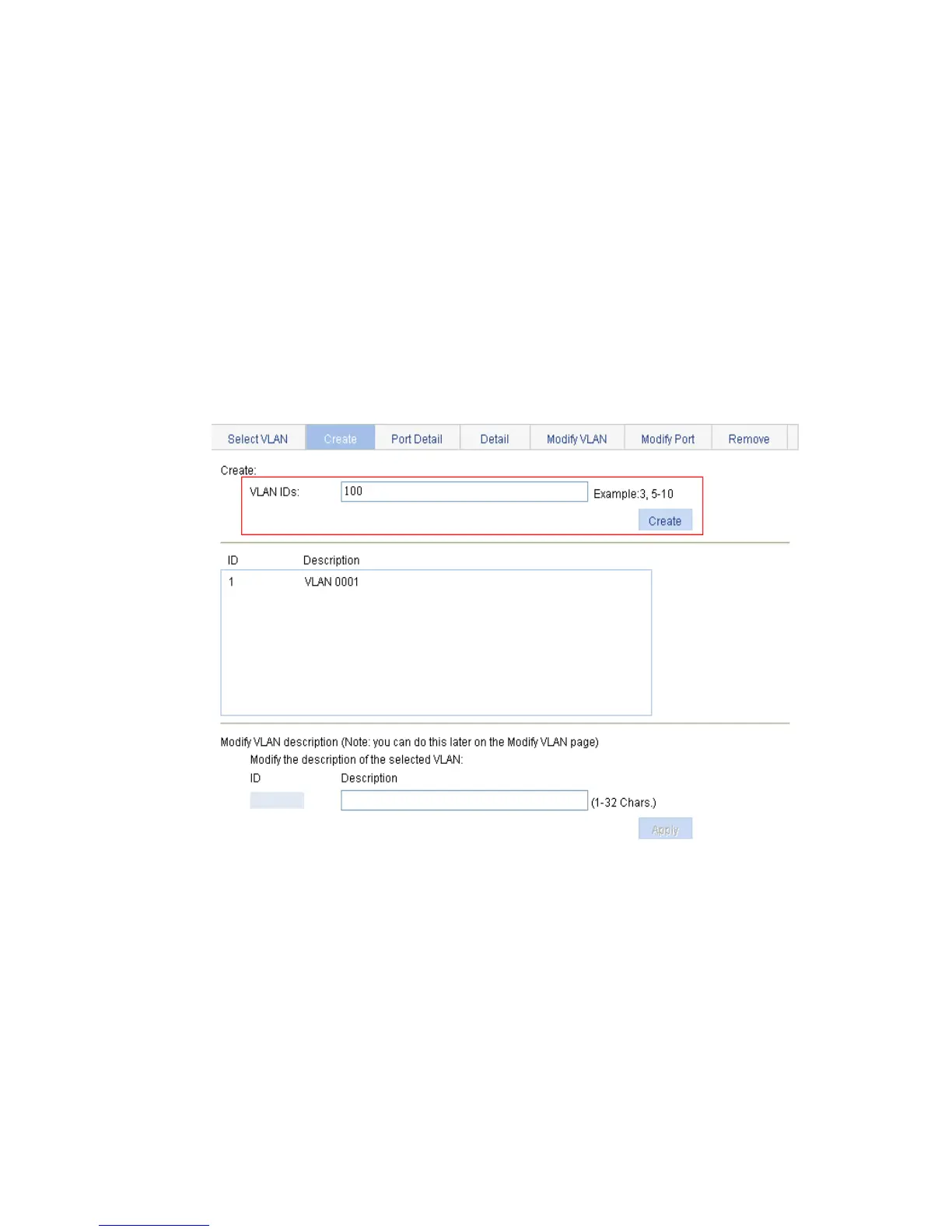

Figure 248 Creating VLAN 100
2. Assign GigabitEthernet 1/0/1 through GigabitEthernet 1/0/3 to VLAN 100:
a. Click the Modify Port tab.
b. Select GigabitEthernet 1/0/1, GigabitEthernet 1/0/2, and GigabitEthernet 1/0/3 in the
Select Ports field.
c. Select Untagged for Select membership type.
d. Enter 100 as the VLAN ID.
e. Click Apply.
