HP 1910 User Manual

179
Verifying the configuration
1. When the preceding configurations are completed, the OUI Summary tab is displayed by default,
as shown in Figure 164. You
can view the information about the newly-added OUI address.

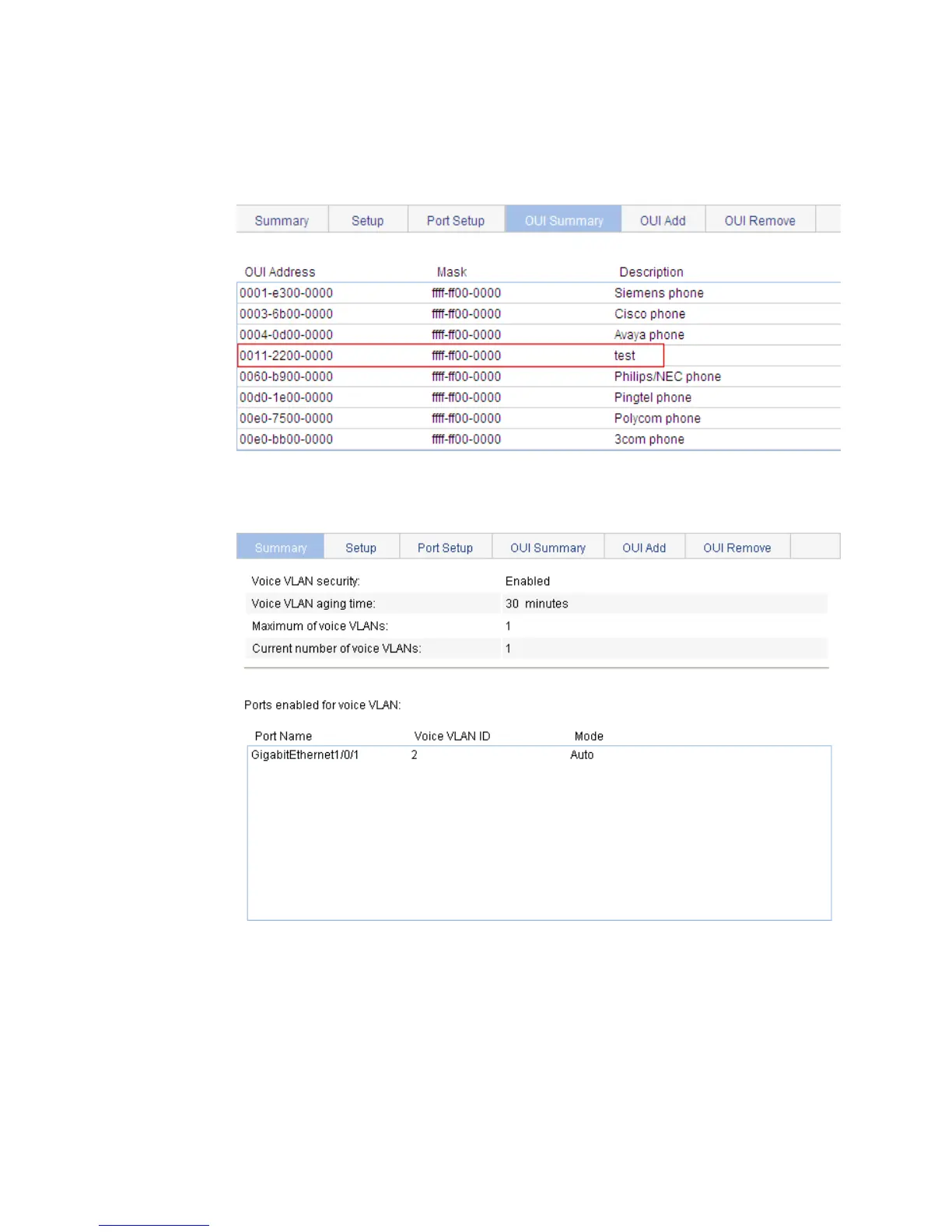

Figure 164 Displaying the current OUI list of the device
2. Click the Summary tab, where you can view the current voice VLAN information.
Figure 165 Displaying voice VLAN information
Configuring a voice VLAN on a port in manual voice VLAN
assignment mode
Network requirements
As shown in Figure 166:
• Configure VLAN 2 as a voice VLAN that carries only voice traffic.

HP 1910 Specifications

General

Model	HP 1910
Category	Switch
Port Type	10/100/1000BASE-T
Layer	Layer 2
PoE Support	No
MAC Address Table Size	8K entries
VLAN Support	Yes
Management	Web-based GUI
Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Jumbo Frame Support	Yes
Ports	24
