180
• The IP phone connected to hybrid port GigabitEthernet 1/0/1 sends untagged voice traffic.
• GigabitEthernet 1/0/1 operates in manual voice VLAN assignment mode and allows voice
packets whose source MAC addresses match the OUI addresses specified by OUI address
0011-2200-0000 and mask ffff-ff00-0000 to pass through. The description of the OUI address entry
is test.

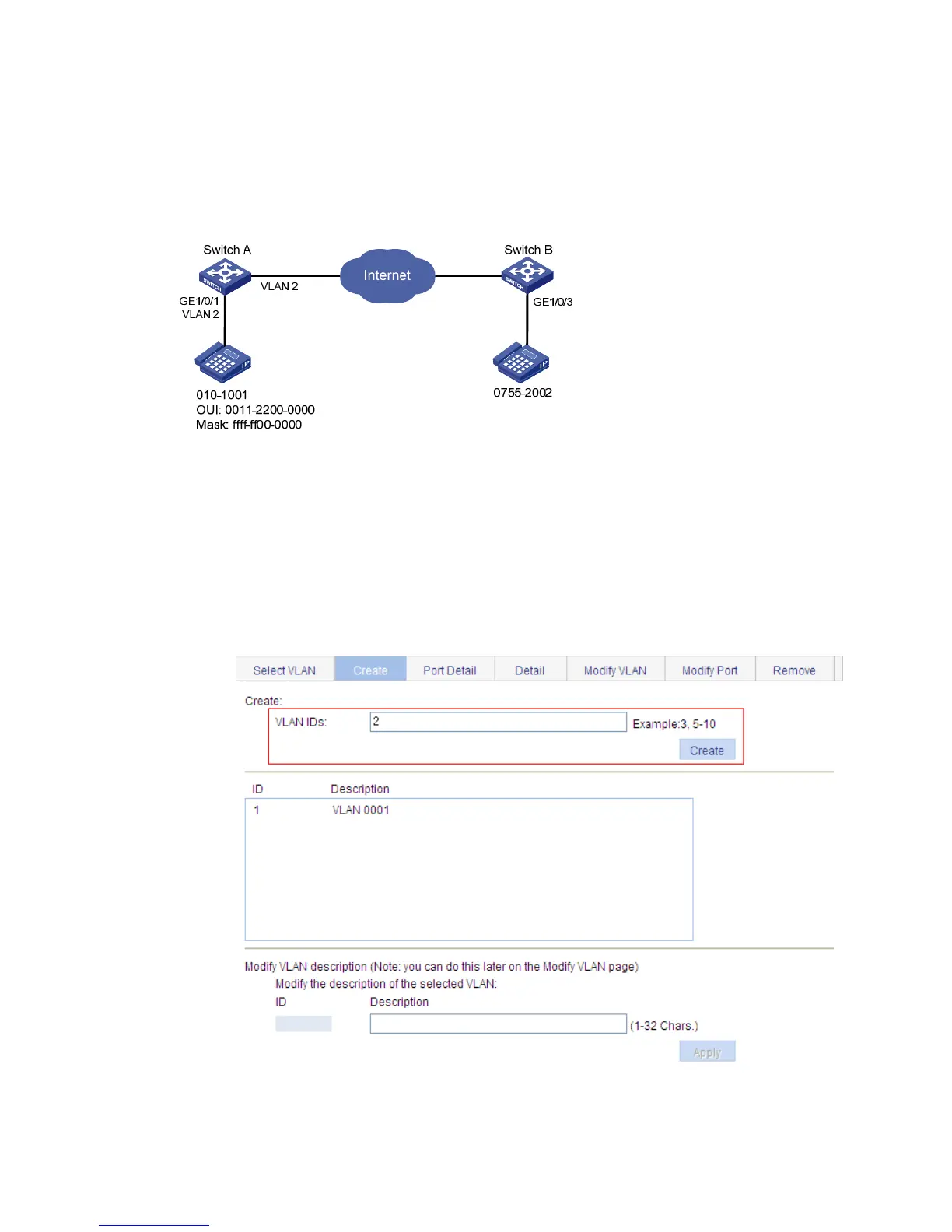

Figure 166 Network diagram
Configuring Switch A
1. Create VLAN 2:
a. Select Network > VLAN from the navigation tree.
b. Click the Create tab.
c. Enter VLAN ID 2.
d. Click Create.
Figure 167 Creating VLAN 2
2. Configure GigabitEthernet 1/0/1 as a hybrid port and configure its PVID as VLAN 2:
a. Select Device > Port Management from the navigation tree.
