The administrator upgrades the Boot ROM image and the system software image file of the 1910 switch
through the PC and sets the IP address of the switch to 192.168.1.2/24.

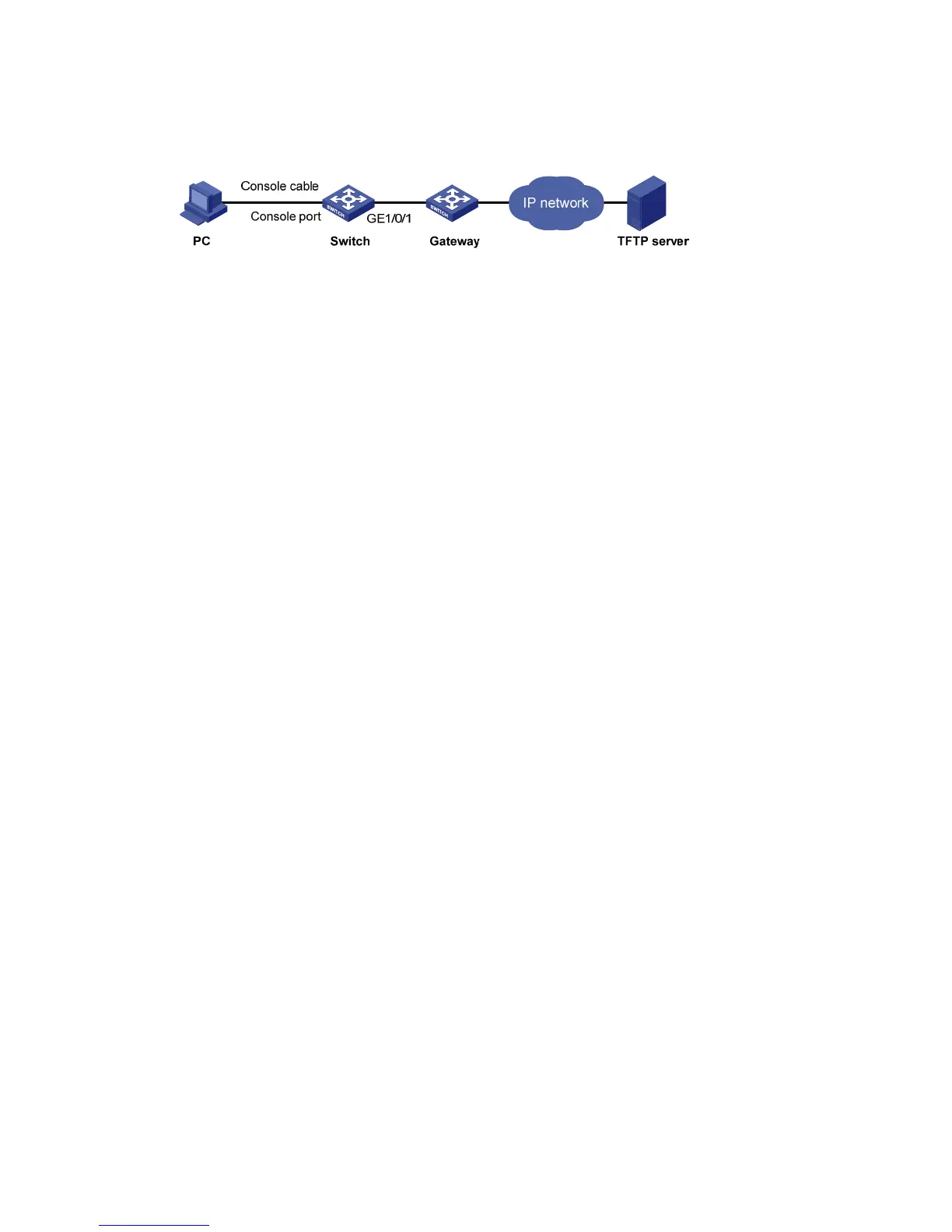

Figure 23 Network diagram
Configuration procedure
1. Run the TFTP server program on the TFTP server, and specify the path of the file to be loaded.
(Omitted)
2. Configure the switch:
# Configure the IP address of VLAN-interface 1 of the switch as 192.168.1.2/24, and specify the
default gateway as 192.168.1.1.
<Switch> ipsetup ip-address 192.168.1.2 24 default-gateway 192.168.1.1
# Download the software package file Switch1910.bin on the TFTP server to the switch, and
upgrade the system software image in the package.
<Switch> upgrade 192.168.10.1 Switch1910.bin runtime
File will be transferred in binary mode
Downloading file from remote TFTP server, please wait.../
TFTP: 10262144 bytes received in 71 second(s)
File downloaded successfully.
# Download the software package file Switch1910.bin on the TFTP server to the switch, and
upgrade the Boot ROM image.
<Switch> upgrade 192.168.10.1 Switch1910.bin bootrom
The file flash:/Switch1910.bin exists. Overwrite it? [Y/N]:y
Verifying server file...
Deleting the old file, please wait...
File will be transferred in binary mode
Downloading file from remote TFTP server, please wait.../
TFTP: 10262144 bytes received in 61 second(s)
File downloaded successfully.
BootRom file updating finished!
# Reboot the switch.
<Switch> reboot
After getting the new image file, reboot the switch to validate the upgraded image.

HP 1910 Specifications

General

Model	HP 1910
Category	Switch
Port Type	10/100/1000BASE-T
Layer	Layer 2
PoE Support	No
MAC Address Table Size	8K entries
VLAN Support	Yes
Management	Web-based GUI
Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Jumbo Frame Support	Yes
Ports	24
