HP 1910 User Manual

112
Configuring an alarm entry
1. Select Device > RMON from the navigation tree.
2. Click the Alarm tab.

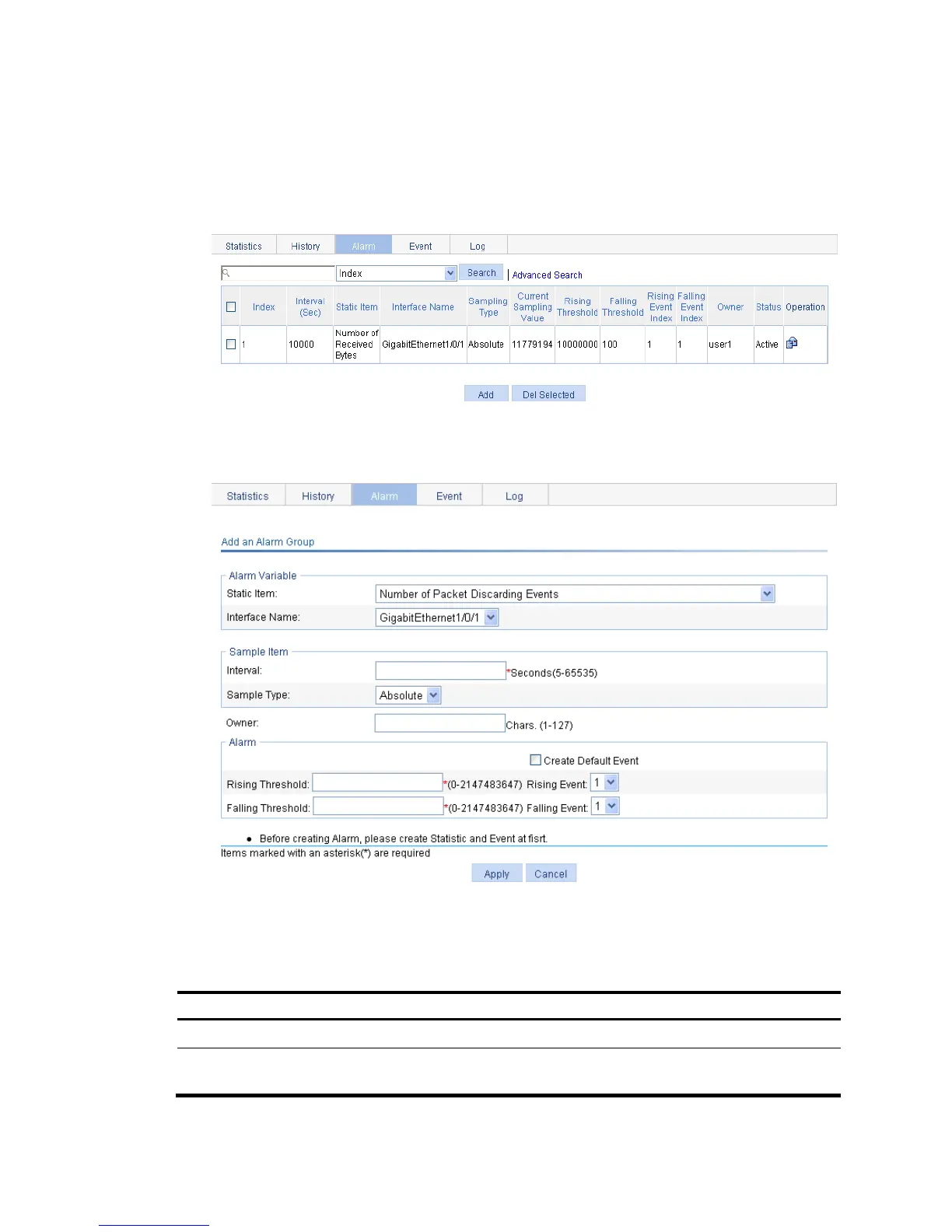

Figure 92 Alarm tab
3. Click Add.
Figure 93 Adding an alarm entry
4. Configure an alarm entry as described in Table 27.
5. Click Apply.
Table 27 Configuration items
Item Descri
p
tion
Alarm variable:
Static Item
Set the traffic statistics that will be collected and monitored, see Table 28 for
details.

HP 1910 Specifications

General

Model	HP 1910
Category	Switch
Port Type	10/100/1000BASE-T
Layer	Layer 2
PoE Support	No
MAC Address Table Size	8K entries
VLAN Support	Yes
Management	Web-based GUI
Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Jumbo Frame Support	Yes
Ports	24
