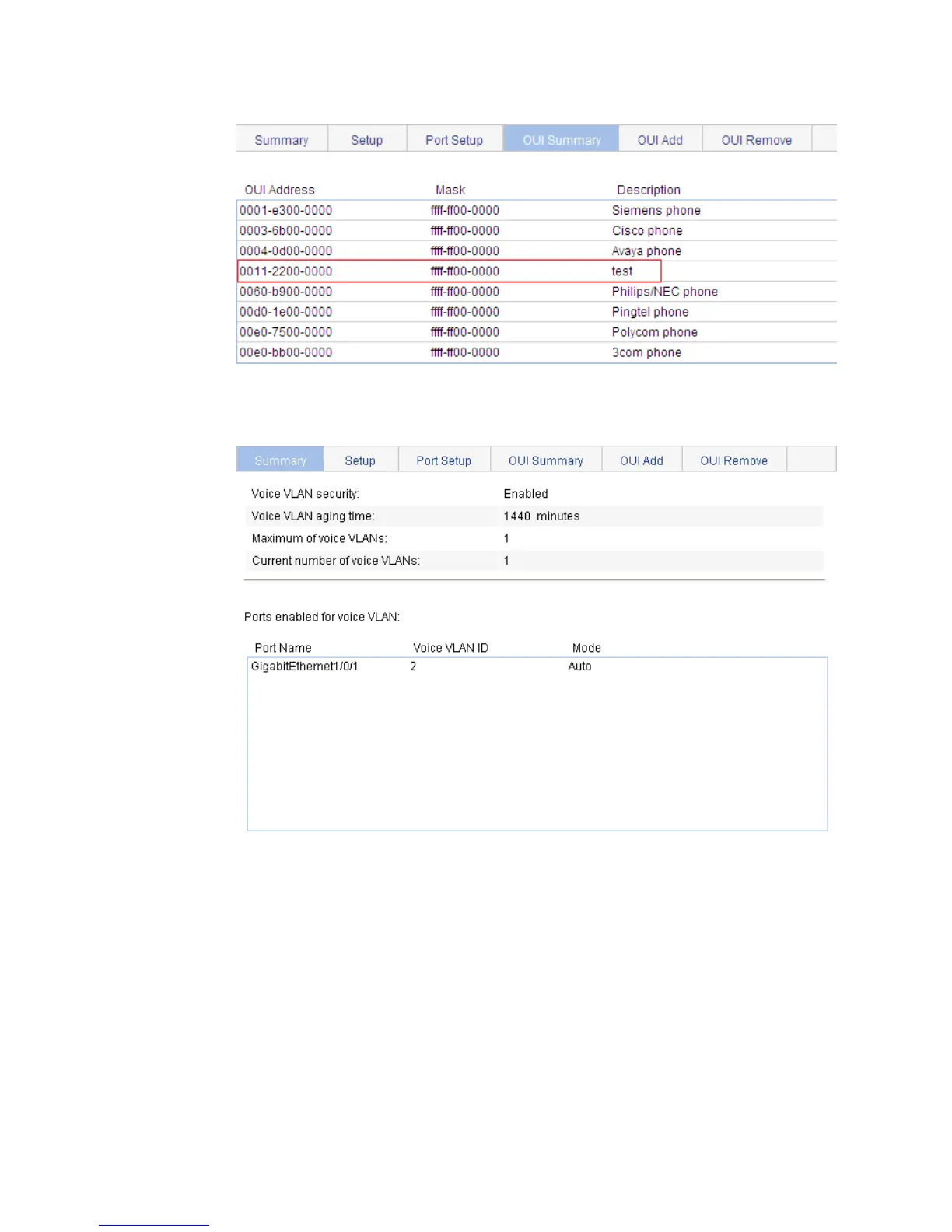

Figure 172 Displaying the current OUI list of the device
2. Click the Summary tab, where you can view the current voice VLAN information.
Figure 173 Displaying the current voice VLAN information
Configuration guidelines
When you configure the voice VLAN function, follow these guidelines:
• To remove a VLAN functioning as a voice VLAN, disable its voice VLAN function first.
• Only one VLAN is supported and only an existing static VLAN can be configured as the voice
VLAN.
• Do not enable the voice VLAN function on a link aggregation group member port.
• After you assign a port operating in manual voice VLAN assignment mode to the voice VLAN, the
voice VLAN takes effect.
