Local port mirroring configuration example
Network requirements
As shown in Figure 71, configure local port mirroring on Switch A so the server can monitor the packets
received and sent by the Marketing department and Technical department.

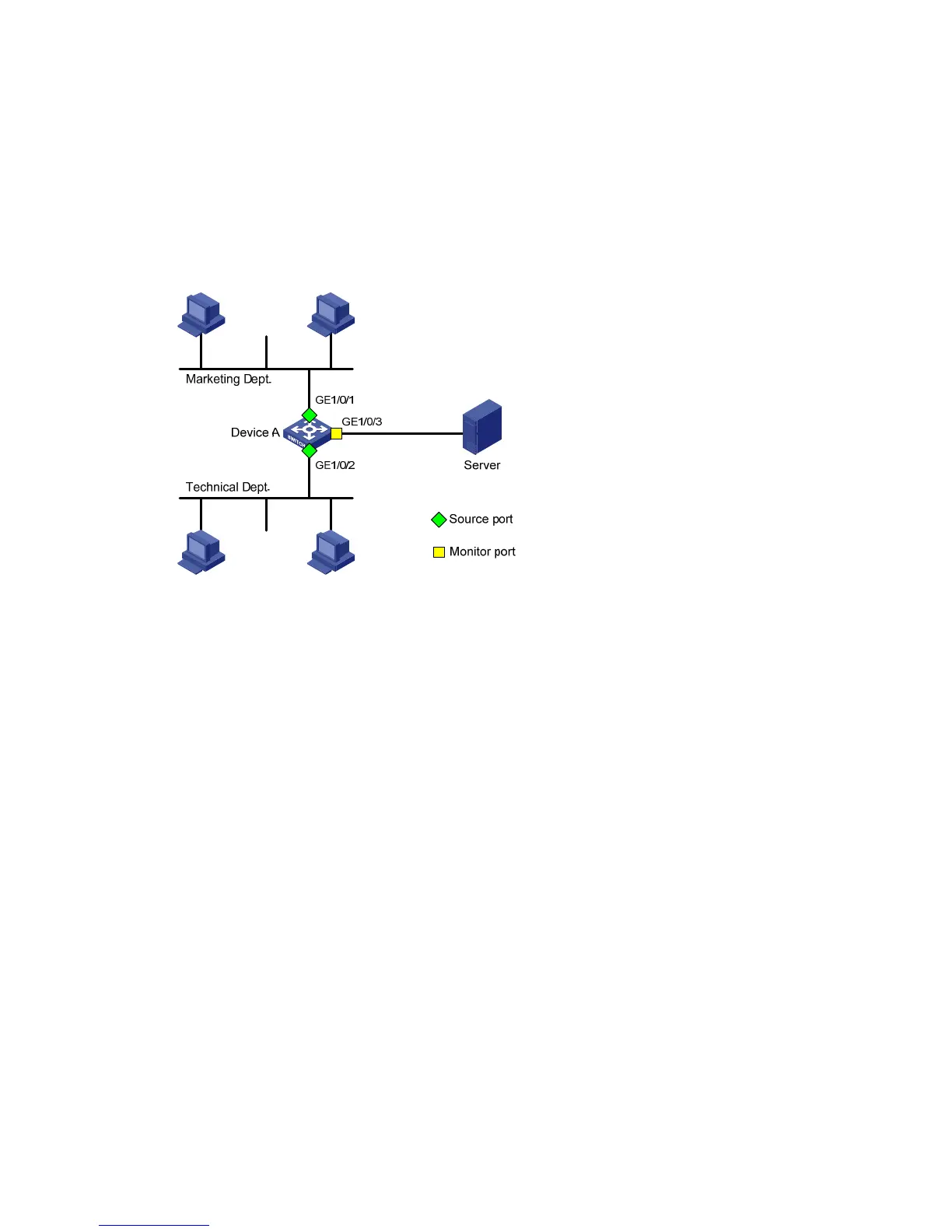

Figure 71 Network diagram
Configuration procedure
Adding a local mirroring group
1. From the navigation tree, select Device > Port Mirroring.
2. Click Add to enter the page for adding mirroring groups as shown in Figure 72.
