HP 1910 User Manual

91

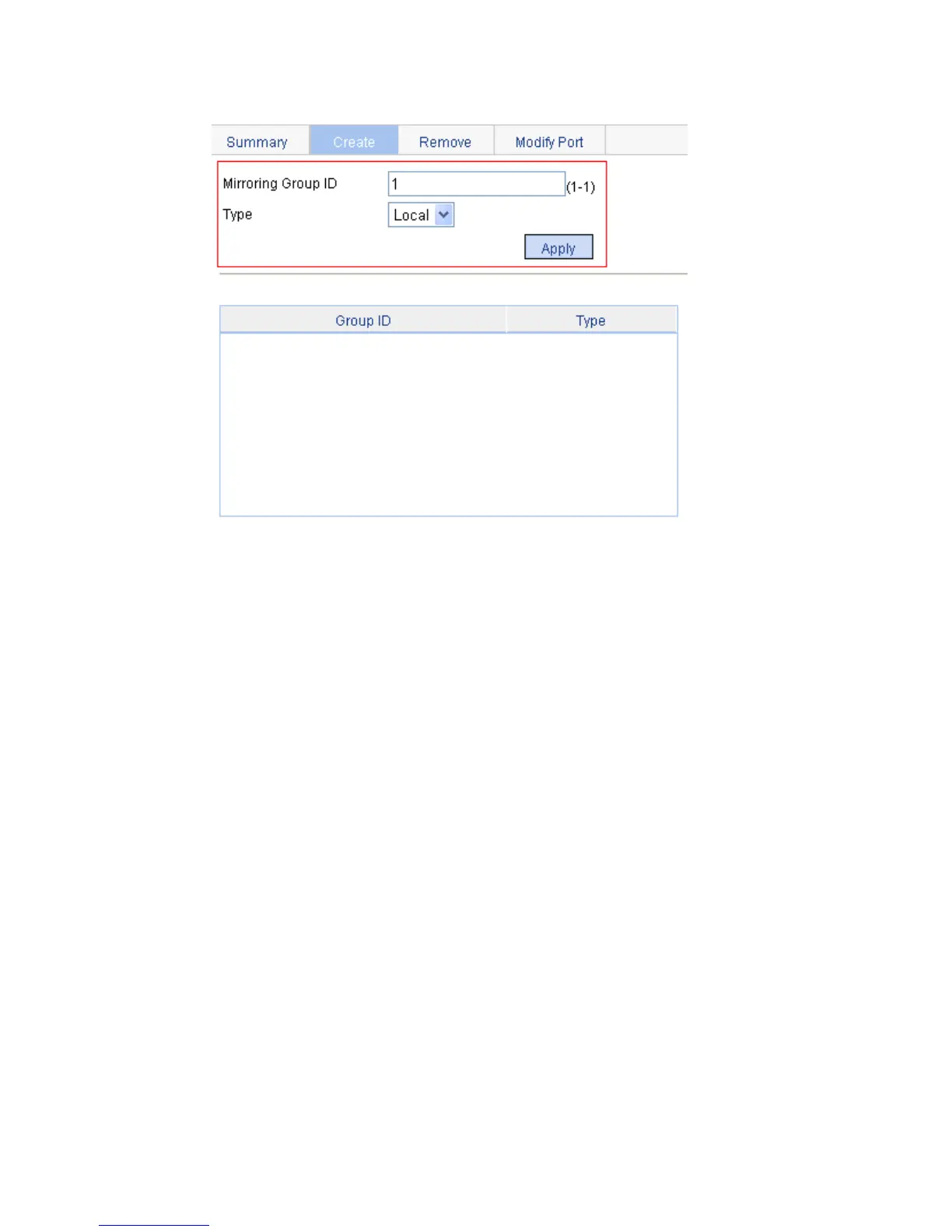

Figure 72 Adding a local mirroring group
3. Enter 1 for Mirroring Group ID, and select Local from the Type list.
4. Click Apply.
Configuring GigabitEthernet 1/0/1 and GigabitEthernet 1/0/2 as the source ports
1. Click Modify Port.
2. Select 1 – Local from the Mirroring Group ID list.
3. Select Mirror Port from the Port Type list.
4. Select both from the Stream Orientation list.
5. Select 1 (GigabitEthernet 1/0/1) and 2 (GigabitEthernet 1/0/2) on the chassis front panel.

HP 1910 Specifications

General

Model	HP 1910
Category	Switch
Port Type	10/100/1000BASE-T
Layer	Layer 2
PoE Support	No
MAC Address Table Size	8K entries
VLAN Support	Yes
Management	Web-based GUI
Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Jumbo Frame Support	Yes
Ports	24
