HP 1910 User Manual

92

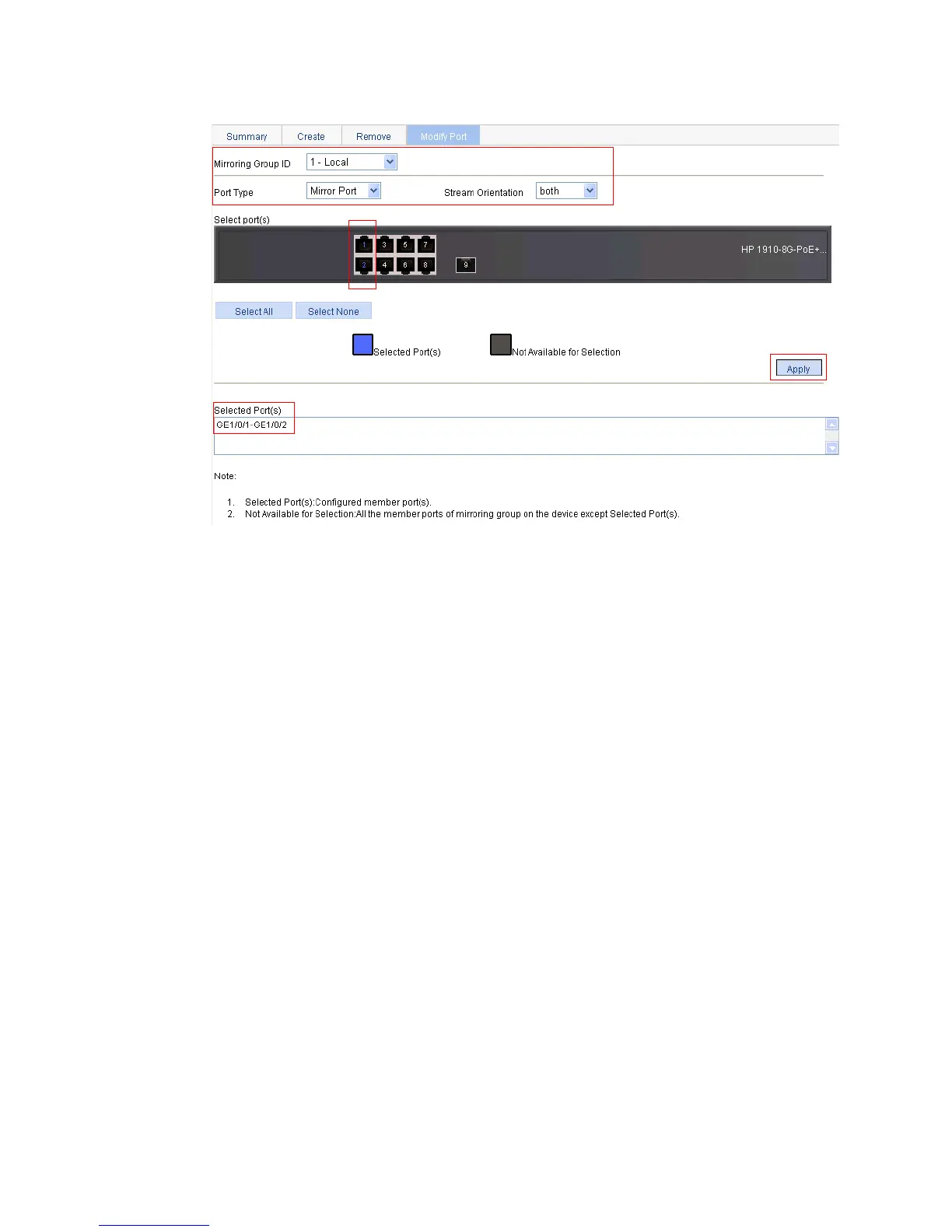

Figure 73 Configuring the mirroring ports
6. Click Apply.
A configuration progress dialog box appears.
7. After the success notification appears, click Close.
Configuring GigabitEthernet 1/0/3 as the monitor port
1. Click Modify Port.
2. Select 1 – Local from the Mirroring Group ID list.
3. Select Monitor Port from the Port Type list.
4. Select 3 (GigabitEthernet 1/0/3) on the chassis front panel.

HP 1910 Specifications

General

Model	HP 1910
Category	Switch
Port Type	10/100/1000BASE-T
Layer	Layer 2
PoE Support	No
MAC Address Table Size	8K entries
VLAN Support	Yes
Management	Web-based GUI
Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Jumbo Frame Support	Yes
Ports	24
