258

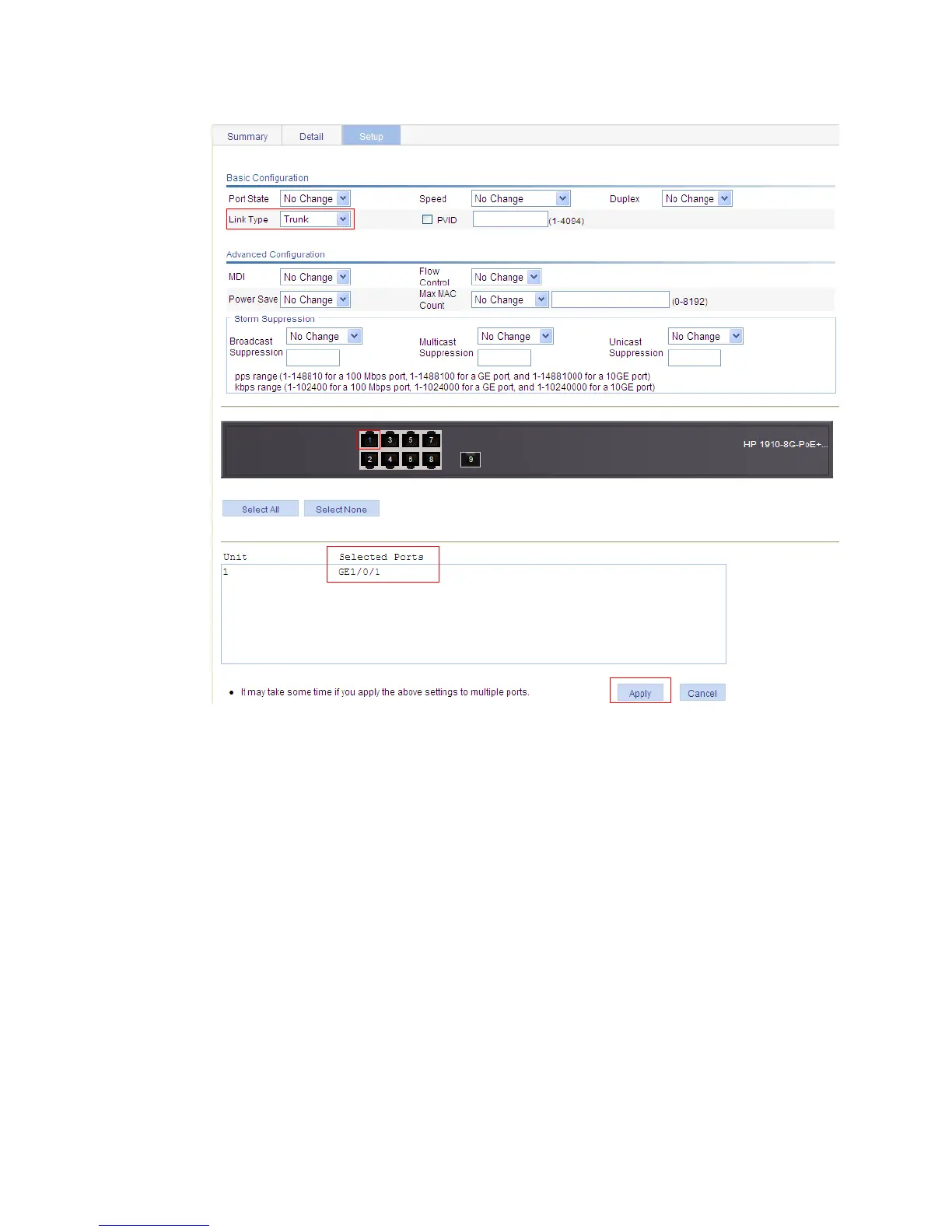

Figure 224 Configuring ports
3. Configure the voice VLAN function on the two ports:
a. Select Network > Voice VLAN from the navigation tree.
b. Click the Port Setup tab to enter the page for configuring the voice VLAN function on ports.
c. Select Auto in the Voice VLAN port mode list, select Enable in the Voice VLAN port state list,
enter the voice VLAN ID 2, and select port GigabitEthernet 1/0/1 and GigabitEthernet 1/0/2
from the chassis front panel.
d. Click Apply.
