HP 1910 User Manual

260

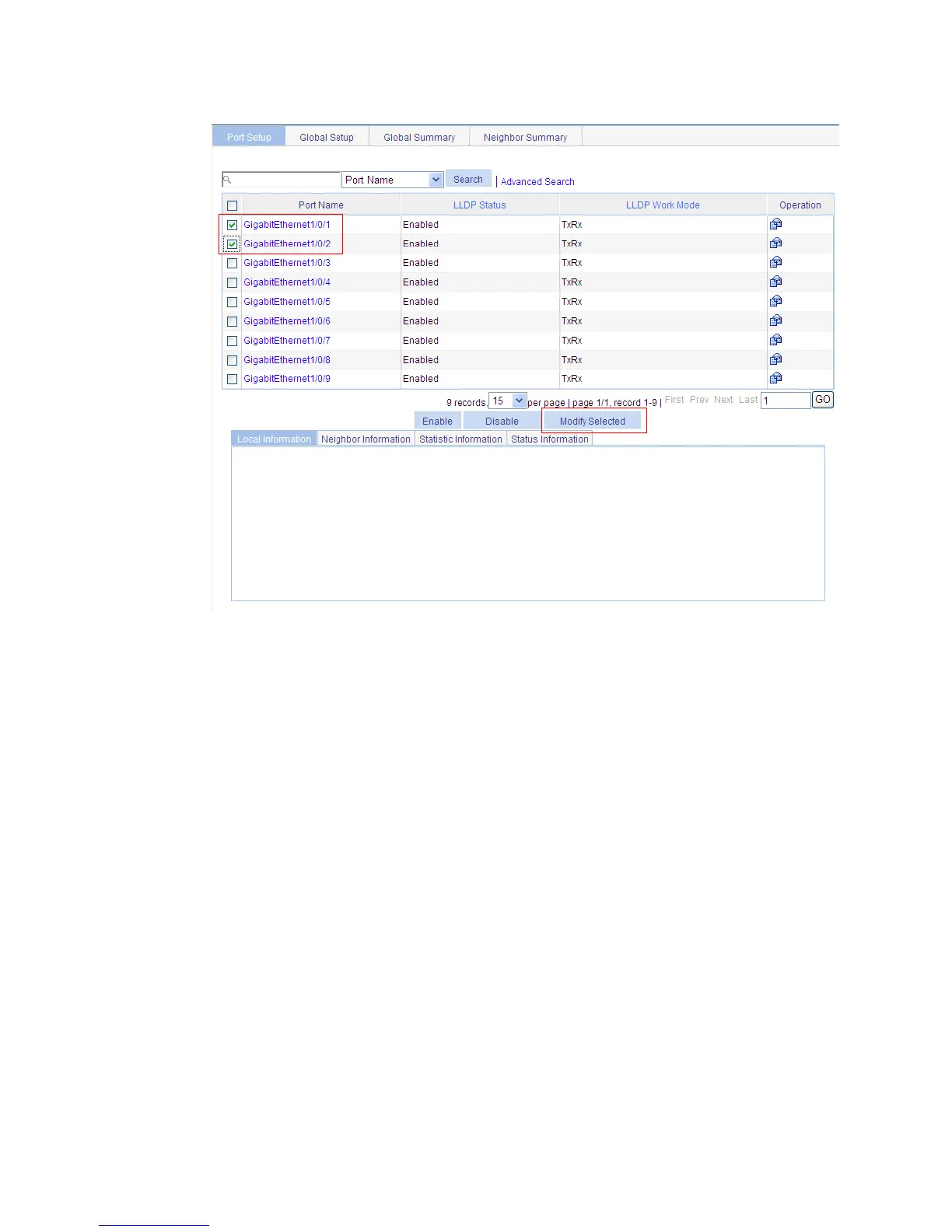

Figure 226 Selecting ports
d. Select TxRx from the LLDP Operating Mode list, and select TxRx from the CDP Operating Mode
list.
e. Click Apply.
A progress dialog box appears.
f. Click Close on the progress dialog box when the progress dialog box prompts that the
configuration succeeds.

HP 1910 Specifications

General

Model	HP 1910
Category	Switch
Port Type	10/100/1000BASE-T
Layer	Layer 2
PoE Support	No
MAC Address Table Size	8K entries
VLAN Support	Yes
Management	Web-based GUI
Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Jumbo Frame Support	Yes
Ports	24
