308

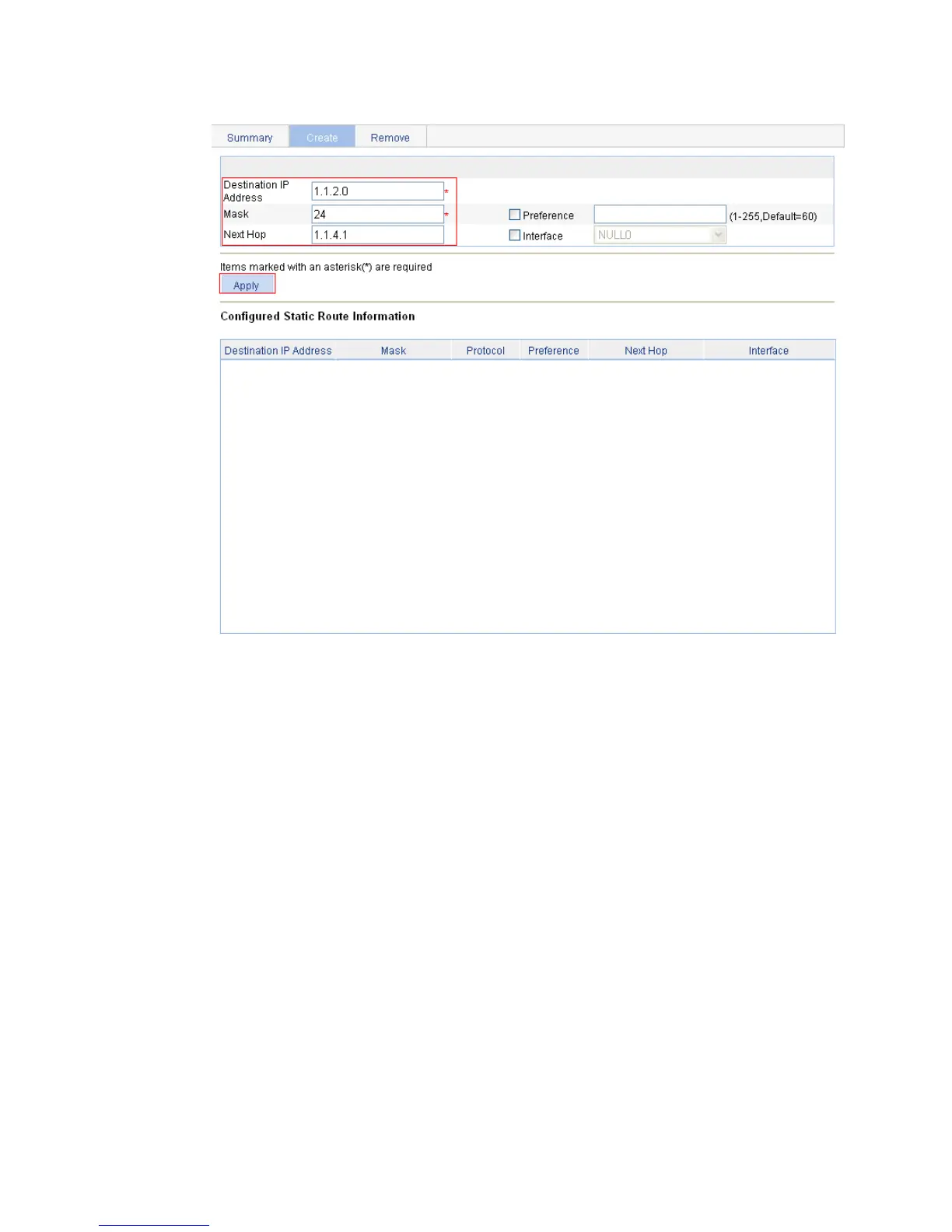

Figure 274 Configuring a static route
e. Enter 1.1.3.0 for Destination IP Address, enter 24 for Mask, and enter 1.1.5.6 for Next Hop.
f. Click Apply.
3. Configure a default route to Switch B on Switch C:
a. Select Network > IPv4 Routing from the navigation tree of Switch C.
b. Click the Create tab.
c. Enter 0.0.0.0 for Destination IP Address, 0 for Mask, and 1.1.5.5 for Next Hop.
d. Click Apply.
