HP 1910 User Manual

311

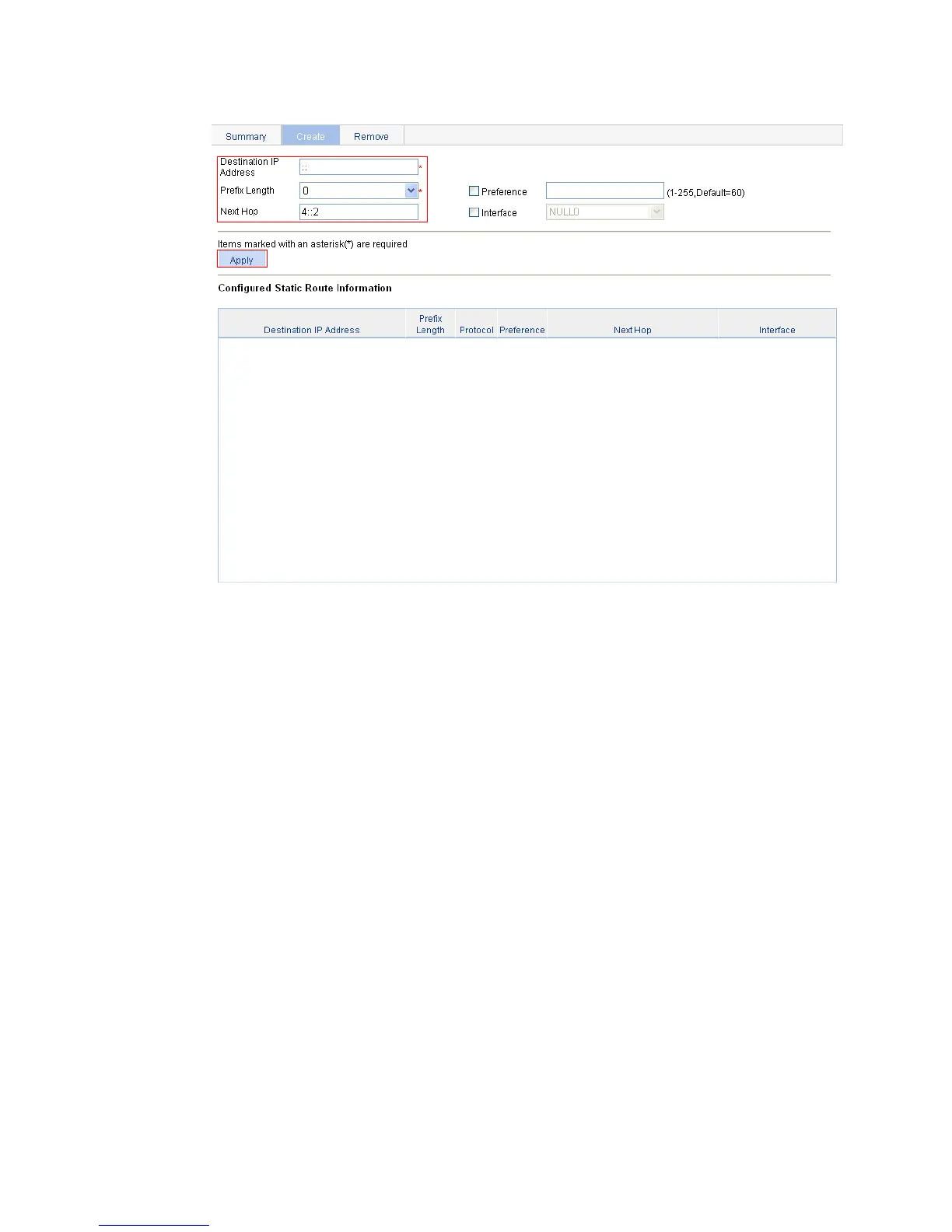

Figure 277 Configuring a default route
2. Configure a static route to Switch A and Switch C on Switch B:
a. Select Network > IPv6 Routing from the navigation tree of Switch B.
b. Click the Create tab.
The page for configuring a static route appears.
c. Enter 1:: for Destination IP Address, select 64 from the Prefix Length list, and enter 4::1 for Next
Hop.
d. Click Apply.

HP 1910 Specifications

General

Model	HP 1910
Category	Switch
Port Type	10/100/1000BASE-T
Layer	Layer 2
PoE Support	No
MAC Address Table Size	8K entries
VLAN Support	Yes
Management	Web-based GUI
Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Jumbo Frame Support	Yes
Ports	24
